High-Temperature UV Flame Detector

High-Temperature UV Flame Detector
2Pages

Catalog excerpts

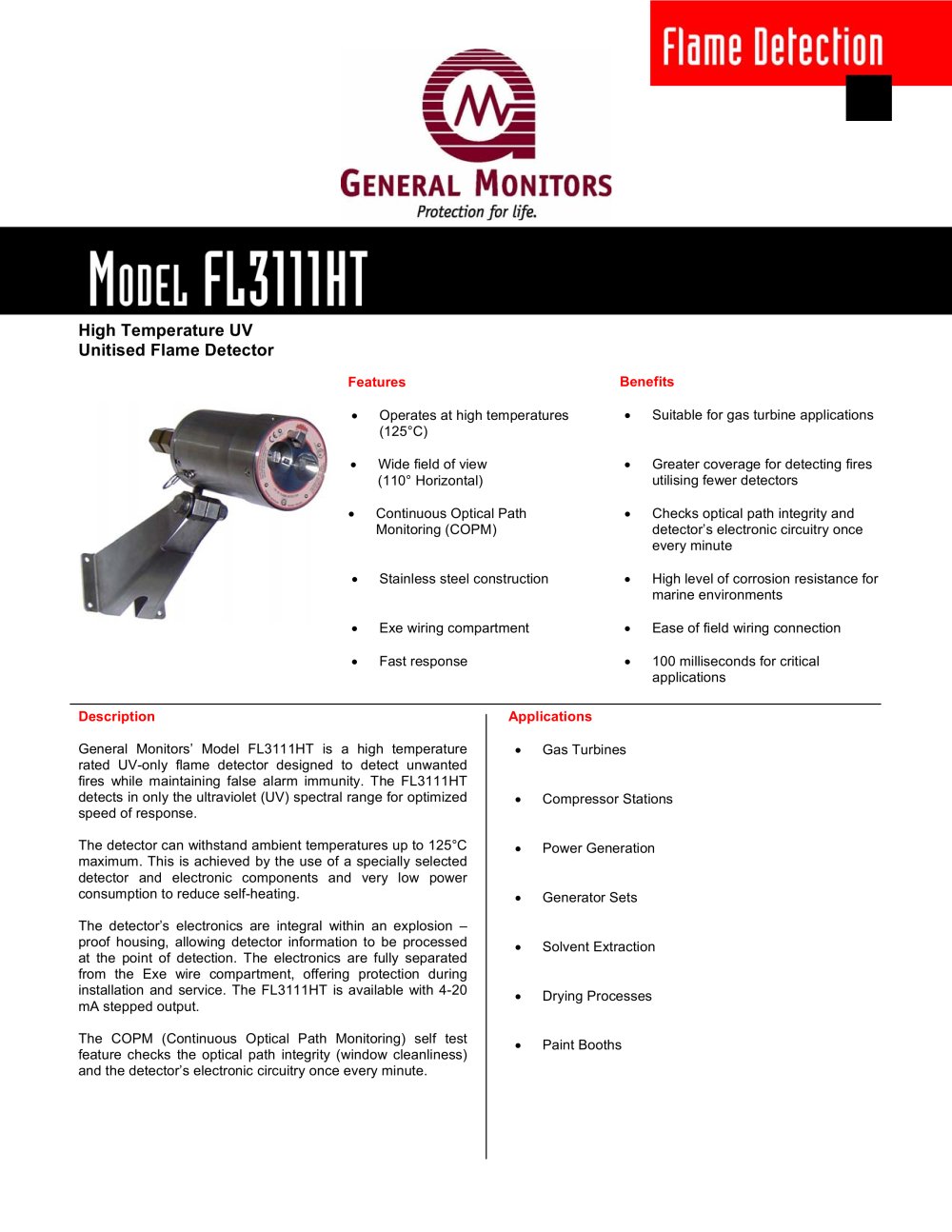

Features Benefits Operates at high temperatures (125C) Suitable for gas turbine applications Wide field of view (110а Horizontal) Greater coverage for detecting fires utilising fewer detectors Continuous Optical Path Monitoring (COPM) Checks optical path integrity and detectors electronic circuitry once every minute Stainless steel construction High level of corrosion resistance for marine environments Exe wiring compartment Ease of field wiring connection Fast response 100 milliseconds for critical applications Description Applications General MonitorsҒ Model FL3111HT is a high temperature rated UV-only flame detector designed to detect unwanted fires while maintaining false alarm immunity. The FL3111HT detects in only the ultraviolet (UV) spectral range for optimized speed of response. The detector can withstand ambient temperatures up to 125C maximum. This is achieved by the use of a specially selected detector and electronic components and very low power consumption to reduce self-heating. The detectorВs electronics are integral within an explosion proof housing, allowing detector information to be processed at the point of detection. The electronics are fully separated from the Exe wire compartment, offering protection during installation and service. The FL3111HT is available with 4-20 mA stepped output. The COPM (Continuous Optical Path Monitoring) self test feature checks the optical path integrity (window cleanliness) and the detector֒s electronic circuitry once every minute. Gas Turbines Compressor Stations Power Generation Generator Sets Solvent Extraction Drying Processes Paint Booths >

Open the catalog to page 1

Wave Lengths: 185 to 260 nm Input Power: 20-36 VDC 24 VDC @ 60 mA typ / 85 mA max. Field of View: 110 horizontal 115а vertical Analogue Signal: 4-20 mA (350 Ohms max.) Sensitivity: Approved performance specifications 15.2 m Fault Signal: 0 mA ( 50 ft) distance for a 1 sq. ft. (0.092 m COPM Fault: 2.0 ֱ 0.4 mA > 2 ) N-heptane fire. Ready Signal: 4.0 0.4 mA WARN Signal: 16.0 ѱ 0.4 mA ALARM Signal: 20.0 0.4 mA Typical Response Time: > Minimum Sensor Response Time: Sensitivity: 100%, 75%, 50% Alarm Time Delay: 2, 4, 8 or 10 seconds 26776 Simpatica Circle Lake Forest, California 92630 Tel:...
