Product catalog summary

Overview: General Air Products' SAO Series Oil Water Separators are designed to address issues related to oily condensate discharge from compressed air systems. These separators help mitigate legal and financial risks, reduce offsite disposal costs, and ensure compliance with environmental standards.

Problem Statement: The document outlines several challenges faced by users of compressed air systems, including high disposal costs, non-compliance with environmental standards, and operational inefficiencies due to varying pressures and condensate loads.

Solution: The SAO Series Oil Water Separators offer a comprehensive solution with features such as simple service, environmental protection, easy installation, reliable operation across various conditions, and low operating costs. The system includes a triple-layer filter cartridge suitable for modern compressors and lubricants.

Technical Data: The document provides a model selection chart based on compressor type and horsepower, detailing the appropriate SAO model for each scenario. It also includes specifications for tank capacity, filling capacity, shipping weight, and pricing for each model.

Model Specifications: Detailed specifications are provided for models SAO-QP20, SAO-QP40, SAO-QP100, SAO-QP200, SAO-QP300, and SAO-QP400. Each model is designed for specific compressor horsepower ranges and includes features like rotationally-molded housing, patented pressure-relief chambers, and integrated exhaust filters.

Accessories: The document describes accessories such as the Manifold Inlet Adapter and Flow Dispersion Valve, which facilitate the connection of multiple units and enhance operational efficiency.

Key Features: The SAO Series includes features like a self-aligning, two-stage filter cartridge, inlet and outlet ports, and a flow dispersion valve. The system is designed for easy connection and maintenance, with a focus on minimizing environmental impact and operational costs.

Catalog excerpts

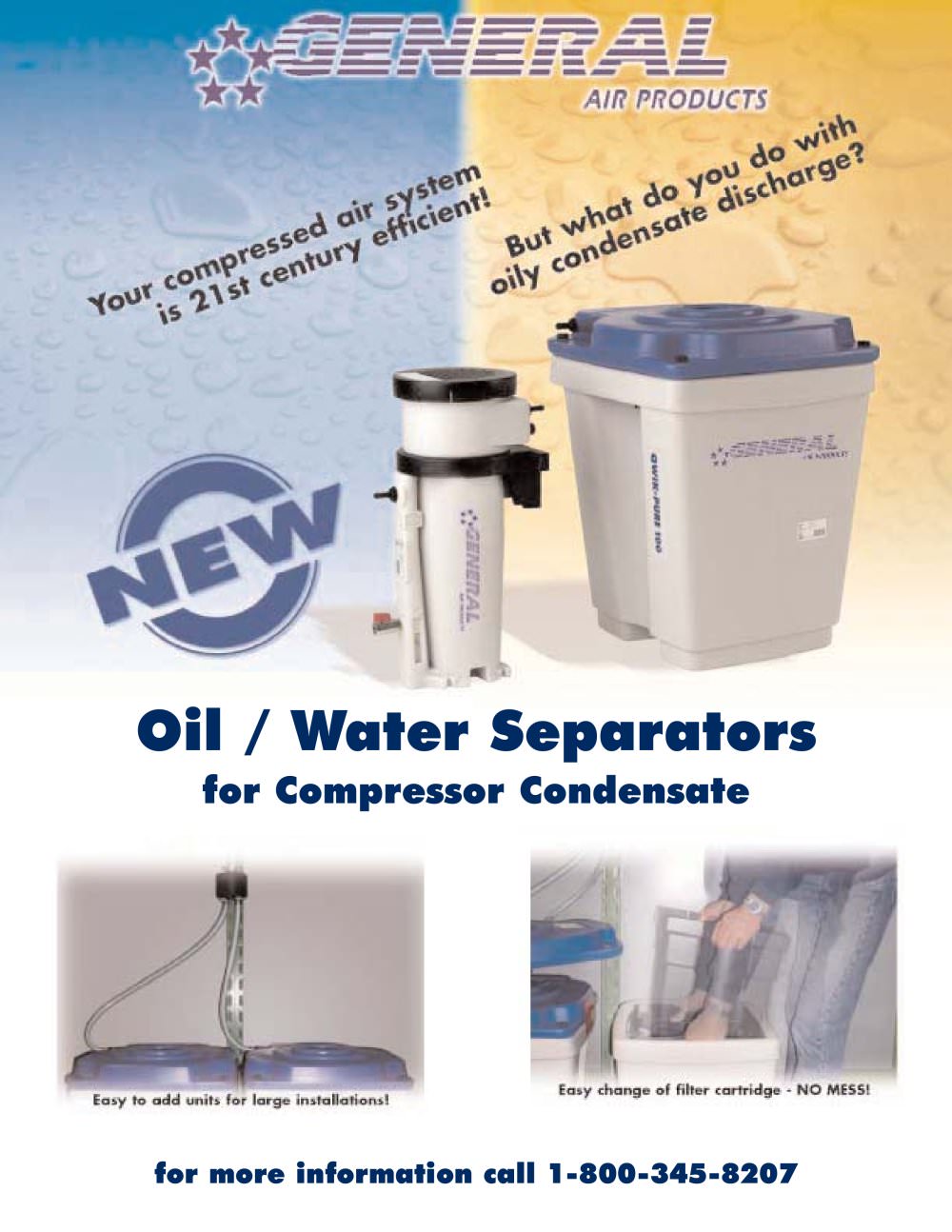

Oil / Water Separators for Compressor Condensate for more information call 1-800-345-8207

Open the catalog to page 1

General Air Products’ SAO Series Oil Water Separators Problem: You’ve got the latest, greatest compressed air system, but what do you do with oily condensate discharge when... ...non-treatment carries high legal and financial risks ...offsite disposal costs keep going up ...your existing site disposal is not meeting current environmental standards ...new lubricants form stable emulsions not suitable to your current separator ...your system is messy (periodic clogs, spills, leaks); unreliable or undersized ...regular adjustments are required which are time-consuming without available staff ...varying...

Open the catalog to page 2

1-800-345-8207 www.GeneralAirProducts.com Oil Water Separator Spec Sheet Model Number: SAO-QP20 for use with fractional horsepower to 20 HP compressor systems Dimensions Description Provides efficient oil-water separation of oil-contaminated compressed air condensate and condensate emulsion. Engineered with adaptability in mind, the QWIK PURE offers multiple installation possibilities to suit nearly every compressor installation. Featuring a patented pressure relief chamber and optimized multi-layer, combination adsorption filter cartridge. Designed to maximize profitability and efficiency, and...

Open the catalog to page 3

Description Provides efficient oil-water separation of oil-contaminated compressed air condensate and condensate emulsion. Engineered with adaptability in mind, the QWIK PURE offers multiple installation possibilities to suit nearly every compressor installation. Featuring a patented pressure relief chamber and optimized multi-layer, combination adsorption filter cartridge. Designed to maximize profitability and efficiency, and to keep discharged condensate in compliance with federal, state, and local environmental regulations. Characteristics - Rotationally-molded housing made of recyclable...

Open the catalog to page 4

1-800-345-8207 www.GeneralAirProducts.com Oil Water Separator Spec Sheet Model Number: SAO-QP100 for use with 40 HP to 100 HP compressor systems Dimensions Description Provides efficient oil-water separation of oil-contaminated compressed air condensate and condensate emulsion. Engineered with adaptability in mind, the QWIK PURE offers multiple installation possibilities to suit nearly every compressor installation. Featuring a patented pressure relief chamber and optimized multi-layer, combination adsorption filter cartridge. Designed to maximize profitability and efficiency, and to keep discharged...

Open the catalog to page 5

Open the catalog to page 6

Open the catalog to page 7

Open the catalog to page 8

1-800-345-8207 www.GeneralAirProducts.com Oil Water Separator Accessory Spec Sheet Manifold Inlet Adapter for connection of up to 4 drain points. Prepared for wall mounting. Model Number: XZKT11AD1 Dimensions Technical Specifications Input Connection: 3 x 1/2” Outlet Connection: 1 x 1” Weight: 1 lb. Model Number: XZKT11AD1

Open the catalog to page 9

1-800-345-8207 www.GeneralAirProducts.com Oil Water Separator Accessory Spec Sheet Flow Dispersion Valve for parallel operation of up to 4 units Model Number: XZKT11KV1 Dimensions Technical Specifications Top Connection: 1” Splitter Connection: 4 x 1/2” Weight: 4 lb. Model Number: XZKT11KV1 Important Note: Supplied at NO CHARGE on models SAO-QP200, 300 & 400

Open the catalog to page 10
