High Temperature Compressed Air Dryers

Product catalog summary

Overview: The document provides technical specifications and features of General Air Products' HT Series High Inlet Temperature Refrigerated Dryers, designed for handling compressed air with high inlet temperatures.

Key Features:

Handles inlet temperatures up to 180°F without a separate aftercooler or separator.
Maintains a dew point of 33-39°F at nominal flow rates.
Features a balanced design to optimize heat transfer and minimize pressure drop, enhancing energy efficiency.
Equipped with a hot gas bypass valve (models HT150 and up) and an adjustable timer-operated valve for automatic condensate removal.
Uses environmentally friendly refrigerant and includes a dew point indicator.
Comes with a 1-year warranty.

Technical Specifications:

Standard units range from 31 to 378 CFM.
Models vary in maximum rated air flow, connection size, standard voltage, dimensions, and weight.
Operating pressure ranges from 58 to 188 PSIG, with inlet temperatures between 50ºF and 180ºF.
Pressure drop is less than 5 psi.
All units include a timed solenoid drain valve, with hot gas bypass valves on models HT150-400.

Correction Factors:

Correction factors are provided for inlet pressure, ambient temperature, air inlet temperature, and dew point to adjust dryer capacity under varying conditions.
Standard conditions are 100 PSI inlet, 150ºF inlet temperature, 100ºF ambient temperature, and 37ºF dew point.

Contact Information: For more details, customers are encouraged to call 1-800-345-8207 or visit the website www.GENERALAIRPRODUCTS.com.

Catalog excerpts

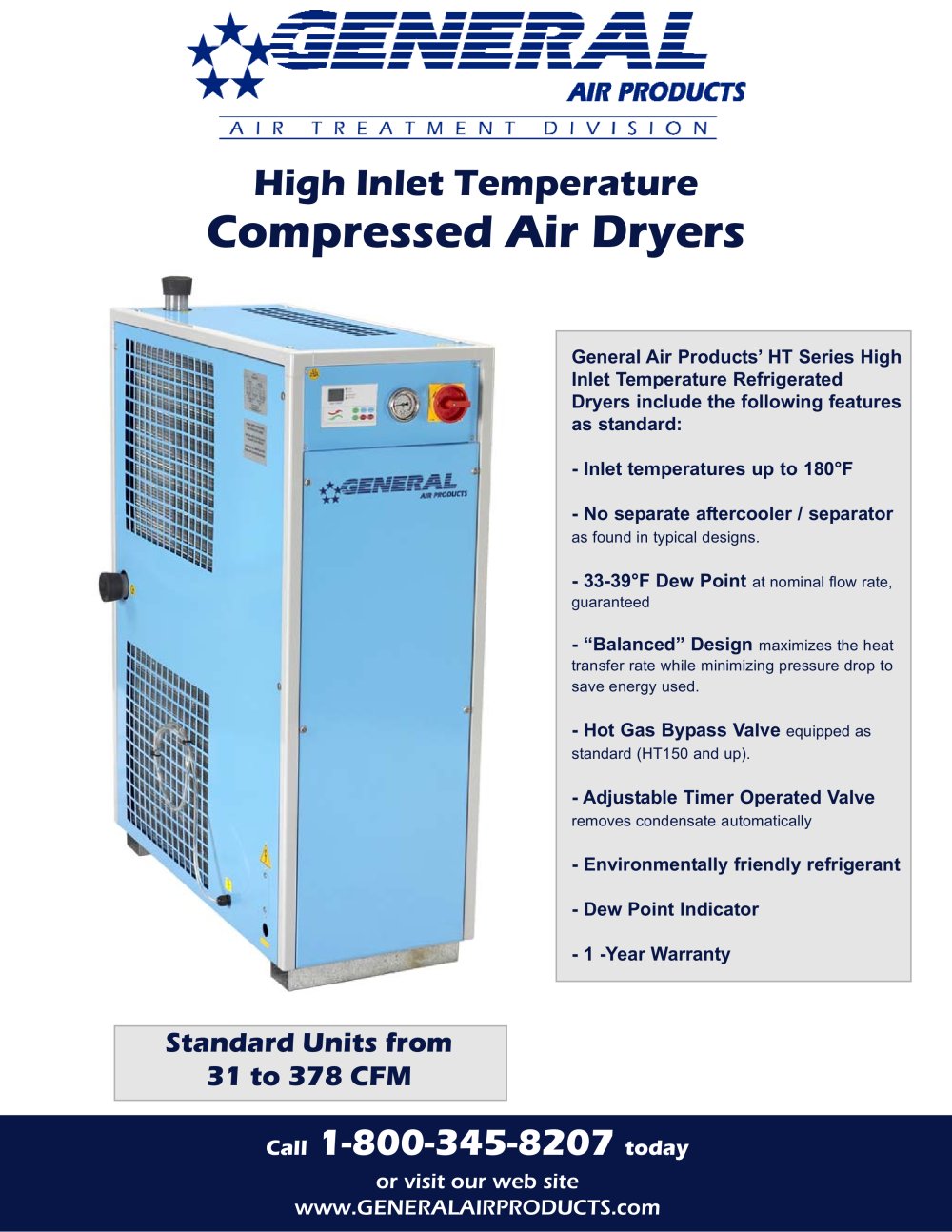

High Temperature Compressed Air Dryers-1

High Inlet Temperature Compressed Air Dryers General Air Products’ HT Series High Inlet Temperature Refrigerated Dryers include the following features as standard: - Inlet temperatures up to 180°F - No separate aftercooler / separator as found in typical designs. - 33-39°F Dew Point at nominal flow rate, guaranteed - “Balanced” Design maximizes the heat transfer rate while minimizing pressure drop to save energy used. - Hot Gas Bypass Valve equipped as standard (HT150 and up). - Adjustable Timer Operated Valve removes condensate automatically - Environmentally friendly refrigerant - Dew Point Indicator - 1 -Year Warranty Call 1-800-345-8207 today or visit our web site www.GENERALAIRPRODUCTS.com Standard Units from 31 to 378 CFM
