Energy Saving Cycling Compressed Air Dryers

Product catalog summary

Overview: The TMR Series Cycling Refrigerated Dryers by General Air Products are designed for energy-efficient operation with features that ensure reliable performance and environmental friendliness. These dryers are suitable for a range of applications with varying air flow requirements.

Key Features:

Dew Point Control: Guaranteed dew point of 33-39°F, adjustable up to 50°F.
Construction: Heavy gauge copper tubes enhance reliability in the heat exchanger and refrigerant circuit.
Technology: Dual Transfer Mode Technology maximizes vapor condensing and removal.
Monitoring: High and low pressure monitoring for automatic detection of pressure changes.
Design: Isolated compressed air circuit and hermetic compressor.
Maintenance: Adjustable timer-operated valve for automatic condensate removal and a condensate discharge line strainer.
Environmental Considerations: Uses environmentally friendly refrigerant.
Warranty: 1-year warranty provided.

Technical Specifications:

Air Flow Capacity: Models range from 16 to 512 SCFM.
Connection Size: Varies from 3/4” to 2 1/2”.
Voltage: Standard voltage options include 115/1/60 and 230/3/60, with additional voltages available upon request.
Dimensions and Weight: Dimensions and weight vary by model, with the largest model (TMR525) measuring 29.25 x 42.50 x 47.50 inches and weighing 794 lbs.
Operating Conditions: Minimum/maximum working pressure is 58/232 PSIG, and inlet temperature ranges from 50ºF to 110ºF.
Pressure Drop: Less than 5 psi.

Correction Factors: Air flow correction factors are provided for varying inlet pressure, ambient temperature, air inlet temperature, and dew point. These factors should be used to adjust dryer capacity under non-standard conditions.

Contact Information: For more information, customers can call 1-800-345-8207 or visit the website at www.GENERALAIRPRODUCTS.com.

Catalog excerpts

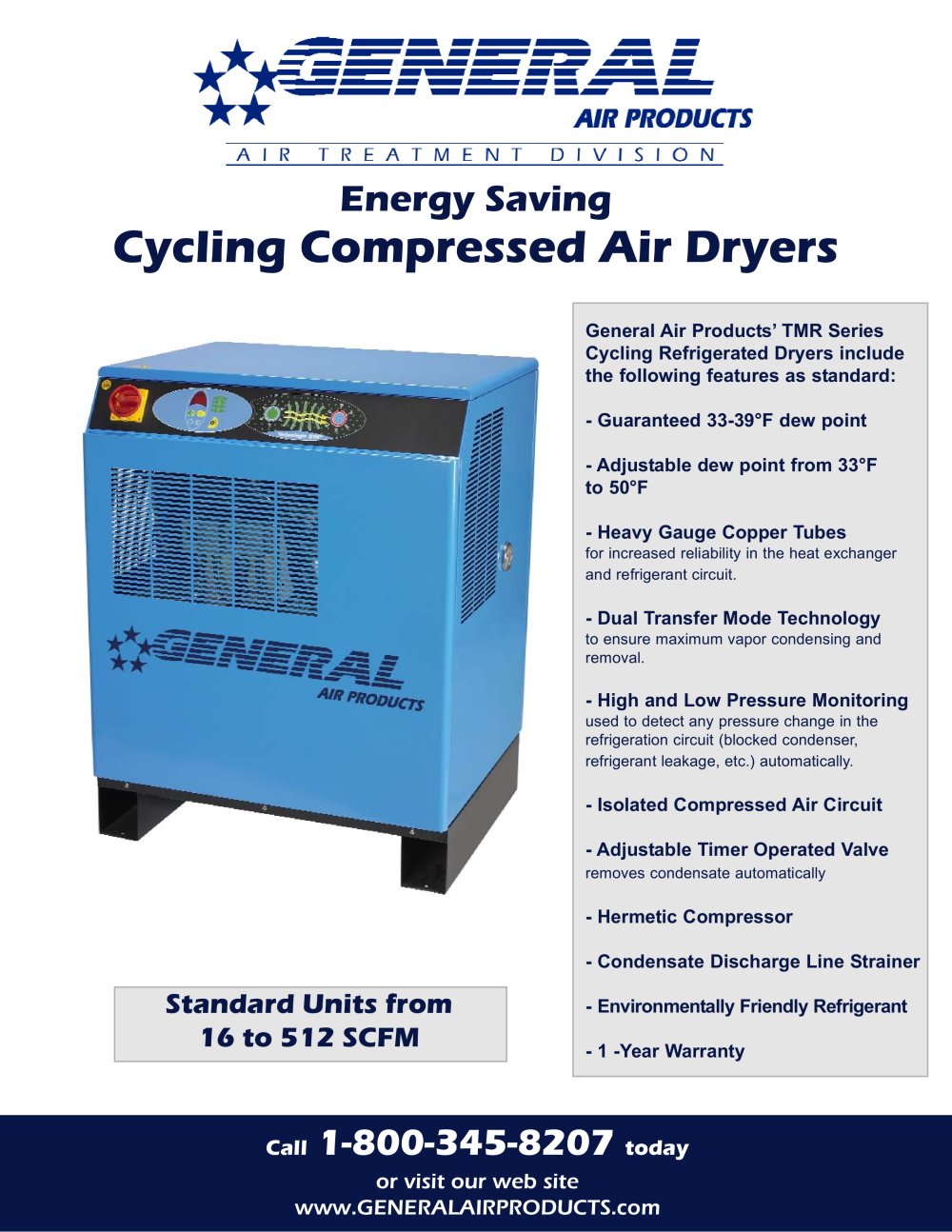

Energy Saving Cycling Compressed Air Dryers-1

Energy Saving Cycling Compressed Air Dryers General Air Products’ TMR Series Cycling Refrigerated Dryers include the following features as standard: - Guaranteed 33-39°F dew point - Adjustable dew point from 33°F to 50°F - Heavy Gauge Copper Tubes for increased reliability in the heat exchanger and refrigerant circuit. - Dual Transfer Mode Technology to ensure maximum vapor condensing and removal. - High and Low Pressure Monitoring used to detect any pressure change in the refrigeration circuit (blocked condenser, refrigerant leakage, etc.) automatically. - Isolated Compressed Air Circuit - Adjustable Timer Operated Valve removes condensate automatically - Hermetic Compressor - Condensate Discharge Line Strainer - Environmentally Friendly Refrigerant - 1 -Year Warranty Call 1-800-345-8207 today or visit our web site www.GENERALAIRPRODUCTS.com Standard Units from 16 to 512 SCFM
