Air Cooled Chiller

Product catalog summary

Overview: General Air Products offers Industrial Duty Air Cooled Chillers suitable for a wide range of applications including plastics, lasers, food and beverage, chemical and pharmaceutical, metal working, mechanical and engineering, paper, and other industries. These chillers are designed for efficiency, reliability, and adaptability to various industrial needs.

Key Features:

Evaporator-in-tank Configuration: Innovative design with co-axial copper coil and stainless steel tank, allowing operation with impure liquids and ensuring steady water temperature.
Compressor Options: Includes piston, rotary, and scroll compressors, with scroll compressors offering energy efficiency and reduced vibrations.
Pump: Standard 43 psi pump with various options available, including centrifugal pumps for certain models.
Advanced Microprocessor: Provides digital water temperature readings, alarms, and extensive programming capabilities.
Condensing Section: Air-cooled condensers with space-saving design and optional water-cooled configurations.
Multiple Components: Models with multiple compressors for improved operation in harsh conditions.

Benefits:

Generous Operating Limits: Suitable for a wide range of temperatures and weather conditions.
Assured Quality: Each model undergoes rigorous testing to ensure reliability.
Fail-safe Operation: Features like internal water by-pass and antifreeze protection ensure continuous operation.
Closed Circuit Operation: Offers precise temperature control and cost savings on water usage.
Lowest Operating Costs: Energy-efficient design with low maintenance needs.
Custom Fabrication: Ability to meet custom requirements with options like explosion-proof and weatherproof chillers.

Option Packages: Various configurations and accessories are available to tailor the chillers to specific needs, including different pump options, water circuit materials, condenser sections, and special voltages.

Technical Information: Detailed specifications for each model, including compressor type, cooling capacity, dimensions, and weight. Models range from 0.5 to 38.9 tons of cooling capacity, with various compressor and circuit configurations.

Catalog excerpts

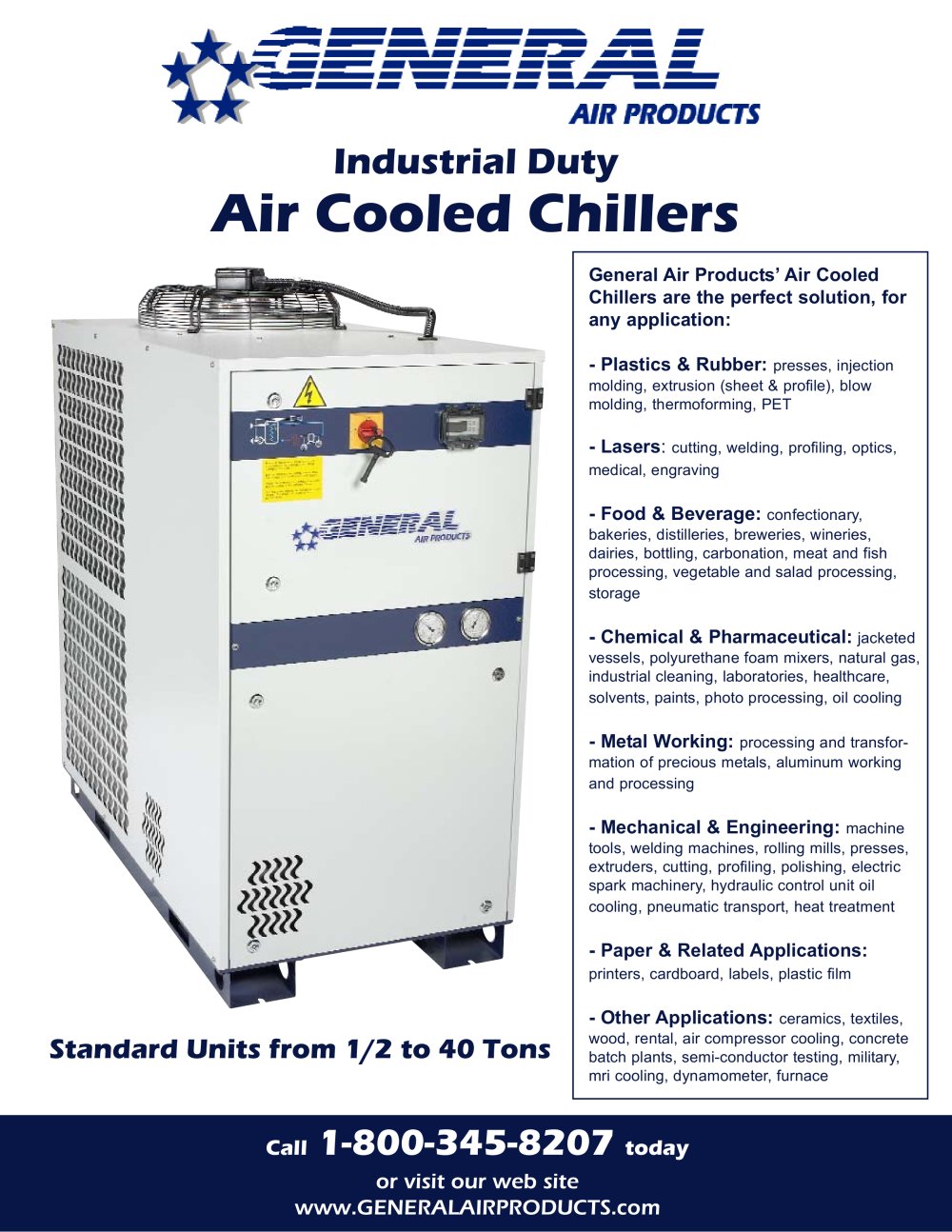

General Air ProductsAir CooledChillers are the perfect solution, for any application:- Plastics & Rubber: > presses, injectionmolding, extrusion (sheet & profile), blowmolding, thermoforming, PET - Lasers : > cutting, welding, profiling, optics,medical, engraving - Food & Beverage: > confectionary,bakeries, distilleries, breweries, wineries,dairies, bottling, carbonation, meat and fish processing, vegetable and salad processing,storage - Chemical & Pharmaceutical: > jacketedvessels, polyurethane foam mixers, natural gas,industrial cleaning, laboratories, healthcare,solvents, paints, photo processing, oil cooling - Metal Working: > processing and transfor-mation of precious metals, aluminum workingand processing - Mechanical & Engineering: > machinetools, welding machines, rolling mills, presses,extruders, cutting, profiling, polishing, electric spark machinery, hydraulic control unit oilcooling, pneumatic transport, heat treatment - Paper & Related Applications: > printers, cardboard, labels, plastic film - Other Applications: > ceramics, textiles,wood, rental, air compressor cooling, concretebatch plants, semi-conductor testing, military, mri cooling, dynamometer, furnace

Open the catalog to page 1

Industrial Duty Air Cooled Chillers Unlike typical chillers, General Air Products' chillers have been designed specifically for industry. The fruitof over 20 years in the industrial chilling market, with hundreds of thousands of refrigerating machines installed worldwide, General chillers perfectly match the needs of a diverse range of industries. This is thanks to: - Generous operating limits, both as regards the water inlet and outlet temperature. - Weatherproof construction with high temperature limits, allowing operation in all conditions. - An extensive range of accessories with allow units...

Open the catalog to page 3

As applications differ, so General Air Products' chillers can be adapted to each individual need thanks tonumerous configurations and accessories: - Pump options: 3bar pumps are supplied as standard, 5bar pumps or no pump on request (from 015). Twinpumps are also offered (from 201). - Water Circuit: Condenser section: Anon-ferrous option (stainless steel water tank, copper/brass exchanger, stainless steel pumpif not already standard) is offered on models 015-351. Alternatively, models 015-351 can be supplied with a prismatic stainless steel tank and an external stainless steel plate heat exchanger...

Open the catalog to page 4

* Full Load Amps based on the following standardvoltages:ACCPS005 - 010 = 230/1/60ACCPS015 - 602 = 460/3/60 ** Cooling Capacity based on performance data forthe following conditions:- Outlet Water Temperature = 45 > o F- Water Temperature Gradient = 10 > o F- Ambient Temperature = 95 > o F Other Voltages Available and in Stock: 115V, 208V, 230V (Single and Three Phase) >

Open the catalog to page 5
