Voltage logger TK-4703

Product catalog summary
Overview: The Tinytag Talk 2 Voltage Logger (TK-4703) is a compact and economical device designed for recording voltage levels up to 2.5V DC. It is housed in a 35mm film canister, making it suitable for applications where space is limited.
Features:
  • Capacity for 16,000 readings with high accuracy and resolution.
  • Fast data offload and two user-programmable alarms.
  • Low battery monitor and user-replaceable battery.
Applications: Suitable for battery condition monitoring and customized data logging for parameters like CO2, pressure, flow rate, light, and power (with a current clamp).
Specifications:
  • Ingress Protection: IP30 (not waterproof).
  • Operational Range: -40°C to +85°C (-40°F to +185°F).
  • Dimensions: Diameter 34mm, Height 54mm, Weight 30g.
  • Reading Range: 0-2.5V DC, Maximum Input: 3V, Input Impedance: 470KΩ.
  • Resolution: Better than 50µV, Accuracy: ±0.2% of Reading ±5mV.
  • Temperature Stability: 1mV/°C change from ambient (25°C).
Calibration and Maintenance: Annual calibration is recommended. A UKAS traceable certificate of calibration is available for an additional charge.
Memory and Logging:
  • Total Reading Capacity: 16,000 readings, Non-Volatile Memory.
  • Logging Interval: 1 second to 10 days, with options for delayed start and stop.
  • Alarms: Two fully programmable and latchable alarms.
Connection Information: Supplied with a CAB-3233 Talk Voltage/Current Input Lead. The Sense line changes state during readings but does not need to be connected for operation.
Compliance and Quality: Complies with part 15 of the FCC rules and operates under a Quality Management System conforming to ISO 9001.
See more

Catalog excerpts

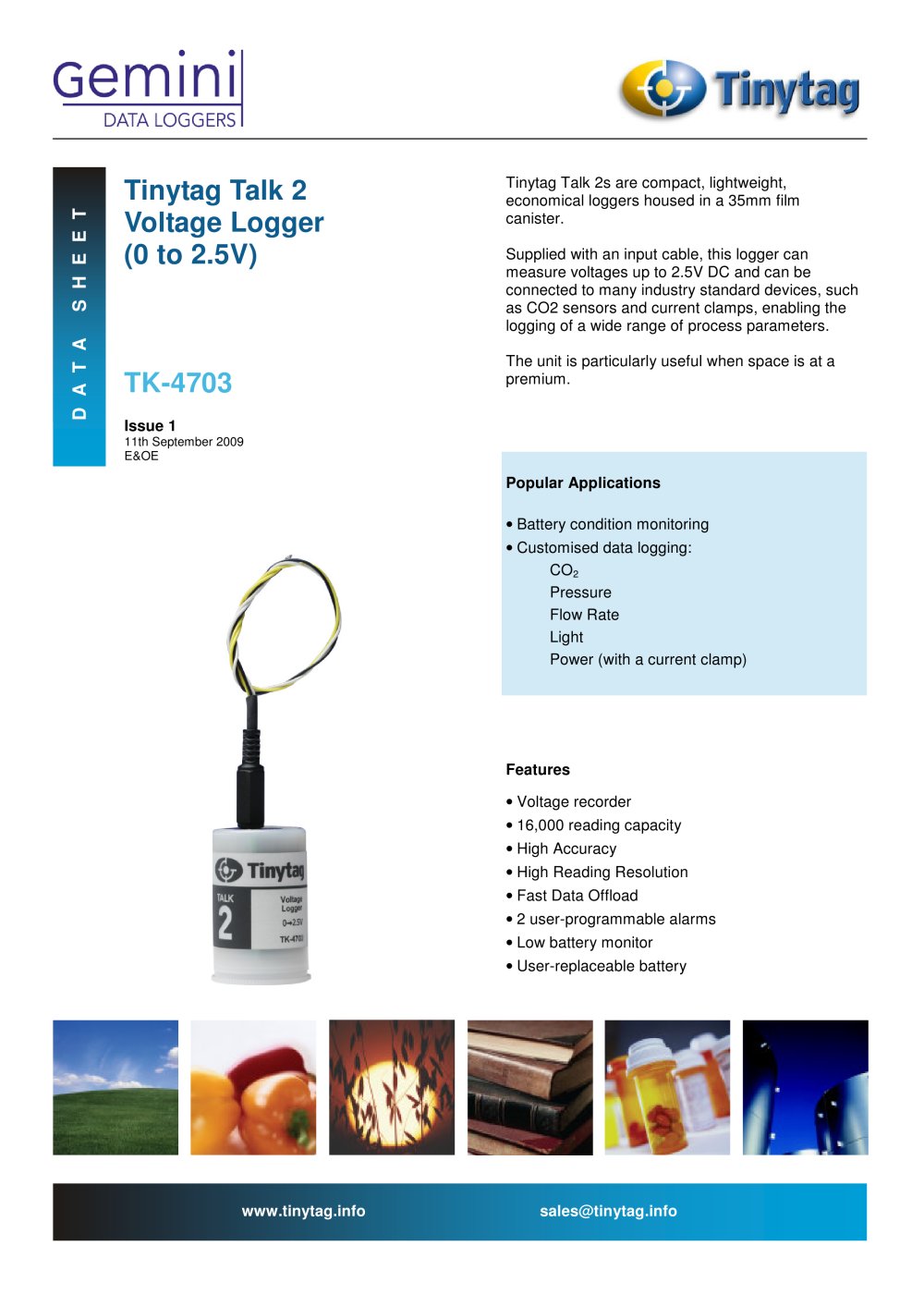

Voltage logger TK-4703-1

DATA LOGGERS sisJ Tinytag Voltage Logger Tinytag Talk 2s are compact, lightweight, economical loggers housed in a 35mm film Supplied with an input cable, this logger can connected to many industry standard devices, such as C02 sensors and current clamps, enabling the logging of a wide range of process parameters. The unit is particularly useful when space is at a Popular Applications Battery condition monitoring Customised data logging: Flow Rate Power (with a current clamp) • Voltage recorder • High Accuracy • High Reading Resolution • Fast Data Offload • User-replaceable battery

 Open the catalog to page 1
Voltage logger TK-4703-2

DATA LOGGERS Tinytag Talk 2 Voltage Logger Total Reading Capacity 16,000 readings Memory type Stop Options Reading Types Logging Interval Relative / Absolute When full Never (overwrite oldest data) While stopped or when logging in minutes mode Reading Specification Reading Range Maximum Input Input Impedance Temperature Stability 1mV/°C change from ambient Physical Specification Ingress Protection Operational Range Case Dimensions* *The Case Dimensions and Weight do not include the supplied Connection Information The Tinytag Talk 2 Voltage Logger is supplied with a CAB-3233 Talk Voltage/Current...

 Open the catalog to page 2
