Vibration data logger TGP-0650

Vibration data logger TGP-0650
1 / 2 PagesView full catalog

Vibration data logger TGP-0650

Product catalog summary
Overview: The Tinytag Plus TGP-0650 is a robust, waterproof data logger designed for harsh and outdoor environments. It measures vibration and is suitable for applications such as machine condition monitoring and the transportation of fragile goods.
Specifications:
  • Vibration Range: 0 to 50mm/s
  • Sensor Type: Piezo Electric
  • Accuracy: ±10% Reading + 0.2mm/s (from 1 to 40mm/s)
  • Frequency Response: 20Hz to 1kHz
  • Resolution: 0.2mm/s
  • IP Rating: IP68, waterproof up to 15m depth
  • Operational Range: -40°C to +85°C (-40°F to +185°F)
  • Dimensions: Height 34mm, Width 73mm, Depth 68mm
  • Weight: 140g
Features:
  • 16,000 reading capacity
  • User-programmable logging interval and alarms
  • Delayed start and multiple stop options
  • Non-volatile memory
  • User-replaceable battery
Battery and Calibration:
  • Battery Type: SAFT LS14250 or LST14250; Tekcell SBAA02P
  • Replacement Interval: Annually
  • Calibration recommended annually
Usage Notes:
  • Ensure the logger is securely mounted to avoid errors.
  • Avoid exposure to strong electromagnetic signals.
  • Data is retained after battery replacement.
Required Software and Accessories:
  • SWCD-0040: Tinytag Explorer software or SW-0500: Easyview Pro software
  • CAB-0007-USB: Tinytag Ultra/Plus/View USB Download Cable
Compliance and Quality: The device complies with FCC rules and Gemini Data Loggers operates under ISO 9001 standards.
See more

Catalog excerpts

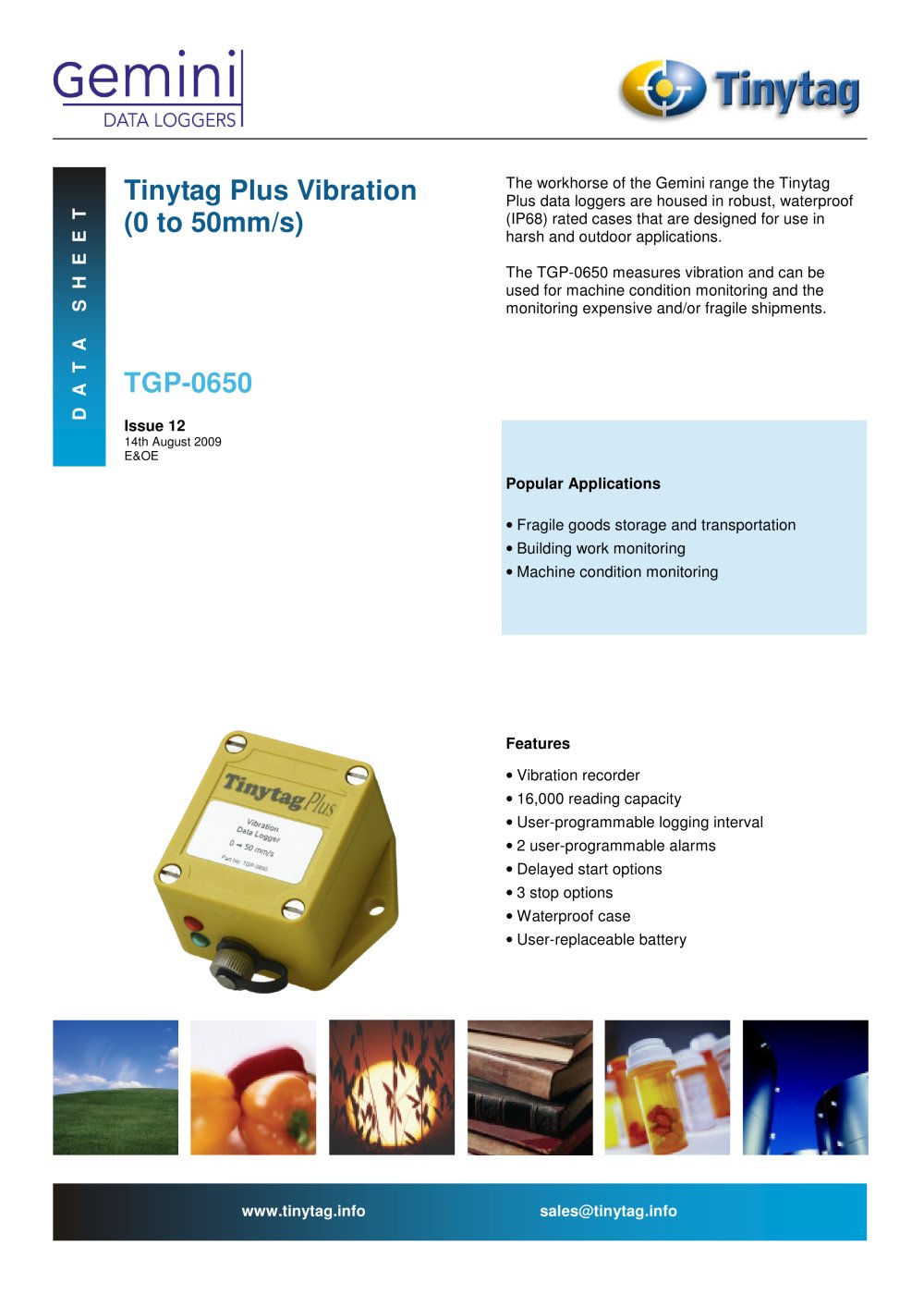

Vibration data logger TGP-0650 -1

DATA LOGGERS Tinytag Plus Vibration The workhorse of the Gemini range the Tinytag Plus data loggers are housed in robust, waterproof (IP68) rated cases that are designed for use in harsh and outdoor applications. used for machine condition monitoring and the monitoring expensive and/or fragile shipments. Popular Applications • Fragile goods storage and transportation • Building work monitoring • Machine condition monitoring • Vibration recorder User-programmable logging interval Delayed start options • Waterproof case • User-replaceable battery

 Open the catalog to page 1
Vibration data logger TGP-0650 -2

DATA LOGGERS Tinytag Plus Vibration Total Reading Capacity Memory type Delayed Start Stop Options Reading Types Logging Interval Relative / Absolute When full Never (overwrite oldest data) While stopped or when Reading Specification Reading Range Sensor Type Frequency Response Piezo Electric Physical Specification Operational Range* Case Dimensions Battery Type *The Operational Range indicates the physical limits to which the unit can be exposed, not the reading range over which it will The logger will operate with other VfeAA 3.6V Lithium (U-SOCI2) batteries but performance cannot be guaranteed....

 Open the catalog to page 2
