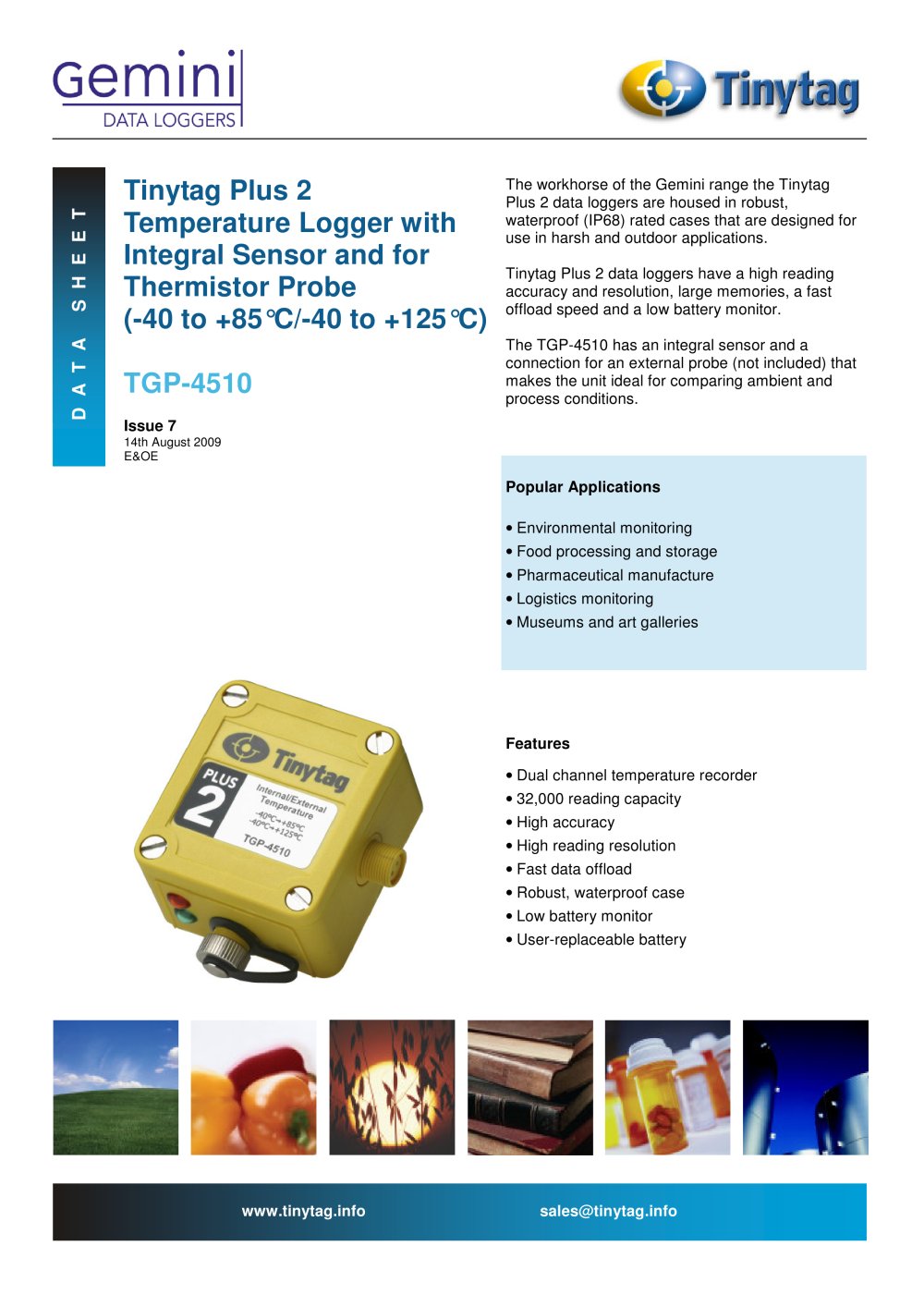

DATA LOGGERS sifj Tinytag Temperature Logger with Thermistor Probe The workhorse of the Gemini range the Tinytag Plus 2 data loggers are housed in robust, waterproof (IP68) rated cases that are designed for use in harsh and outdoor applications. Tinytag Plus 2 data loggers have a high reading accuracy and resolution, large memories, a fast offload speed and a low battery monitor. connection for an external probe (not included) that makes the unit ideal for comparing ambient and process conditions. Popular Applications • Environmental monitoring • Food processing and storage • Pharmaceutical manufacture • Logistics monitoring • Dual channel temperature recorder • High accuracy • High reading resolution • Fast data offload • Robust, waterproof case • User-replaceable battery

DATA LOGGERS Tinytag Plus 2 Temperature Logger with Integral Sensor Total Reading Capacity Memory type Trigger Start Delayed Start Stop Options Reading Types Logging Interval Physical Specification Magnetic Switch Relative / Absolute When full Never (overwrite oldest data) While stopped or when 2 fully programmable; latchable Reading Specification Internal Temperature Reading Range Sensor Type Response Time Reading Resolution (Internally mounted) External Temperature Reading Range Sensor Type Reading Resolution Temperature Stability (External probe) ±0.01 °C/°C change from 25 °C The graph below...

DATA LOGGERS Tinytag Plus 2 Temperature Logger with Integral Sensor This equipment complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause any harmful interference, and (2) the device must accept any interference received, including interference that may cause undesired operation. This data logger is approved to EN61326:1998 with any standard leads or probes supplied. Gemini Data Loggers (UK) Ltd. operates a Quality Management System which conforms to ISO 9001. The scope of the system covers the manufacture, design and supply...
