Temperature data logger TK-4014

Temperature data logger TK-4014

Temperature data logger TK-4014

Product catalog summary
Overview: The Tinytag Talk 2 Temperature Logger (TK-4014) is a compact, lightweight, and economical device designed for a variety of applications such as building condition monitoring, pharmaceutical storage, dry food storage, and museum display. It is housed in a 35mm film canister and features an internal temperature sensor.
Specifications: The logger operates within a temperature range of -40°C to +85°C and has a reading capacity of 16,000. It is equipped with a 10K NTC Thermistor sensor, offering a reading resolution of 0.05°C or better. The device is splash-proof with an IP54 rating and weighs 30g.
Features: Key features include high accuracy, high reading resolution, fast data offload, two user-programmable alarms, and a low battery monitor. The logger supports a logging interval from 1 second to 10 days and offers various stop options.
Operational Details: The logger requires software such as Tinytag Explorer or Easyview for data management and a compatible download cable. It uses a SAFT LS14250 or equivalent battery, which should be replaced annually. Data is retained during battery replacement.
Calibration and Compliance: Annual calibration against a reference meter is recommended. The device complies with FCC rules and is manufactured under an ISO 9001 certified quality management system.
See more

Catalog excerpts

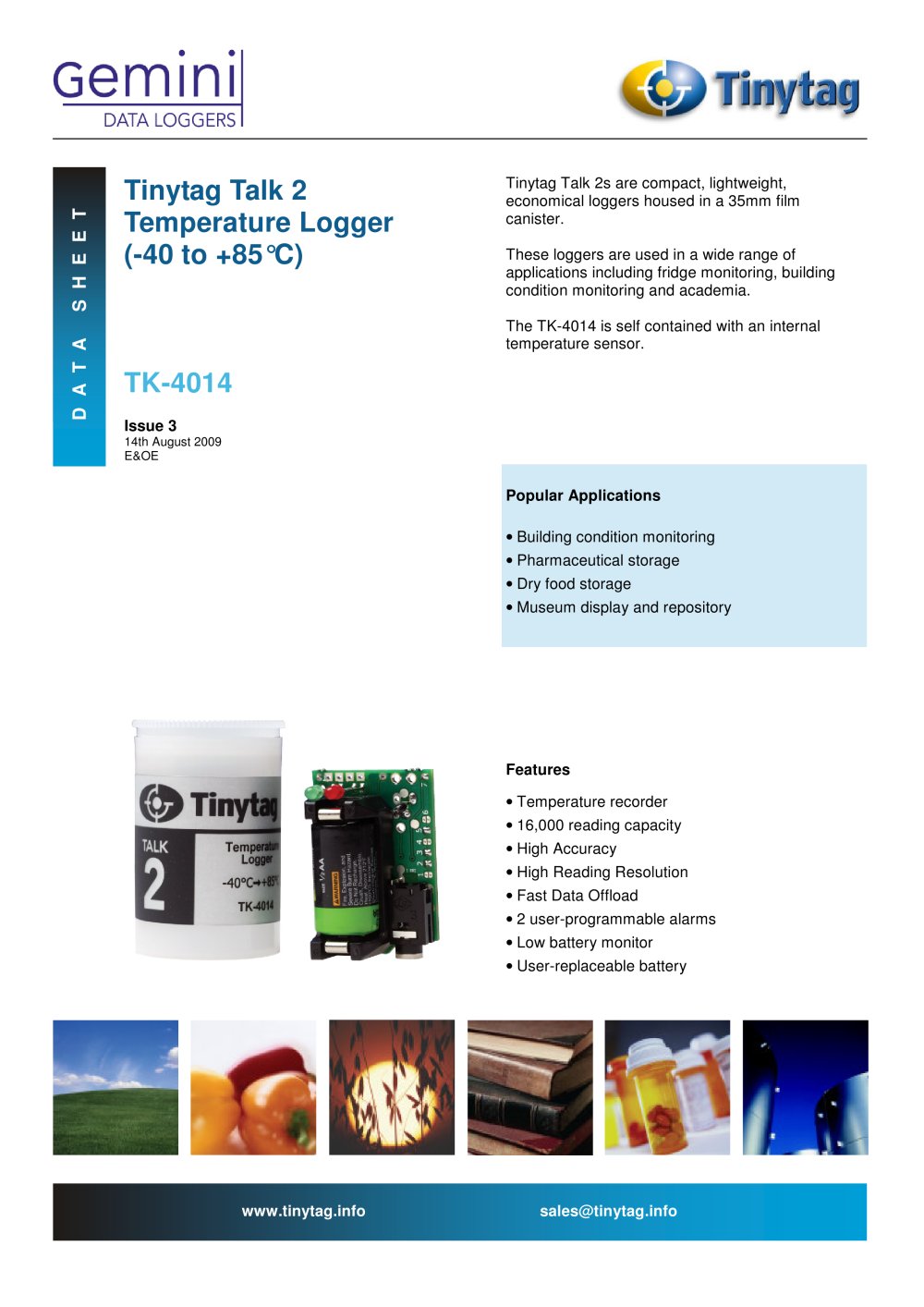

Temperature data logger TK-4014-1

DATA LOGGERS Temperature Logger Tinytag Talk 2s are compact, lightweight, economical loggers housed in a 35mm film These loggers are used in a wide range of applications including fridge monitoring, building condition monitoring and academia. The TK-4014 is self contained with an internal temperature sensor. Popular Applications • Building condition monitoring • Pharmaceutical storage • Museum display and repository • Temperature recorder • High Accuracy • High Reading Resolution • Fast Data Offload • User-replaceable battery

 Open the catalog to page 1
Temperature data logger TK-4014-2

DATA LOGGERS Tinytag Talk 2 Temperature Logger Total Reading Capacity Memory type Delayed Start Stop Options Reading Types Logging Interval Relative / Absolute When full Never (overwrite oldest data) While stopped or when logging in minutes mode Battery Type The logger will operate with other VfeAA 3.6V Lithium (U-SOCI2) batteries but performance cannot be guaranteed. Replacement Interval Annually Before replacing the battery the data logger must be stopped. Data stored on the logger will be retained after a battery is If used at low temperatures the data logger should be allowed to warm to room...

 Open the catalog to page 2
