Current input data logger TGPR-0805

Product catalog summary
Overview: The Tinytag Plus Re-Ed XP Current Input Logger (TGPR-0805) is a robust, splash-proof data logger designed for recording outputs from 4-20mA sensors. It is suitable for applications such as pressure and flow rate monitoring.
Specifications:
  • Current input range: 0 to 20mA DC
  • Maximum input: 50mA
  • Input impedance: 10Ω
  • Resolution: 0.08mA
  • Accuracy: ±0.1mA ±0.6% of reading
  • Power supply: 12V, 2500mAh
  • Reading capacity: 16,000 readings
  • Operational range: -20°C to +50°C (-4°F to +122°F)
  • IP Rating: IP65 splash-proof
Features:
  • User-programmable logging interval and alarms
  • Delayed start and multiple stop options
  • Non-volatile memory
  • User-replaceable battery
  • 12V, 50mA typical power output
Physical Specifications:
  • Dimensions: 75mm x 75mm x 110mm
  • Weight: 655g
Battery Information:
  • Logger battery type: Tekcell SBAA02P, SAFT LS14250 or LST14250
  • XP battery type: 8 x AA 1.5V Alkaline batteries
  • Replacement interval: Every two years for logger battery
Connection Information: The logger can be used with CAB-3239 Tinytag Voltage/XP Input Lead or ACS-9703 5-Pin Plug. Connection details include reference, 12V, common/0V, and signal input lines.
Calibration and Approvals: The unit should be calibrated annually against a reference meter. It complies with FCC rules and Gemini Data Loggers operates under ISO 9001 standards.
Required and Related Products: Necessary accessories include cables (CAB-3239, ACS-9703, CAB-0007-USB) and software (Tinytag Explorer or Easyview Pro).
See more

Catalog excerpts

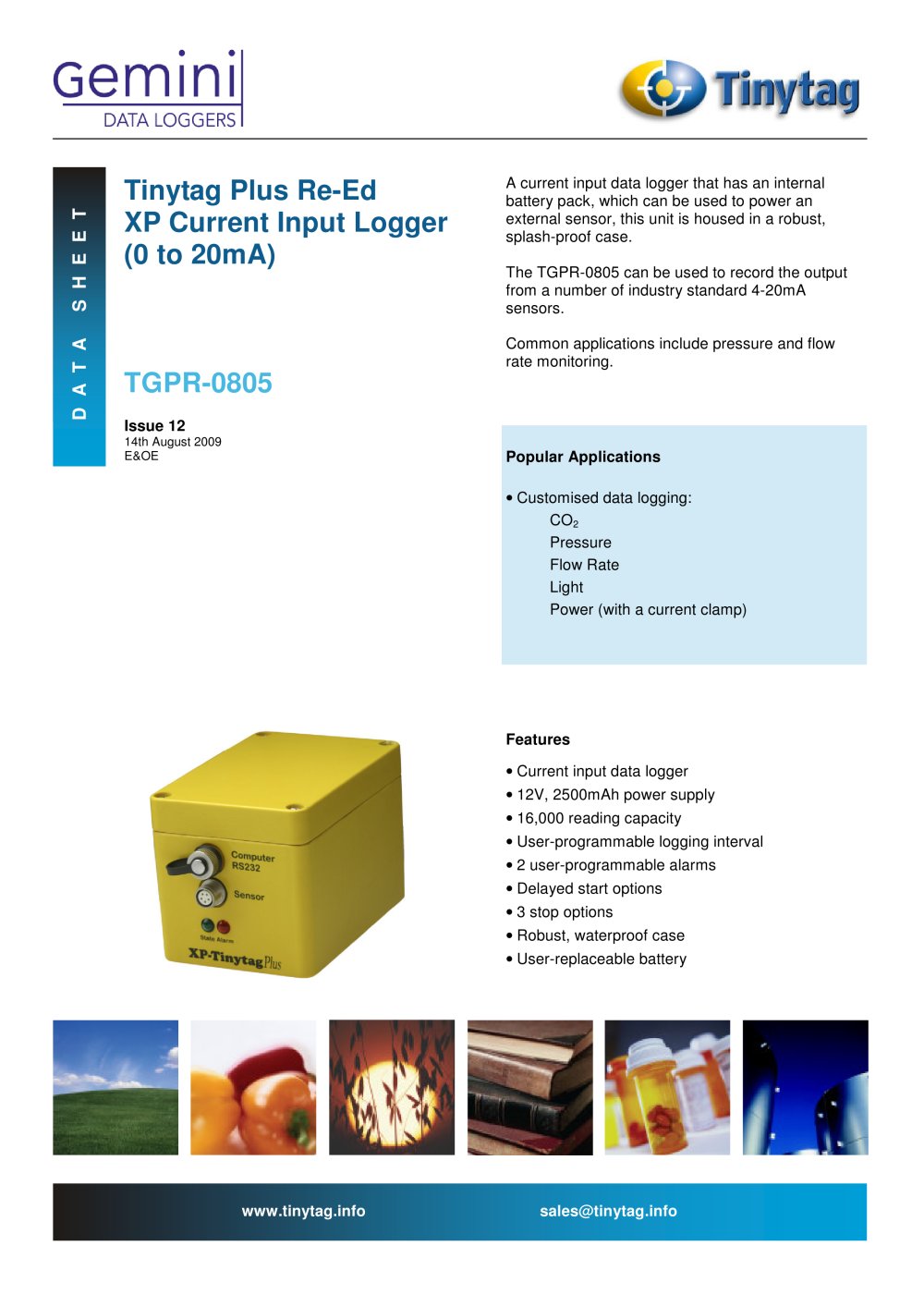

Current input data logger TGPR-0805-1

DATA LOGGERS Tinytag Plus Re-Ed XP Current Input Logger A current input data logger that has an internal battery pack, which can be used to power an external sensor, this unit is housed in a robust, splash-proof case. The TGPR-0805 can be used to record the output from a number of industry standard 4-20mA Common applications include pressure and flow rate monitoring. Popular Applications • Customised data logging: Flow Rate Power (with a current clamp) • Current input data logger • User-programmable logging interval • Delayed start options • Robust, waterproof case • User-replaceable battery

 Open the catalog to page 1
Current input data logger TGPR-0805-2

Tinytag Plus Re-Ed XP Current Input Logger Total Reading Capacity Memory type Delayed Start Stop Options Logging Interval Relative / Absolute When full Never (overwrite oldest data) While stopped or when logging 2 fully programmable; latchable Reading Specification Maximum Input Input Impedance Physical Specification Operational Range* Case Dimensions *The Operational Range indicates the physical limits to which Connection Information The Tinytag Plus Re-Ed Current Logger can be used with a CAB-3239 Tinytag Voltage/XP Input Lead or an ACS-9703 5-Pin The connection details for the cable and plug...

 Open the catalog to page 2
Current input data logger TGPR-0805-3

DATA LOGGERS Tinytag Plus Re-Ed XP Current Input Logger Required and Related Products To use this data logger you will also require a cable: CAB-3239: Tinytag Voltage/XP Input Lead One of the following pieces of software: SWCD-0040: Tinytag Explorer software or CAB-0007-USB: Tinytag Ultra/Plus/View USB Download Cable Further related products: CAB-0007: Tinytag PC Serial Download Cable SER-9540: Tinytag Plus Re-ed XP Service Kit

 Open the catalog to page 3
