count input data logger

count input data logger
1 / 2 PagesView full catalog

count input data logger

Product catalog summary
Overview: The Tinytag Plus Re-Ed Count Input Logger (TGPR-1201) is a robust, waterproof data logger designed for applications such as flow rate monitoring, people counting, wind speed, and rainfall measurement. It is housed in an IP68 rated case, ensuring durability and protection against water ingress.
Key Features:
  • Count input data logger with a capacity of 64,000 readings.
  • User-programmable logging interval and alarms.
  • Delayed start and multiple stop options.
  • Operates within a temperature range of -40°C to +85°C.
  • Replaceable battery with a two-year replacement interval.
Specifications:
  • Dimensions: 34mm x 59mm x 80mm; Weight: 110g.
  • Reading range: 0 to 255 counts per interval with a maximum frequency of 50 counts/second.
  • Digital input: Low level -0.5V to +1V, High level 2.5V to 10V.
  • Contact input: Normally open with minimal de-bounce.
Operational Details:
  • Trigger start via magnetic switch with visual LED indicators.
  • Data retention during battery replacement.
  • IP68 rating valid to a depth of 15m when properly sealed.
Required Accessories:
  • Input leads (CAB-3246 or ACS-9700) and software (SWCD-0040 or SW-0500).
  • USB download cable (CAB-0007-USB) and optional service kit (SER-9530).
Compliance and Quality: The device complies with FCC rules and is manufactured under an ISO 9001 certified quality management system.
See more

Catalog excerpts

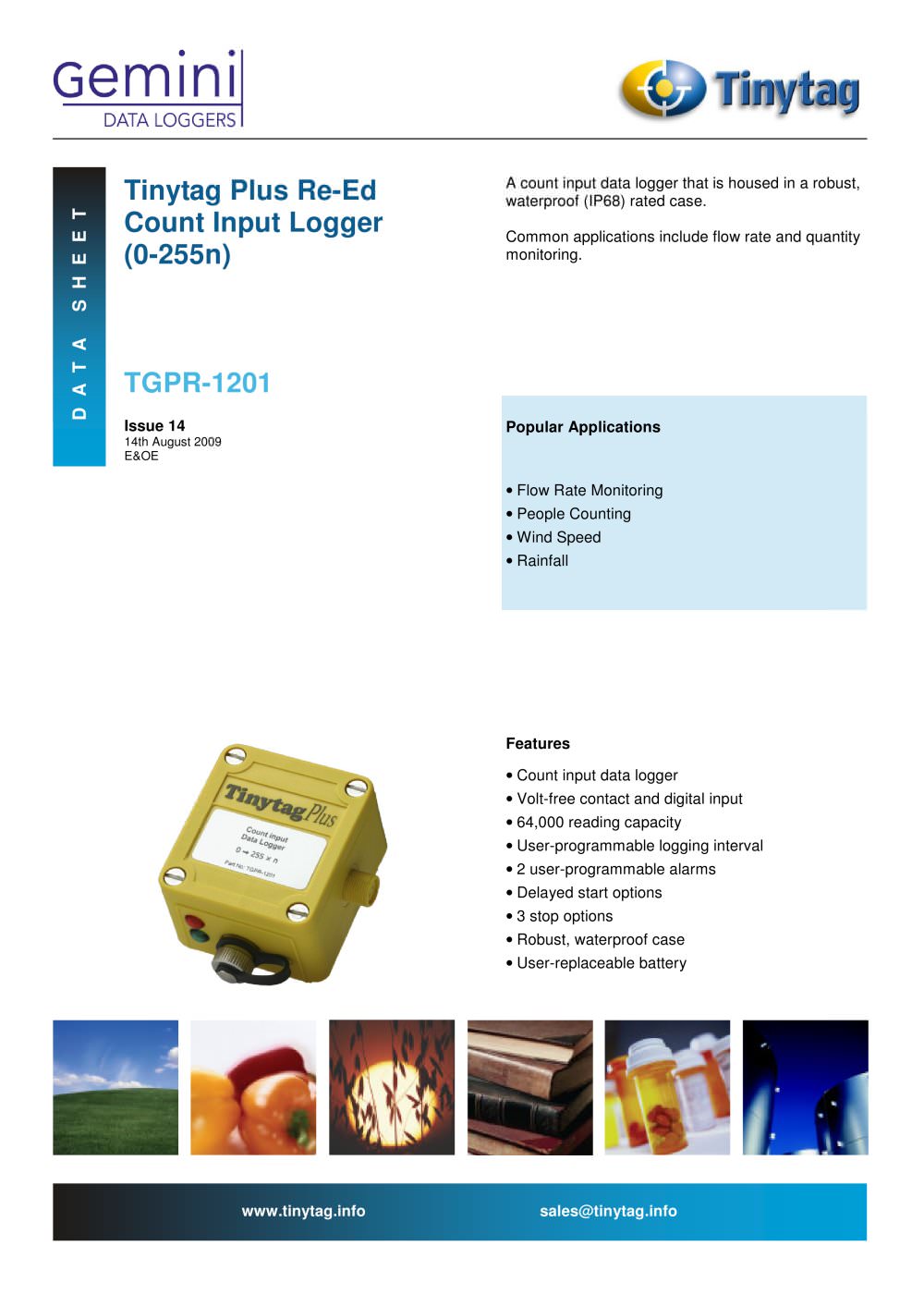

count input data logger-1

DATA LOGGERS s£sJ Tinytag Tinytag Plus Re-Ed Count Input Logger A count input data logger that is housed in a robust, waterproof (IP68) rated case. Common applications include flow rate and quantity Popular Applications • Flow Rate Monitoring • People Counting • Wind Speed • Count input data logger • Volt-free contact and digital input • User-programmable logging interval • Delayed start options • Robust, waterproof case • User-replaceable battery

 Open the catalog to page 1
count input data logger-2

DATA LOGGERS Tinytag Plus Re-Ed Count Input Logger Total Reading Capacity 64,000 readings (current product); Memory type Trigger Start Delayed Start Stop Options Logging Interval Magnetic Switch Relative / Absolute When full Never (overwrite oldest data) While stopped or when 2 fully programmable; latchable Reading Specification Reading Range Maximum Frequency Input Type Maximum Error Digital Input High Level Edge Detection Contact Input Edge Detection Digital or Volt-Free Contact Switch High-Low Transition Normally Open (With Minimal Physical Specification Operational Range* Case Dimensions...

 Open the catalog to page 2
