Plate beveller EDGE 46

Product catalog summary

Overview: The GBC EDGE 46 is a high-speed plate bevelling machine designed for efficient material removal with a milling head that operates automatically along the plate edge. It is suitable for various materials including carbon steel, alloys, and stainless steel, providing a smooth surface finish without grooves.

Specifications:

Working Range: Plate thickness from 8 to 60 mm (5/16” to 2 3/8”).
Bevel Angle: Adjustable from 15° to 60°.
Materials: Capable of working with carbon steel, alloys, stainless steel, Duplex, SuperDuplex, and Hastelloy.
Power Supply: Electric 3-phase 380 V, 50-60 Hz, with different voltages available on request.
Motor Power: Dual electric motor with 4.4 kW.
Milling Head Speed: 800 rpm with a diameter of 80 mm (3 1/8”).
Weight: 119 kg (262 lbs).

Features:

Automatic advancement with variable speed control, eliminating the need for operator intervention.
Variable angle head allows quick adjustment of bevel angle without tools.
Supplied with service wrenches, drawings, instruction manual, and warranty certificate in a wooden box for storage and transportation.

Performance: The machine can achieve maximum bevel performance in several steps, with specific capabilities depending on the bevel angle and plate thickness.

Catalog excerpts

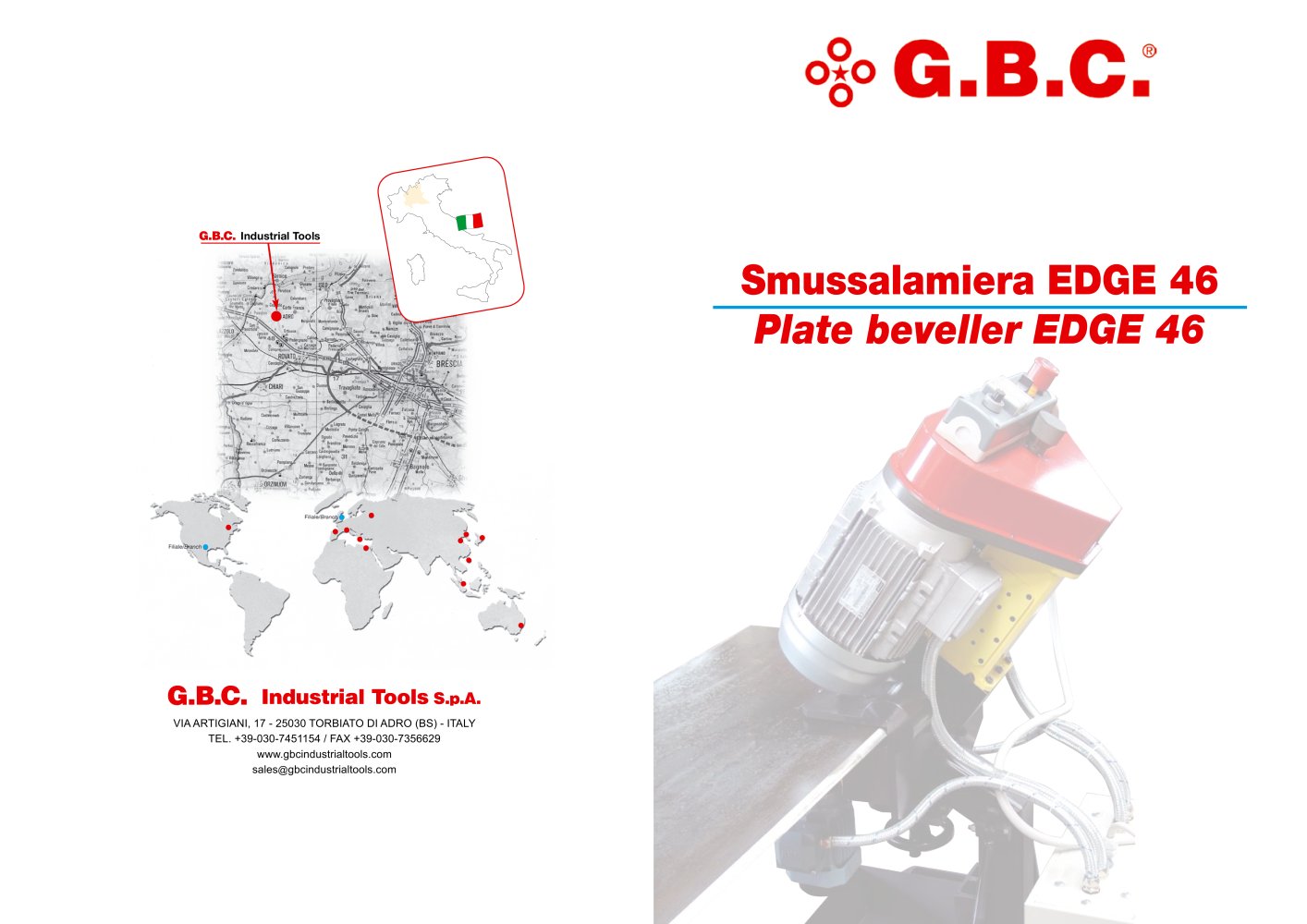

Smussalamiera EDGE 46 Plate beveller EDGE 46 Via Artigiani, 17 - 25030 Torbiato di Adro (BS) - ITA LY Tel. +39-030-7451154 / Fax +39-030-7356629 www.gbcindustrialtools.com [email protected] Industrial Tools

Open the catalog to page 1

Smussatrice per lamiere GBC EDGE 46, con fresa ad inserti ad alta velocità per una elevata capacità di asportazione truciolo e conseguente rapidità di esecuzione. La macchina, dopo il piazzamento sul bordo della lamiera, si muove automaticamente sulla stessa sino a fine lavorazione, senza intervento dell’ operatore. Plate bevelling machine GBC EDGE 46, with high speed milling head, insert type, for high material removal rate. Once positioned on the plate edge the machine travels along the plate automatically, without any intervention by the operator. GBC EDGE 46 Range w.t. 8-60 mm (5/16” – 2...

Open the catalog to page 2
