Overview: This document outlines the technical specifications and features of GBC plate bevelling machines, specifically the CHALLENGE 12, 15, 15U, 26, and 26U models. These machines are designed for bevelling steel plates with varying thicknesses and angles, emphasizing portability and ease of use.

GBC CHALLENGE 12:

Comes with a wooden box, milling tool for carbon steel, and a roller assembly for a 30° angle.
Compact and portable design; operates automatically along the plate edge.
Bevel range: 22°30’ to 55°; suitable for carbon steel, alloys, and stainless steel.
Electric power: 3 phase, 380V, 50-60Hz; operates silently.
Roller assembly allows quick angle changes.

GBC CHALLENGE 15:

Includes a milling tool, angle adjustment pins, and a protective box.
Suitable for large plates and small strips; automatic operation.
Bevel range: 22°30’ to 55°; compatible with any kind of steel.
Electric power: 3 phase, 380V, 50-60Hz; silent operation.
Features a variable head for quick angle adjustments without additional accessories.

GBC CHALLENGE 15U:

Upside-down version of CHALLENGE 15 for bevelling the bottom side of thick plates.
Technical specifications are similar to the CHALLENGE 15 model.

GBC CHALLENGE 26:

Designed for heavy-duty work on thick plates; includes a milling tool and protective box.
Bevel range: 22°30’ to 55°; suitable for any kind of steel.
Electric power: 3 phase, 380V, 50-60Hz; silent operation.
Variable head allows quick angle changes without additional accessories.

GBC CHALLENGE 26U:

Similar to CHALLENGE 26 but designed for upside-down operation on thick plates.
Technical specifications are similar to the CHALLENGE 26 model.

Key Features Across Models:

Automatic operation along the plate edge without operator intervention.
Various milling cutters available for different materials and hardness.
Hydraulic adjustable lifting trolley available for large plates.
Different voltage options available upon request.

GBC CHALLENGE 26U Overview: A specialized machine for creating bevels on the bottom side of thick steel plates, optimized for double bevel (X type) requirements.

Specifications:

Working Thickness Range: 8-50 mm (5/16”– 2”)
Bevel Angle Range: 22°30’ to 55°
Materials: Suitable for carbon steel, alloys, and stainless steel
Power Supply: Electric 3 phase 380V 50-60Hz
Noise Level: Completely silent operation

Features:

Variable Head: Allows quick adjustment of the bevel angle without additional accessories.
Adjustable Trolley: Hydraulic adjustable lifting trolley for handling large plates.
Versatility: Capable of working on both small strips and large plates.

Performance:

Bevelling Speed: 1.1 to 2.2 m/min (3.4 to 6.8 surface feet/min)
Electric Motor Power: 2.2 to 3.1 kW
Minimum Plate Width: 90 mm (3.54 inches)
Machine Weight: 340 kg

Optional Features: Different types of milling cutters are available, varying in tooth design, material, and hardness, depending on the steel plate material.

Additional Notes: Different voltage options are available upon request.

Catalog excerpts

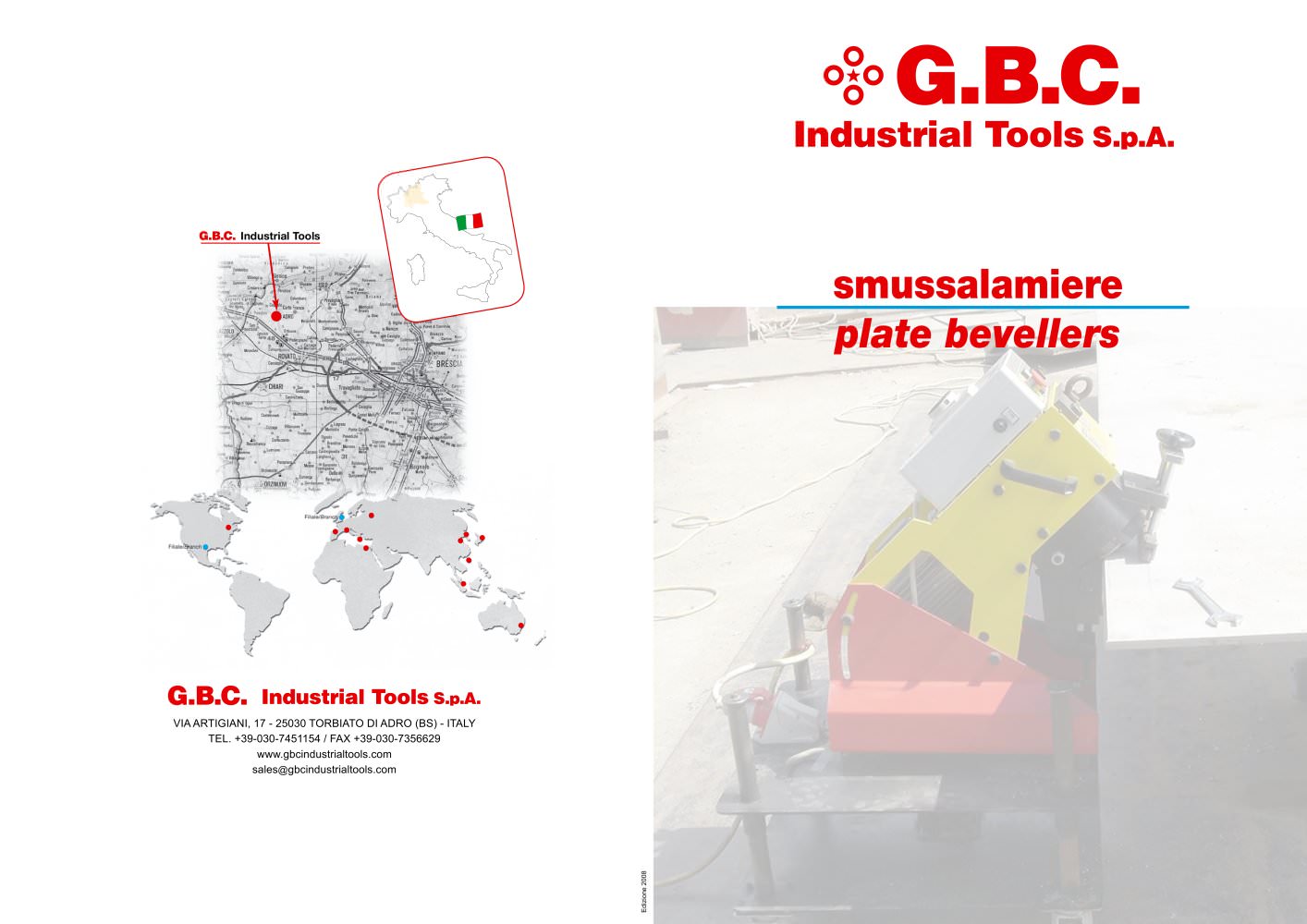

VIA ARTIGIANI, 17 - 25030 TORBIATO DI ADRO (BS) - ITALYTEL. +39-030-7451154 / FAX +39-030-7356629www.gbcindustrialtools.comsales > @ gbcindustrialtools.com > Edizione 2008 size="-2">

Open the catalog to page 1

PESO E DIMENSIONI RIDOTTI > RUPPO RULLO PER VARI ANGOLI DI DI MANOVRA ECCEZIONALE > SMUSSO PU ESSERE SPOSTATA A MANO DALLA SMUSSATURA DI BANDELLE > OLLER ASSEMBLY FOR SEVERAL STRETTE A FOGLI DI LAMIERA DI > SENZA MEZZI > BEVEL ANGLES ALLOYS AND STAINLESS STEEL > REDUCED WEIGHT AND DIMENSIONS ALLOW TO > CAN BE MOVED BY HAND FROM STRIP PLATES BEVELLING TO BIG SIZE PLATES WITHOUT USE OF CRANE OF ANY LIFTING DEVICE >

Open the catalog to page 2

ESEGUE SMUSSI SU PIANI DI LAMIERA CON DIVERSI > ANGOLI VARIANDO INCLINAZIONE > L CARRELLO IDRAULICO REGOLABILE IN ALTEZZA CON RUOTE PIVOT TANTI DELLA FRESA CHE PERMETTE ALLA > ҈ INDICATO PER FOGLI DI LAMIERA DI MACCHINA DI SCORRERE IN AUTO > GRANDI DIMENSIONI MATICO SENZA ALCUNA FATICA PER L > YDRAULIC ADJUSTABLE LIFTING TROL LEY AVAILABLE FOR BEVELLING OF BIG RANGE > 1 SIZE PLATES MACHINE GIVES YOU A CLEAN BEVELLED SURFACE SAVING TIME AND MONEY > THIS MODEL OFFERS AUTOMATIC SELF FEEDING OF THE PLATE > FOR THE FAST PRODUCTION BEVELS > VARIOUS ANGLES FROM > DEGREES CAN BE MACHINED ON DIFFERENT...

Open the catalog to page 3

ESEGUE SMUSSI SU PIANI DI LAMIERA CON DIVERSI ANGOLI > Angolo di smusso (a) PROF.MAX DI SMUSSO (L) L CARRELLO IDRAULICO REGOLABILE VARIANDO L > INCLINAZIONE DELLA > Bevel angle MAX DEPTH OF BEVEL IN In piu' passate / several steps ALTEZZA CON RUOTE PIVOT TANTI TESTA > ADATTA PER LAVORARE > ҈ INDICATO PER FOGLI DI LAMIERA DI BANDELLE STRETTE E FOGLI DI > Acc.carbonio Acc.inox GRANDI DIMENSIONI LAMIERA DI GRANDI DIMENSIONI > Carbon steel Stainless steel 2230' 18mm18mm17mm YDRAULIC ADJUSTABLE LIFTING 30а TROLLEY AVAILABLE FOR BEVELLING RANGE > 1 BEVEL OF STEEL PLATES FROM > ALLOYS AND > a STAINLESS...

Open the catalog to page 4

ESEGUE SMUSSI SU PIANI DI LAMIERA CON DIVERSI > ANGOLI VARIANDO INCLINAZIONE DELLA TESTA > AVANZAMENTO ҈ AUTOMATICO GRAZIE ALL > ARRELLO REGOLABILE IN ALTEZZA E DELLA FRESA CHE PERMETTE ALLA > RUOTE PIVOTTANTI INDICATO PER FOGLI MACCHINA DI SCORRERE IN AUTO > DI LAMIERA DI GRANDI DIMENSIONI MATICO SENZA ALCUNA FATICA PER > YDRAULIC ADJUSTABLE LIFTING TROLLEY AVAILABLE FOR BEVELLING OF BIG SIZE PLATES MACHINE GIVES YOU A CLEAN BEVELLED SURFACE SAVING TIME AND MONEY > THIS MODEL OFFERS AUTOMATIC SELF FEEDING OF THE PLATE > THE FAST PRODUCTION BEVELS > VARIOUS ANGLES FROM > DEGREES CAN BE MACHINED...

Open the catalog to page 5

ESEGUE SMUSSI SU PIANI DI LAMIERA > CON DIVERSI ANGOLI VARIANDO L > INCLINAZIONE DELLA TESTA > ADATTA PER LAVORARE BANDELLE > ARRELLO REGOLABILE IN ALTEZZA E STRETTE E FOGLI DI LAMIERA DI > Angolo di smusso (a) PROF.MAX DI SMUSSO (L) RUOTE Bevel angle MAX DEPTH OF BEVEL PIVOTTANTI INDICATO PER FOGLI GRANDI DIMENSIONI > In piu' passate / several steps DI LAMIERA DI GRANDI DIMENSIONI Acc.carbonio Acc.inox Carbon steel Stainless steel YDRAULIC ADJUSTABLE LIFTING 2230'30а3730' 26mm26mm22mm TROLLEY AVAILABLE FOR BEVELLING OF BIG SIZE PLATES RANGE > 5 BEVEL OF STEEL PLATES FROM > DIFFERENT BEVEL ANGLES...

Open the catalog to page 6
