GBC Orbital Pipe Saw

Product catalog summary

Overview
The document introduces GBC's new bench orbital pipe saws, designed for cutting and beveling various metal pipes. These tools offer a practical and economical solution for precise, perpendicular, and burr-free cuts.

Specifications

Power Supply: 220V - 50 Hz
Motor Power: 2000 W (2.7 HP)
Variable Rotating Speed
Materials: Carbon steel, stainless steel, and others

Technical Features

Nominal Diameter Range: 1/4" - 12"
Working Range: 6 mm - 326 mm
Wall Thickness: 1 mm - 10 mm
Speed: 200 - 900 rpm
Max Noise Level: 75 dB
Weight: 25 kg - 195 kg

Advantages

Burr-free right-angle cuts
Cold cutting without thermal alterations
Easy and quick execution with one rotation
Simultaneous cutting and beveling

Optional Features

Pipe Length Gauge Bar
Motorized Rotation Kit

Additional Information
Different voltage and frequency options are available upon request. The saws are equipped with a powerful electric motor and speed regulator, suitable for various pipe diameters and thicknesses.

Catalog excerpts

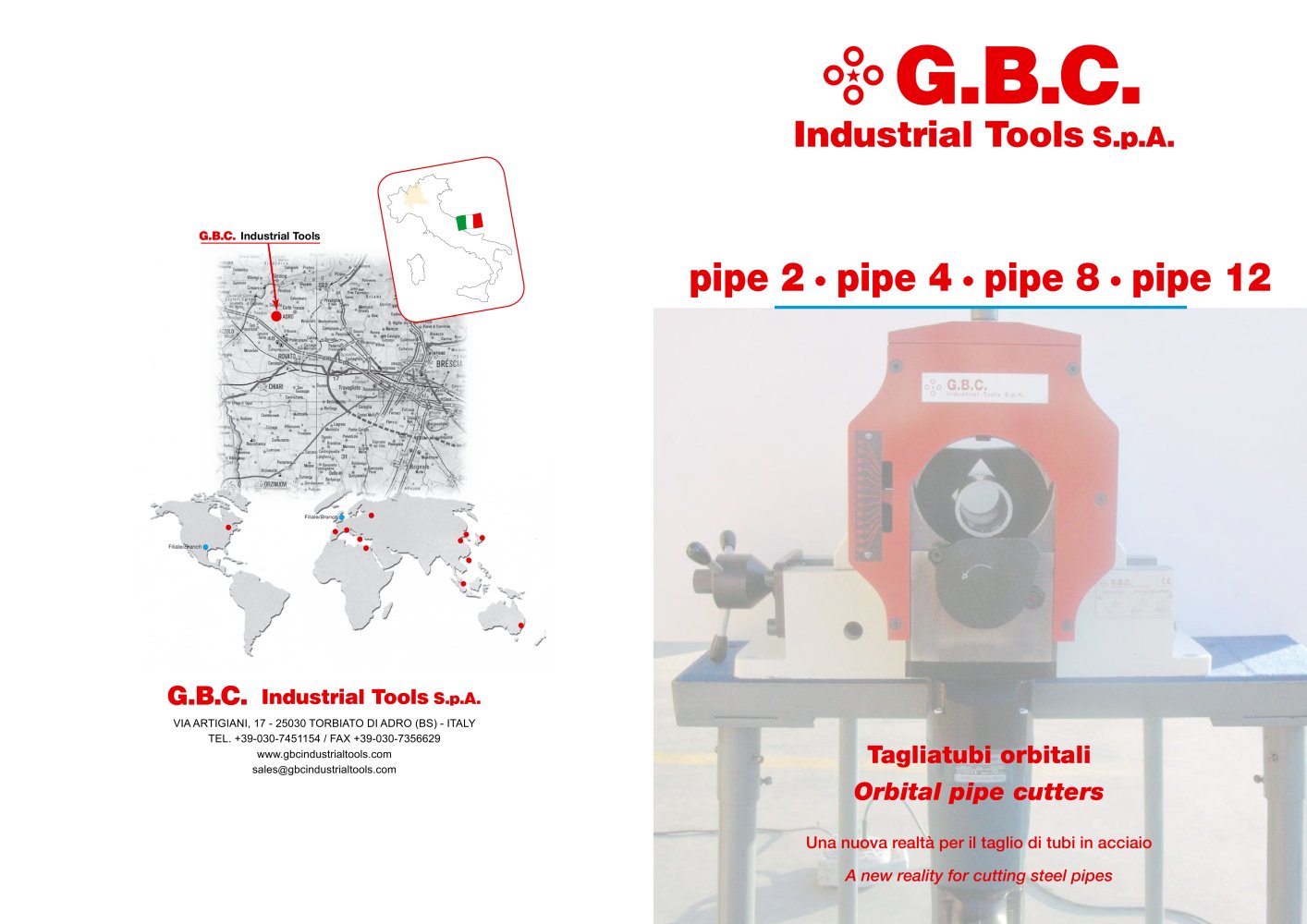

Industrial Tools pipe 2 > Uʊ pipe 4 > Uʊ pipe 8 > Uʊ pipe 12 > VIA ARTIGIANI, 17 - 25030 TORBIATO DI ADRO (BS) - ITALYTEL. +39-030-7451154 / FAX +39-030-7356629www.gbcindustrialtools.comsales @ gbcindustrialtools.com Tagliatubi orbitali Orbital pipe cutters Una nuova realt per il taglio di tubi in acciaio A new reality for cutting steel pipes size="-3">

Open the catalog to page 1

Max noise level dB 75 75 75 75 VELOCIT DIROTAZIONE VARIABILE Minimo diametro interno mm 7 9 64 192 Min. pipe diameter mm 7 9 64 192 Peso kg 25 85 140 195 weight kg 25 85 140 195 POWER > Z ELECTRIC MOTOR POWER > RESE DA TAGLIO E SMUSSO VARIABLE ROTATING SPEED > LUNGHEZZA TUBO

Open the catalog to page 2
