Flange Facer SPIDER 42

Product catalog summary

Overview: The document provides technical specifications and operational details for the GBC Spider 42, a flange facing machine designed for machining and repairing flange surfaces and seal grooves. It highlights the machine's capabilities, materials it can work with, and its technical features.

Specifications:

Working Range: Flange diameters from 12” to 42” (303 mm to 1066 mm).
Materials: Suitable for carbon steel, alloys, and stainless steel.
Power Source: Pneumatic, with an air motor power of 1.9 Hp (1.4 kW).
Air Pressure: 6.0 Bar (90 psi).
Air Consumption: 1.4 m³/min (49.4 cfm).
Weight: 159 kg (349 lbs).

Functions:

Flange facing and seal groove machining.
Ring joint machining.

Features:

Internally mounted with a self-centering system for quick and efficient setup.
Variable autofeed rates for different surface roughness finishes.
Two-piece mounting system for precise centering, even in tight spaces.
Supplied with a turning arm, service wrenches, drawings, instruction manual, and warranty certificate.

Technical Features:

Minimum Working Diameter: 11.95” (303 mm).
Maximum Working Diameter: 56” (1422.4 mm).
Radial Toolbox Travel: 20” (508 mm).
Vertical Toolbox Travel: 2” (51 mm).
Feed Rate: 0.003 to 0.03 inch/rev (0.1 to 0.8 mm/rev).

Additional Information: The machine is delivered in a wooden box for safe transportation and storage, ensuring all necessary components and documentation are included.

Catalog excerpts

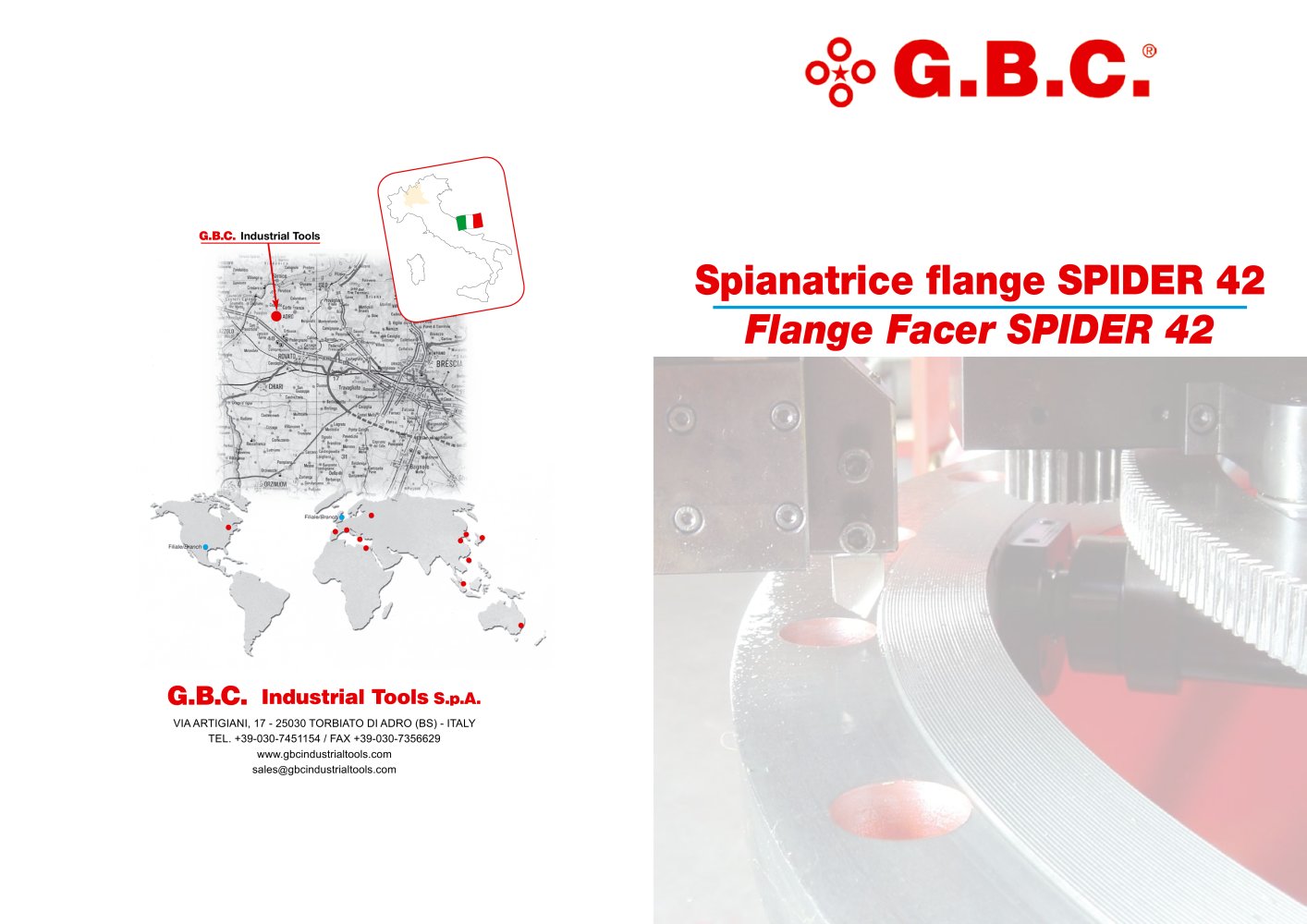

Via Artigiani, 17 - 25030 Torbiato di Adro (BS) - ITA LY Tel. +39-030-7451154 / Fax +39-030-7356629 www.gbcindustrialtools.com [email protected] Industrial Tools Spianatrice flange spider 42 Flange Facer spider 42

Open the catalog to page 1

Macchina per esecuzione spianatura e rigatura flange con sistema di montaggio e bloccaggio all’interno della flangia. La nostra architettura e la posizione del motore, consentono di avere sempre la minima distanza tra il punto di asportazione truciolo ed il punto di trasmissione moto, con vantaggi quali assenza di vibrazione ed elevata velocità di taglio. Internally mounted flange facing and seal groove machining unit. Our multi position motor spotting always allow minimum distance between cutting point and power transmission point, with benefits as no chattering and higher cutting speed. GBC...
