TUBE CLAMPS

TUBE CLAMPS

Product catalog summary

Overview
Gates introduces DIN 3015 clamps to its hydraulic portfolio, allowing customers to source routing components from the same supplier as hoses and tube fittings. This integration ensures a simpler and more consistent sourcing approach without altering existing specifications or standards.

Features and Benefits

Compliance with DIN 3015 standards.
Available in standard, twin, and heavy series.
Metal parts feature ZnNi plating for enhanced durability.
Ensures secure installations.

When to Choose Gates DIN 3015 Clamps

When secure and stable routing is necessary.
When DIN-compliant, standardized clamping is required.
When hydraulic connections are part of a complete system solution.
When consistency across hoses, fittings, and clamping components is important.

Product Specifications

Series: Standard, Twin, Heavy
DIN Groups: 0 to 8 (Standard), 1 to 10 (Twin), 1 to 5 (Heavy)
Size Range: 6 mm to 102 mm (Standard), 6 mm to 406 mm (Twin), 6 mm to 42 mm (Heavy)
Inner Surface: Profiled or smooth
Material Options: Polypropylene (PP), Polyamide (PA), Aluminium (AL), Thermoplastic elastomer (TPE)
Finish: Zinc-nickel for metal parts; phosphated for welding parts
Mounting Options: Welding plates, Mounting rails (C-profile), Cover plates, Hexagon head bolts, Socket cap screws, Stacking bolts & securing plates

Portfolio Fit
Completes the Gates port-to-port hydraulic offering through tube securing.

End-Markets

Industrial hydraulics
Manufacturing
Mobile and off-highway equipment
Process and infrastructure equipment

Catalog excerpts

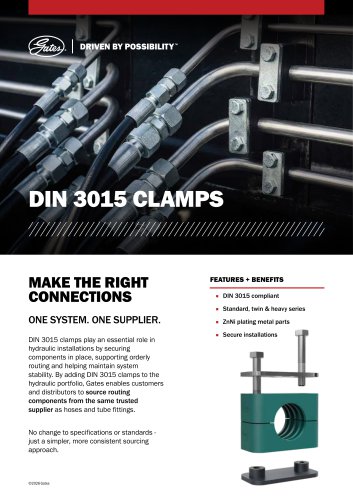

DIN 3015 CLAMPS MAKE THE RIGHT CONNECTIONS ONE SYSTEM. ONE SUPPLIER. DIN 3015 clamps play an essential role in hydraulic installations by securing components in place, supporting orderly routing and helping maintain system stability. By adding DIN 3015 clamps to the hydraulic portfolio, Gates enables customers and distributors to source routing components from the same trusted supplier as hoses and tube fittings. No change to specifications or standards just a simpler, more consistent sourcing approach. Standard, twin & heavy series ZnNi plating metal parts Secure install

Open the catalog to page 1

PORTFOLIO FIT Completes the Gates port-to-port hydraulic offering through tube securing ■ Mobile and off-highway equipment ■ Process and infrastructure equipment WHEN TO CHOOSE GATES DIN 3015 CLAMPS ■ Need for secure, stable routing ■ DIN-compliant, standardised clamping is required ■ Hydraulic connections are sourced as part of a complete system solution ■ Consistency across hose, fittings, and clamping components matters SIMPLER SOURCING BEHIND EVERY CONNECTION

Open the catalog to page 2
