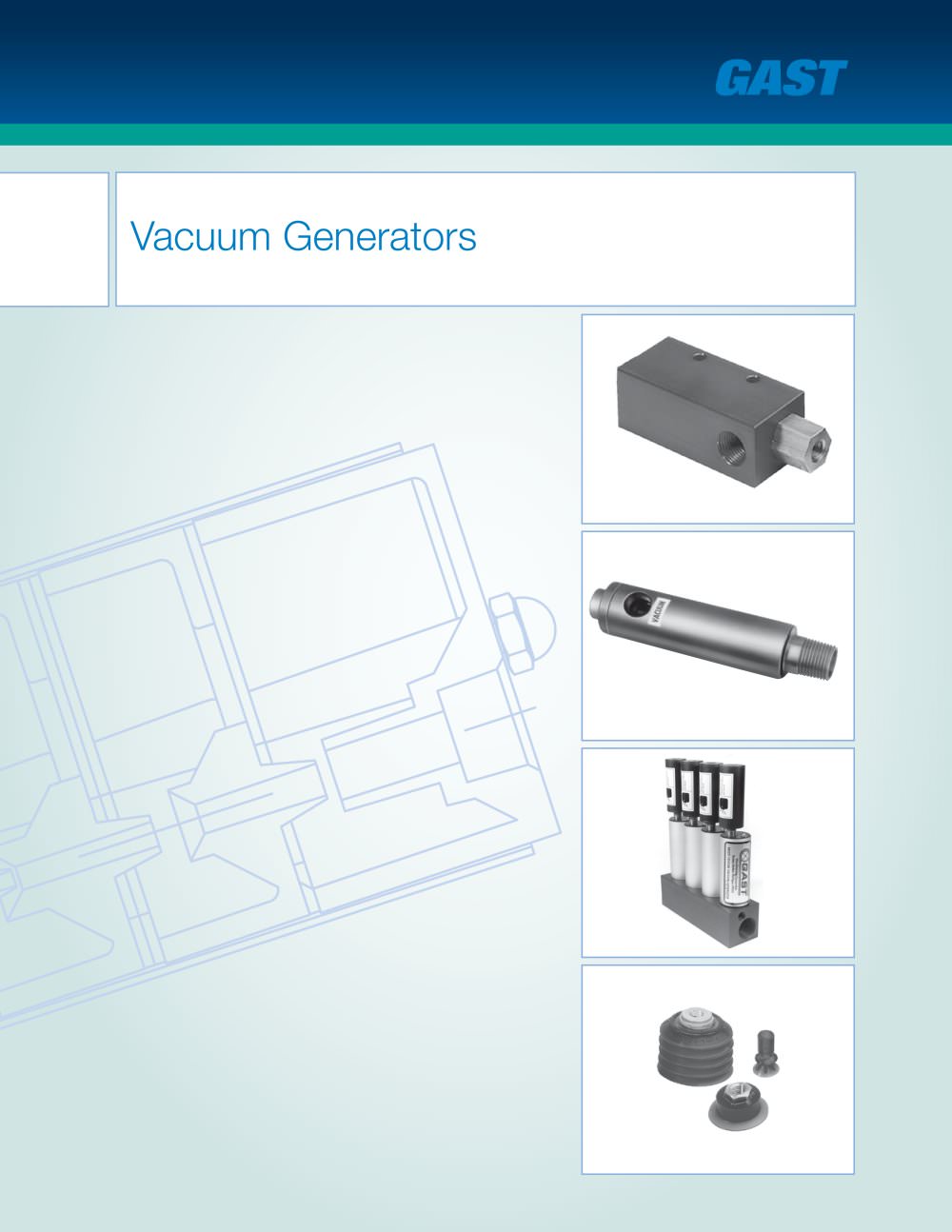

Vacuum Generators - 2

The Gast The Gast Group Difference Group Difference For over 90 years, Gast Manufacturing has been providing innovative air solutions to a broad breadth of customers. With the relatively recent addition of JUN-AIR, we have expanded our capabilities and formed, “The Gast Group.” Together, our diverse engineering background and pneumatic experience allow us to provide both component and system solutions to meet all of your pneumatic needs...all backed by our strong commitment to quality and customer support. Products for Almost Any Application – Worldwide We offer an extensive and versatile...

Open the catalog to page 2
Vacuum Generators - 3

Why use a Gast Vacuum Generator? Compressed Air Driven Low Air Consumption GAST vacuum generators are easy to install. They operate efficiently on shop air and avoid the possible spark associated with electric motors on critical applications. And, there’s no RF noise generated to affect electrical/electronic systems either. Multi‑venturi design improves efficiency to achieve 90% vacuum (27 inHg against a barometric pressure of 29.92”) while attaining high vacuum flow rates. Economical to Operate Expect extra long life with no lubrication required. The innovative Gast multi‑venturi design...

Open the catalog to page 3
Vacuum Generators - 4

Single- and Multi-stage Product Overview The specifications listed are that of a unit at sea level with an ambient temperature of 70°F (21 °C), operating with normal electrical current conditions. The figures stated in this catalog are nominal approximations for models without accessories. Intake filters and exhaust mufflers, and the accumulation of contaminants in them during operation, will decrease the flow of air as well as the achievable pressure. The units that we list in this catalog are a small portion of what we actually make. Those listed are considered "standard units" and are...

Open the catalog to page 4
Vacuum Generators - 5

Vacuum Series Single-Stage to 27 inHg High, 99 mbar VG-005-00-00/*MG-005-00-00 Note: Unit shown without sound attenuator. 27 inHg max. vacuum, .2 CFM open flow VG-010-00-00/*MG-010-00-00 26 inHg max. vacuum, .95 CFM open flow VG-015-00-00/*MG-015-00-00 27 inHg max. vacuum, 2.2 CFM open flow VG-020-00-00/*MG-020-00-00 26 inHg max. vacuum, 4 CFM open flow *Metric models sold in Europe are fitted with metric gauges Product Dimension - with Sound Attenuators (inches, mm) Reference only PRODUCT FEATURES • Low cost vacuum source • Compact size/easy to mount • No moving parts/zero maintenance •...

Open the catalog to page 5
Vacuum Generators - 6

Vacuum Series Single-Stage to 27 inHg High, 99 mbar Product Specifications @ Suggested Operating Port Size Model Number *Metric model Product Performance Metric (mbar) Metric (mbar) 6 Gast Vacuum Generators

Open the catalog to page 6
Vacuum Generators - 7

High Flow Series Single-Stage to 17 inHg, 437 mbar Note: Unit shown without sound attenuator VG-007-00-00/*MG-007-00-00 16 inHg max. vacuum, .46 CFM open flow VG-012-00-00 16 inHg max. vacuum, 1.6 CFM open flow VG-022-00-00/*MG-022-00-00 17 inHg max. vacuum, 6.8 CFM open flow VG-340-M0-00 15 inHg max. vacuum, 34 CFM open flow *Metric models sold in Europe are fitted with metric gauges PRODUCT FEATURES Product Dimensions - with Sound Attenuators (inches, mm) Reference only • Low cost vacuum source • Compact size/easy to mount • No moving parts/zero maintenance • Quiet operation...

Open the catalog to page 7
Vacuum Generators - 8

High Flow Series Single-Stage to 17 inHg, 437 mbar Model Number Metric models Suggested @ Suggested Operating Vacuum Supply Size Port Size Product Performance Metric (mbar) Metric (mbar) Metric (mbar) 8 Gast Vacuum Generators

Open the catalog to page 8
Vacuum Generators - 9

High Vacuum Series Multi-Stage to 26 inHg, 133 mbar Note: Unit shown without sound attenuator 25 inHg max. vacuum, 6.8 CFM open flow 26 inHg max. vacuum, 12 CFM open flow 26 inHg max. vacuum, 17 CFM open flow *Metric models sold in Europe are fitted with metric gauges "These models are also available with optional viton gaskets and PRODUCT FEATURES • Lightweight Delrin® plastic construction for chemical • Quiet operation • Metric version sold in Europe are fitted with metric gauges Product Dimensions Reference only Sound Attenuators (inches, mm) Gast Vacuum Generators 9

Open the catalog to page 9
Vacuum Generators - 10

High Vacuum Series Multi-Stage to 26 inHg, 133 mbar Product Specifications Model Number @ Suggested Operating Vacuum Supply Size Port Size * Metric models Product Performance Metric (mbar) Metric (mbar) Metric (mbar) 10 Gast Vacuum Generators

Open the catalog to page 10
Vacuum Generators - 11

High Flow Series Multi-Stage to 20 inHg, 336 mbar Note: Unit shown without sound attenuator 20 inHg max. vacuum, up to 12 CFM open flow 20 inHg max. vacuum, up to 12 CFM open flow 'These models are also available with optional viton gaskets and "Metric models sold in Europe are fitted with metric gauges PRODUCT FEATURES • Lightweight Delrin® plastic construction for chemical • Quiet operation • Metric version sold in Europe are fitted with metric gauges Product Specifications Model Number Port Size * Metric models Product Dimensions (inches, mm) Reference only Gast Vacuum Generators 11

Open the catalog to page 11
Vacuum Generators - 12

High Flow Series Multi-Stage to 20 inHg, 336 mbar Product Performance Metric (mbar) Metric (mbar) 12 Gast Vacuum Generators

Open the catalog to page 12
Vacuum Generators - 13

Combined High Performance Series Product Dimension - with Sound Attenuators (inches, mm) Reference only 26 inHg max. vacuum, 36 CFM open flow 26 inHg max. vacuum, 71 CFM open flow 26 inHg max. vacuum, 158 CFM open flow PRODUCT FEATURES • Low cost compared to competitive generators with similar • Quiet operation • Constructed of chemical resistant Delrin® plastic stages Gast Vacuum Generators 13

Open the catalog to page 13
Vacuum Generators - 15

Replacement Parts Gast Vacuum Generators 15

Open the catalog to page 15
Vacuum Generators - 16

Vacuum Cups to 5 7/8" Diameter PRODUCT FEATURES • Flat and bellows options for a variety of lifting • Durable, tear-resistant vinyl material • Threaded or 'slip-fit' mounting options available Bellows style cups can tical offset motion is Flat cups with a slip style mounting should be used for light duty applications when threaded connections Flat cups with a thread- used for heavy lifting 16 Gast Vacuum Generators
