UL 2125 Listed Air Compressors

Product catalog summary

Overview: The document provides technical specifications and details for UL 2125 Listed Oilless Piston Air Compressors designed for dry sprinkler systems. These compressors are available in both tankless and tank-mounted models, meeting stringent regulatory requirements.

Specifications: The compressors are motor-mounted, eliminating the need for belts or pulleys, and are oil-free, requiring no lubrication. They feature corrosion-resistant internal parts and are compact and easy to install. The high cycle rating pressure switch ensures long life.

Models: The document lists various models, including 4LCB-46S-M450GX and 7LDE-46S-M750X, with detailed dimensional data and specifications for each model. The models vary in horsepower, voltage, and capacity, catering to different system requirements.

Performance: The compressors are capable of pumping free air to 40 PSI within 30 minutes, with capacities ranging from 90 to 800 gallons. The motor data and package options are provided for both tankless and tank-mounted configurations.

Accessories: A range of accessories is available, including check valves, pressure switches, shock/isolation mounts, and hose assemblies. These accessories enhance the functionality and installation of the compressors.

Compliance and Standards: The compressors are UL 2125 listed, tested under dry sprinkler conditions, and evaluated for use in sprinkler systems. Tank packages are ASME coded and include necessary components like gauges, pressure switches, and safety valves.

Contact Information: Gast Manufacturing Inc. provides contact details for their headquarters in the USA, as well as offices in the United Kingdom and Hong Kong, for further inquiries and support.

Catalog excerpts

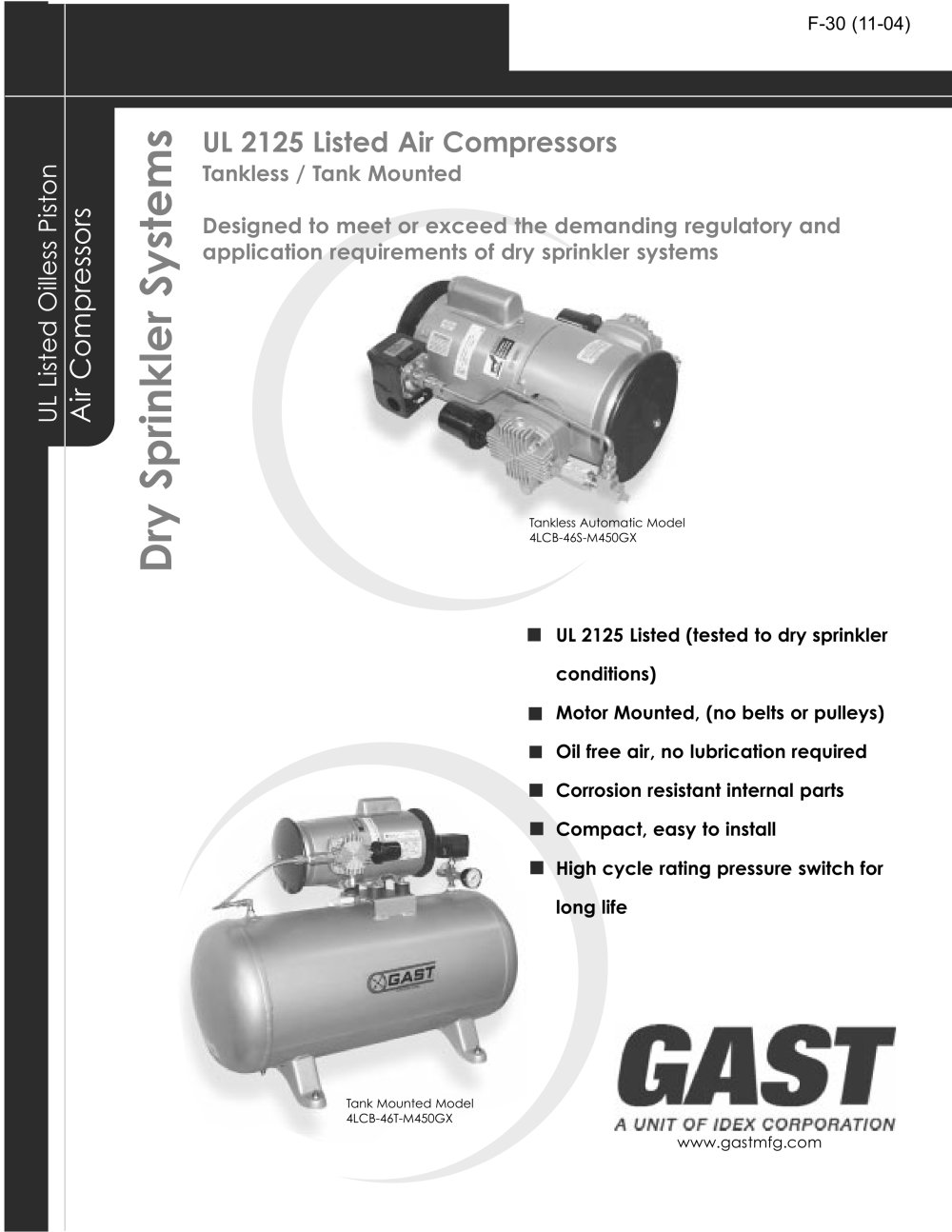

UL Listed Oilless Piston Air Compressors Dry Sprinkler Systems UL 2125 Listed Air Compressors Tankless / Tank Mounted Designed to meet or exceed the demanding regulatory and application requirements of dry sprinkler systems www.gastmfg.com UL 2125 Listed (tested to dry sprinkler conditions) Motor Mounted, (no belts or pulleys) Oil free air, no lubrication required Corrosion resistant internal parts Compact, easy to install High cycle rating pressure switch for long life Tankless Automatic Model 4LCB-46S-M450GX Tank Mounted Model 4LCB-46T-M450GX F-30 (11-04)

Open the catalog to page 1

UL Listed Oilless Piston Air Compressors for Dry Sprinkler Systems Tankless / Automatic air compressors have inlet filters, a safety valve, pressure switch (minimum switch differentials are 10-13 psig on most models) check valve, tubing and fittings The 2LAF-46S-M200EX has 6 psig minimum differential. UL Listed 2125 Oilless Piston Air Compressors for Dry Sprinkler Systems B Model 4LCB-46S-M450GX Model 7LDE-46S-M750X C A TANKLESS DIMENSIONAL DATA (IN.) Model Number A B C Pipe Size Ship Wt. 1LAA-46S-M100GX 6.03 14.66 8.31 1/4Ó NPT 22.5 2LAF-46S-M200EX 9.52 13.49 9.38 1/4Ó NPT 24.2 3LBA-46S-M300GX...

Open the catalog to page 2

Air Capacity of a System Capacity of 1Õ of pipe (Based on actual internal diameter) Diameter Gallons 1/2 in. 0.16 3/4 in. .028 1 in. .045 1 1/4 in. .078 1 1/2 in. .106 2 in. .174 2 1/2 in. .248 3 in. .383 3 in. .513 4 in. .660 5 in. 1.040 6 in. 1.501 8 in. 2.66 A SIDE VIEW FRONT VIEW B C UL Listed 2125 Oilless Piston Air Compressors for Dry Sprinkler Systems (Tank Units) Accessories UL Fire Protection Listing UL File EX5324 Evaluated to UL2125 Motor-operated air compressors for use in sprinkler systems. Tank Package ASME Coded tank mounted compressors include gauge, pressure switch (minimum switch...

Open the catalog to page 3

Gast Manufacturing Inc. World Headquarters 2550 Meadowbrook Rd. Benton Harbor, MI 49022 Ph: 269-926-6171 Fax: 269-926-8288 www.gastmfg.com United Kingdom Beach House Knaves Beach Business Centre Loudwater, High Wycombe Bucks England HP10 9SD Ph: +44 1628 551500 Fax: +44-1628 551590 www.gastltd.com Hong Kong Unit 12, 21/F, Block B New Trade Plaza 6, on Ping Street Shatin N.T. Hong Kong Ph: 852-2690-1008 Fax: 852-2690-1012 www.gasthk.com www.gastmfg.com
