Group: GARDNER DENVER
Catalog excerpts

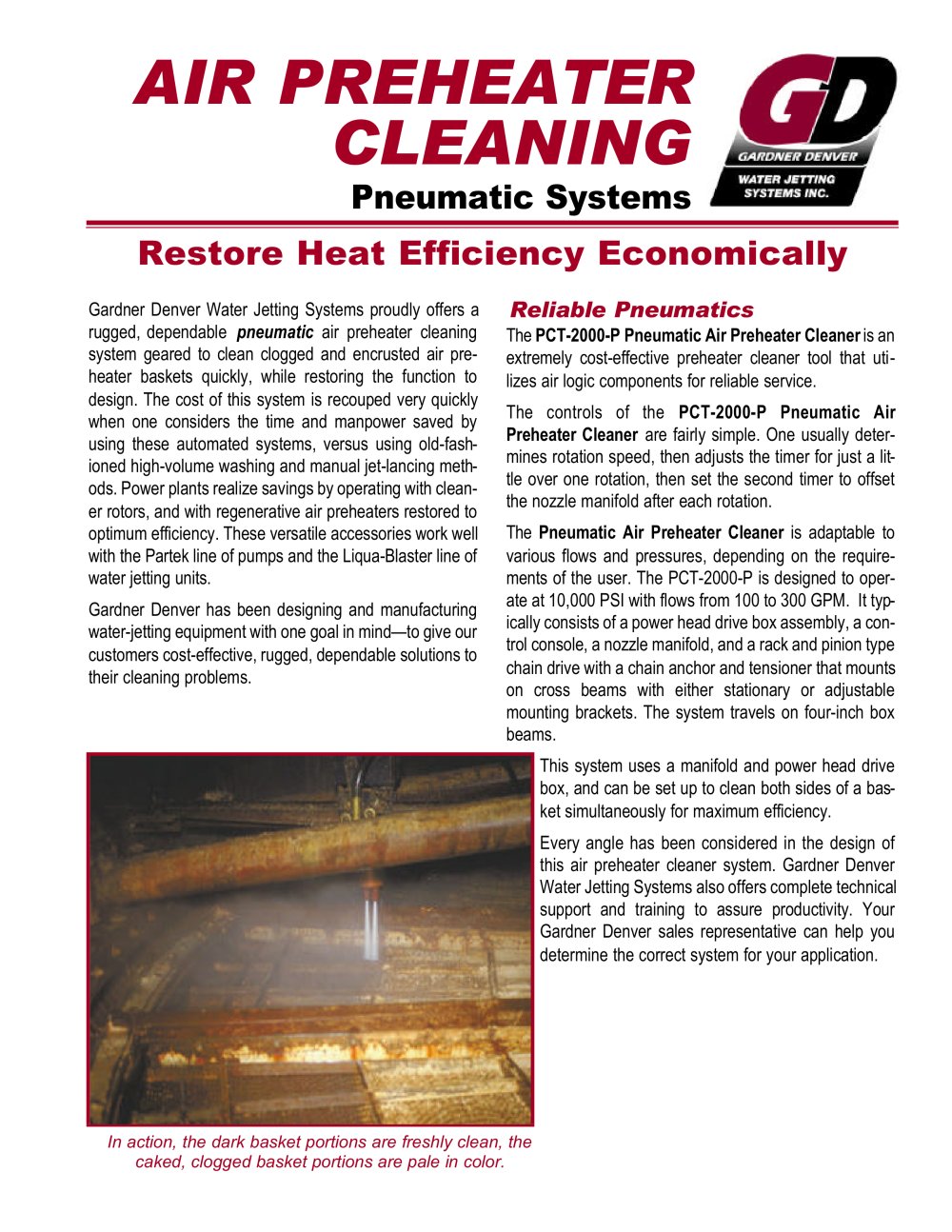

Gardner Denver Water Jetting Systems proudly offers arugged, dependable > pneumatic air preheater cleaningsystem geared to clean clogged and encrusted air pre- heater baskets quickly, while restoring the function todesign. The cost of this system is recouped very quicklywhen one considers the time and manpower saved by using these automated systems, versus using old-fash- ioned high-volume washing and manual jet-lancing meth- ods. Power plants realize savings by operating with clean-er rotors, and with regenerative air preheaters restored tooptimum efficiency. These versatile accessories work well with the Partek line of pumps and the Liqua-Blaster line of water jetting units.Gardner Denver has been designing and manufacturingwater-jetting equipment with one goal in mindto give ourcustomers cost-effective, rugged, dependable solutions totheir cleaning problems. The PCT-2000-P Pneumatic Air Preheater Cleaner is anextremely cost-effective preheater cleaner tool that uti-lizes air logic components for reliable service. The controls of the PCT-2000-P Pneumatic AirPreheater Cleaner Pneumatic Air Preheater Cleaner are fairly simple. One usually deter-mines rotation speed, then adjusts the timer for just a lit- tle over one rotation, then set the second timer to offset the nozzle manifold after each rotation. The is adaptable tovarious flows and pressures, depending on the require-ments of the user. The PCT-2000-P is designed to oper- ate at 10,000 PSI with flows from 100 to 300 GPM. It typ- ically consists of a power head drive box assembly, a con- trol console, a nozzle manifold, and a rack and pinion typechain drive with a chain anchor and tensioner that mountson cross beams with either stationary or adjustable mounting brackets. The system travels on four-inch box beams. This system uses a manifold and power head drivebox, and can be set up to clean both sides of a bas-ket simultaneously for maximum efficiency. Every angle has been considered in the design ofthis air preheater cleaner system. Gardner Denver Water Jetting Systems also offers complete technical support and training to assure productivity. Your Gardner Denver sales representative can help youdetermine the correct system for your application. > In action, the dark basket portions are freshly clean, thecaked, clogged basket portions are pale in color. size="-1">
Open the catalog to page 1All Gardner Denver Water JettingSystems Preheater Cleaner Units arequality constructed and designed to be rugged and easy to use. Featurescommon to most units include: > Four per packaged unit. Attaches to 4" square tubing at any location. Power head movement control. Beam mounts. > Used for mounting chain tensioner orchain anchor. Permits dual-side simultaneous bas-ket cleaning operation. Re-set switch. Movement timer (.3 to 10 seconds). Limits operator exposure to pre-heater cleaning effluent. Dwell timer (.3 to 10 minutes). > Pressure gauge. Two per packaged unit. When properly used,...
Open the catalog to page 2A PPLICATION-BASED WATER-JETTING SYSTEMS. > The FRL assembly (right) protects the system circuits and is easy to service. The control console (below) is simple to operate. One need only to determine rotation speed of the preheater rotor, then adjust thetimer on the left for just over one rotation, thenset the dwell timer on the right to offset the nozzle manifold. The Gardner Denver PneumaticPreheater Cleaner offers ease of set-up, adjustment, operation and main-tenance. The nozzle manifold (shownon the beam) is standard with four 1"NPT inlets and four 3/4" NPT nozzle ports. This system can...
