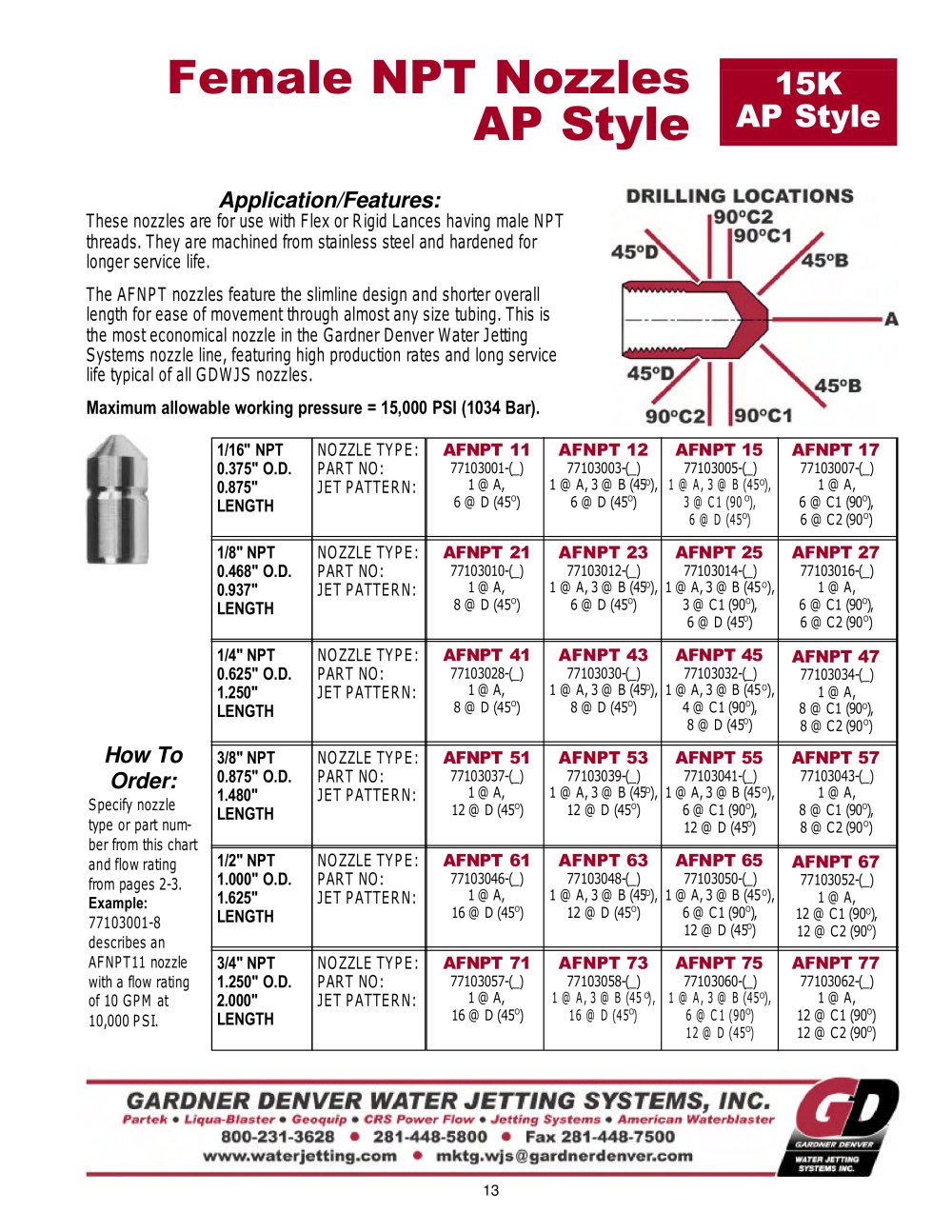

15K Tube Cleaning Nozzles catalog pages

15K Tube Cleaning Nozzles catalog pages

Product catalog summary

Overview: This document outlines the specifications and ordering details for various Female NPT Nozzles used in high-pressure water jetting systems. These nozzles are compatible with Flex or Rigid Lances with male NPT threads and are constructed from stainless steel for enhanced durability.

Specifications: The nozzles are categorized into types such as AFNPT, FNPT, MGFNPT, BTNPT, PFNPT, EVNPT, and TLXNPT, each with unique part numbers and jet patterns. All nozzles support a maximum working pressure of 15,000 PSI (1034 Bar).

Design Features:

AFNPT Nozzles: Slimline design for easy navigation through tubing.
FNPT Nozzles: Equipped with wrench flats for easy installation and a compact design for increased productivity.
MGFNPT Nozzles: Combine cleaning power with pulling force.
BTNPT Nozzles: Ultra-compact for cleaning small diameter tubes.
PFNPT Nozzles: Efficient for cleaning heavily fouled tubes.
EVNPT Nozzles: Rounded nose for effective penetration and blockage removal.
TLXNPT Nozzles: Staggered orifices for 360-degree coverage and maximum cleaning power.

Ordering Information: Orders should specify the nozzle type or part number and the flow rating. Examples are provided to guide the ordering process.

Dimensions: The document provides the outer diameter (O.D.) and length for each nozzle size, ranging from 1/16" NPT to 1/2" NPT.

Additional Nozzle Types: The document also covers MMS and MNPT nozzles, designed for use with mechanical type Rigid Tubing or Rigid Pipe Lances and Flex or Rigid Lances with female NPT threads, respectively. Both types are made from stainless steel and support a maximum working pressure of 15,000 PSI (1034 Bar).

Advanced Nozzle Technology: Turbo Spinning Nozzles are introduced, featuring patented spiral grooves for a 360-degree cleaning pattern. These nozzles offer various sleeve combinations for different cleaning tasks, including forward jets for cutting, center jets for polishing, and backward jets for pulling and flushing.

Key Features:

High productivity and long service life due to unique design and materials.
Wrench flats for easy installation.
Compact design ensures the nozzle diameter does not exceed the lance diameter.

Catalog excerpts

15K Tube Cleaning Nozzles catalog pages -3

77107001-(_)1 @ A,2 @ B (45 77107002-(_)1 @ A,2 @ B (45 77107003-(_)1 @ A,3 @ B (45 77107004-(_)1 @ A,2 rows 6D (45 > O ),3 rows 4D (30 > O ),3 rows 4D (60 > O ),3 rows 6D (45 > O ) > O ) > O ) > O ) > 77107021-(_)1 @ A,3 @ B (45 77107022-(_)1 @ A,3 @ B (45 77107023-(_)1 @ A,3 @ B (45 77107024-(_)1 @ A,2 rows 12D (45 > O ),3 rows 8D (30 > O ),3 rows 8D (60 > O ),3 rows 8D (45 > O ) > O ) > O ) > O ) > 77107026-(_)1 @ A,3 @ B (45 77107027-(_)1 @ A,3 @ B (45 77107028-(_)1 @ A,3 @ B (45 77107029-(_) 1 @ A, 8 @ C (90 > O )2 rows 12D (45 > O ),3 rows 8D (30 > O ),3 rows 8D (60 > O ),3 rows 8D (45...
