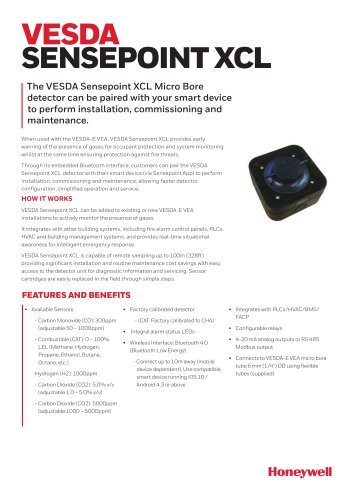

VESDA SENSEPOINT XCL The VESDA Sensepoint XCL Micro Bore detector can be paired with your smart device to perform installation, commissioning and maintenance. When used with the VESDA-E VEA, VESDA Sensepoint XCL provides early warning of the presence of gases for occupant protection and system monitoring whilst at the same time ensuring protection against fire threats. Through its embedded Bluetooth interface, customers can pair the VESDA Sensepoint XCL detector with their smart device (via Sensepoint App) to perform installation, commissioning and maintenance, allowing faster detector configuration, simplified operation and service. HOW IT WORKS VESDA Sensepoint XCL can be added to existing or new VESDA-E VEA installations to actively monitor the presence of gases. It integrates with other building systems, including fire alarm control panels, PLCs, HVAC and building management systems, and provides real-time situational awareness for intelligent emergency response. VESDA Sensepoint XCL is capable of remote sampling up to 100m (328ft) providing significant installation and routine maintenance cost savings with easy access to the detector unit for diagnostic information and servicing. Sensor cartridges are easily replaced in the field through simple steps. FEATURES AND BENEFITS • Available Sensors: - Carbon Monoxide (CO): 300ppm (adjustable 50 – 1000ppm) - Combustible (CAT): 0 – 100% LEL (Methane, Hydrogen, Propane, Ethanol, Butane, Octane, etc.) Hydrogen (H2): 1000ppm - Carbon Dioxide (CO2): 5.0% v/v (adjustable 1.0 – 5.0% v/v) - Carbon Dioxide (CO2): 5000ppm (adjustable 1000 – 5000ppm) • Factory calibrated detector - (CAT: Factory calibrated to CH4) • Integral alarm status LEDs • Wireless Interface: Bluetooth 4.0 (Bluetooth Low Energy) - Connect up to 10m away (mobile device dependent). Use compatible smart device running iOS 10 / Android 4.3 or above • Integrates with PLCs/HVAC/BMS/ FACP • Configurable relays • 4-20 mA analog outputs or RS 485 Modbus output • Connects to VESDA-E VEA micro bore tube 6 mm (1/4”) OD using fl

High tech manufacturing Universities and schools Chemical / Pharmaceutical Indoor air quality monitoring Battery rooms Fuel storage areas Confined spaces Food & beverage Refrigerated systems (leak detection) • Commercial premises • Car parks (underground / enclosed) VESDA Sensepoint XCL is available with either a 4-20 mA analog output or Modbus RTU, both versions being equipped with relays. The result is a flexible solution that can be easily incorporated into legacy systems as well as new installations. VESDA Sensepoint XCL is designed to be inserted in-line to the VESDA-E VEA microbore tube...

VESDA Sensepoint XCL - Micro Bore ASD System gas detectors come complete with the main detector unit (pre- installed with sensor cartridge), two cable glands, calibration/flow cap, flexible tube and tube clips to connect to VEA tubing. Two variants are available based on detector outputs (mA analog, Modbus RTU). *These Listings/Approvals are owned by Xtralis, a Honeywell company. They are for the products covered in this document. For more information Contact your Business Manager All technical data is correct at the time of publication and is subject to changes without notice. All trademarks...
