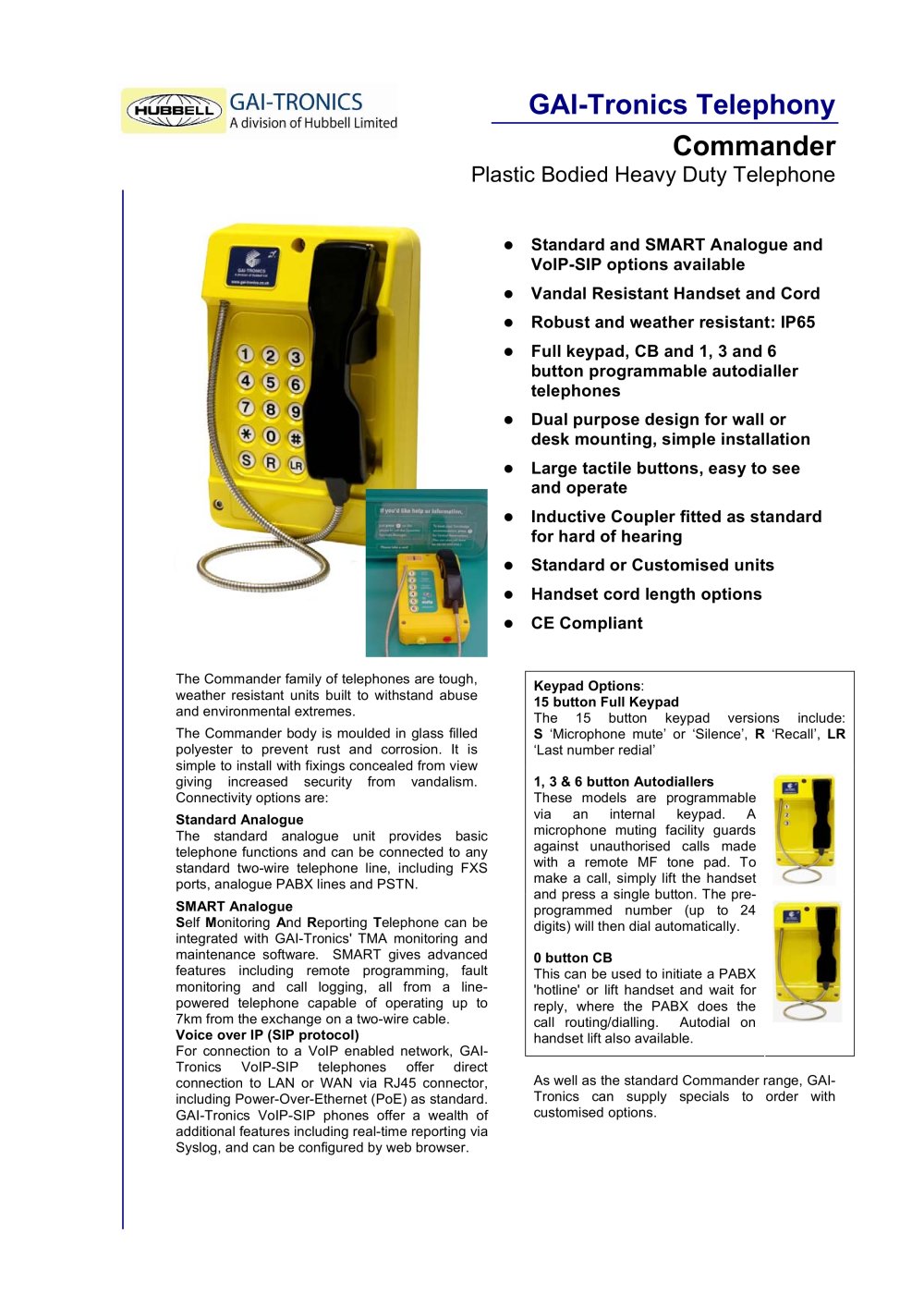

GAI-Tronics Telephony Commander Plastic Bodied Heavy Duty Telephone Standard and SMART Analogue and VoIP-SIP options available Vandal Resistant Handset and Cord Robust and weather resistant: IP65 Full keypad, CB and 1, 3 and 6 button programmable autodialler telephones Dual purpose design for wall or desk mounting, simple installation Large tactile buttons, easy to see and operate Inductive Coupler fitted as standard for hard of hearing Standard or Customised units Handset cord length options CE Compliant The Commander family of telephones are tough, weather resistant units built to withstand abuse and environmental extremes. The Commander body is moulded in glass filled polyester to prevent rust and corrosion. It is simple to install with fixings concealed from view giving increased security from vandalism. Connectivity options are: Standard Analogue The standard analogue unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including FXS ports, analogue PABX lines and PSTN. SMART Analogue Self Monitoring And Reporting Telephone can be integrated with GAI-Tronics' TMA monitoring and maintenance software. SMART gives advanced features including remote programming, fault monitoring and call logging, all from a linepowered telephone capable of operating up to 7km from the exchange on a two-wire cable. Voice over IP (SIP protocol) For connection to a VoIP enabled network, GAITronics VoIP-SIP telephones offer direct connection to LAN or WAN via RJ45 connector, including Power-Over-Ethernet (PoE) as standard. GAI-Tronics VoIP-SIP phones offer a wealth of additional features including real-time reporting via Syslog, and can be configured by web browser. Keypad Options: 15 button Full Keypad The 15 button keypad versions include: S ‘Microphone mute’ or ‘Silence’, R ‘Recall’, LR ‘Last number redial’ 1, 3 & 6 button Autodiallers These models are programmable via an internal keypad. A microphone muting facility guards against unauthorised calls made with a remote MF tone pad. To make a call, simply lift the handset and press a single button. The preprogrammed number (up to 24 digits) will then dial automatically. 0 button CB This can be used to initiate a PABX 'hotline' or lift handset and wait for reply, where the PABX does the call routing/dialling. Autodial on handset lift also available. As well as the standard Commander range, GAITronics can supply specials to order with customised options.
Open the catalog to page 1GAI-Tronics Telephony Commander Plastic Bodied Heavy Duty Telephone GENERAL SPECIFICATIONS Casing Material Glass filled polyester. Colours: yellow, other colours to special order Handset Material Cycoloy with stainless steel spiral cord, or curled cord Keypad Weathersealed tactile digital keypad. Silicone rubber material, resistant to most chemicals and solvents Operating temperature -20° C to +60° C Weather Resistance Up to IP65 Ringing Tone Shrill warble tone 80 dBA @ 1 metre typical Hookswitch Electronic / magnetic with no visible moving parts M.T.B.F. Calculated to have an M.T.B.F. in...
