Automotive

Product catalog summary

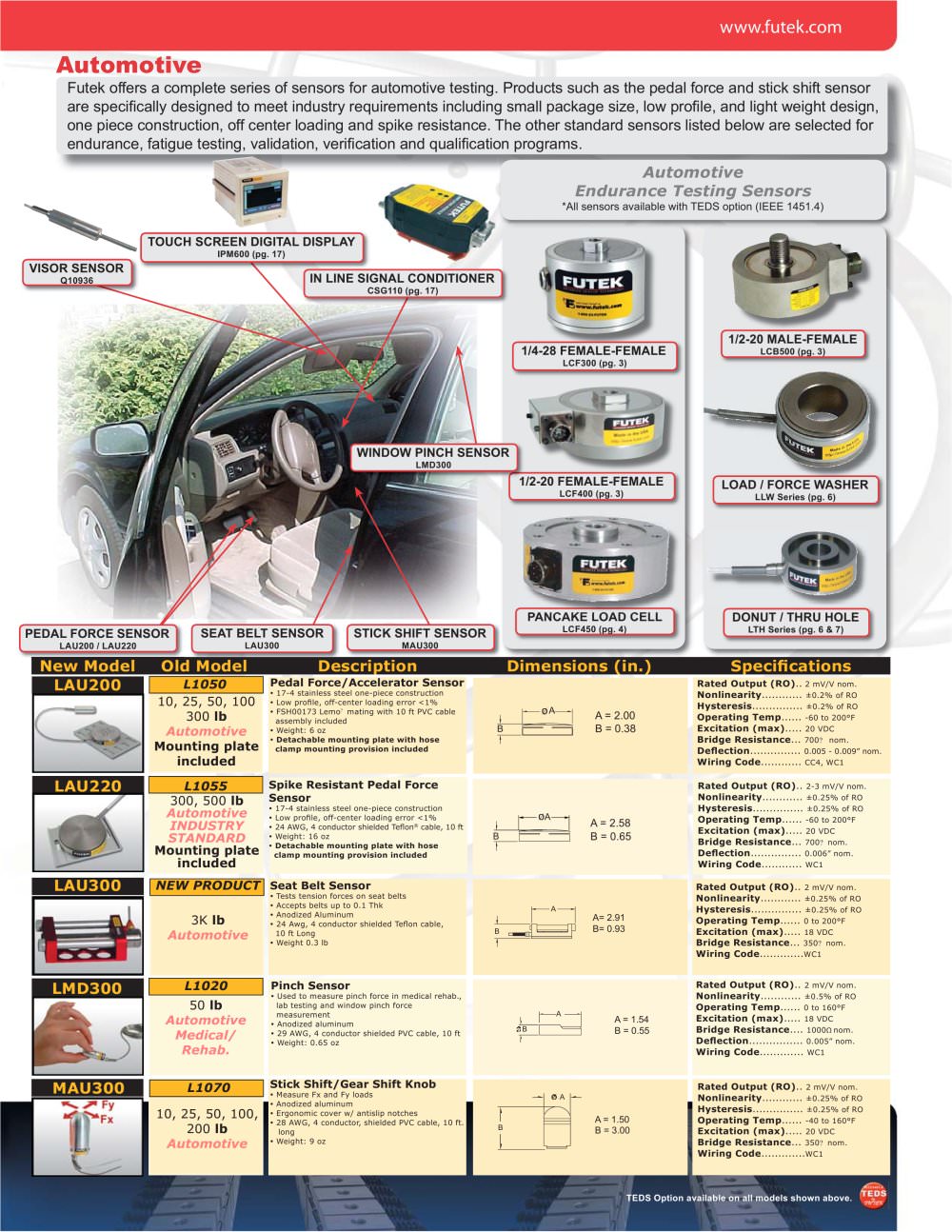

Overview: This document provides technical specifications and descriptions for various automotive sensors offered by Futek, designed for testing and validation purposes. The sensors are engineered to meet industry standards with features like small size, lightweight design, and durability.

Specifications:

Pedal Force Sensor: Made from 17-4 stainless steel with a center loading error of less than 1%. It includes a detachable mounting plate and is spike resistant. Rated output is 2 mV/V nominal with a bridge resistance of 700 ohms.
Seat Belt Sensor: Constructed from anodized aluminum, it accepts belts up to 0.1 inches thick. Rated output is 2 mV/V nominal with a bridge resistance of 350 ohms.
Stick Shift Sensor: Measures Fx and Fy loads, made from anodized aluminum with an ergonomic cover. Rated output is 2 mV/V nominal with a bridge resistance of 350 ohms.
Window Pinch Sensor: Designed for medical and rehabilitation applications, made from anodized aluminum. Rated output is 2 mV/V nominal with a bridge resistance of 1000 ohms.

Operating Conditions:

Temperature ranges from -60 to 200°F depending on the sensor type.
Maximum excitation voltage varies between 18 VDC and 20 VDC.

Additional Features:

All sensors are available with the TEDS option (IEEE 1451.4).
Various mounting provisions and ergonomic designs are included to enhance usability.

Applications: These sensors are suitable for endurance, fatigue testing, validation, verification, and qualification programs in the automotive industry.
