Plumbing Faucet Brazing Machine

Plumbing Faucet Brazing Machine
1 / 1 PageView full catalog

Plumbing Faucet Brazing Machine

Product catalog summary
Brazing Machine Specifications
  • Assembly: The machine is designed for a two-piece brass/brass faucet body.
  • Paste Filler Metal: Utilizes Fusion LHK-1205-650 with a liquidus of 1205°F (651°C).
  • Production Rate: Capable of producing 50 parts per hour with one operator.
  • Dimensions: The machine has a 72” x 72” welded steel base and a 42” diameter stainless-covered tool plate. It includes stationary outer/inner heat manifolds and a Weiss TC 220 indexer.
  • Utilities: Requires electrical 480/3/60, control voltage 24VDC, gas 192 CFH, water 1 GPM, and compressed air 37 CFM.
  • PLC: Equipped with an Allen Bradley SLC 500 with a Panel View Interface Panel.
  • Safety Features: Includes Lexan perimeter guarding on three sides with safety interlocks.
Operational Sequence
  1. Station 1: Load/Unload Assembly (brazing paste applied off-station prior to loading).
  2. Station 2: Open
  3. Stations 3-6: Heat
  4. Station 7: Air Cool
  5. Stations 8-9: Water Cool
  6. Station 10: Open

The precision heat pattern ensures the filler metal is distributed throughout the joint, resulting in leak-free joints. An applicator gun dispenses two deposits of brazing paste to the joint area.

See more

Catalog excerpts

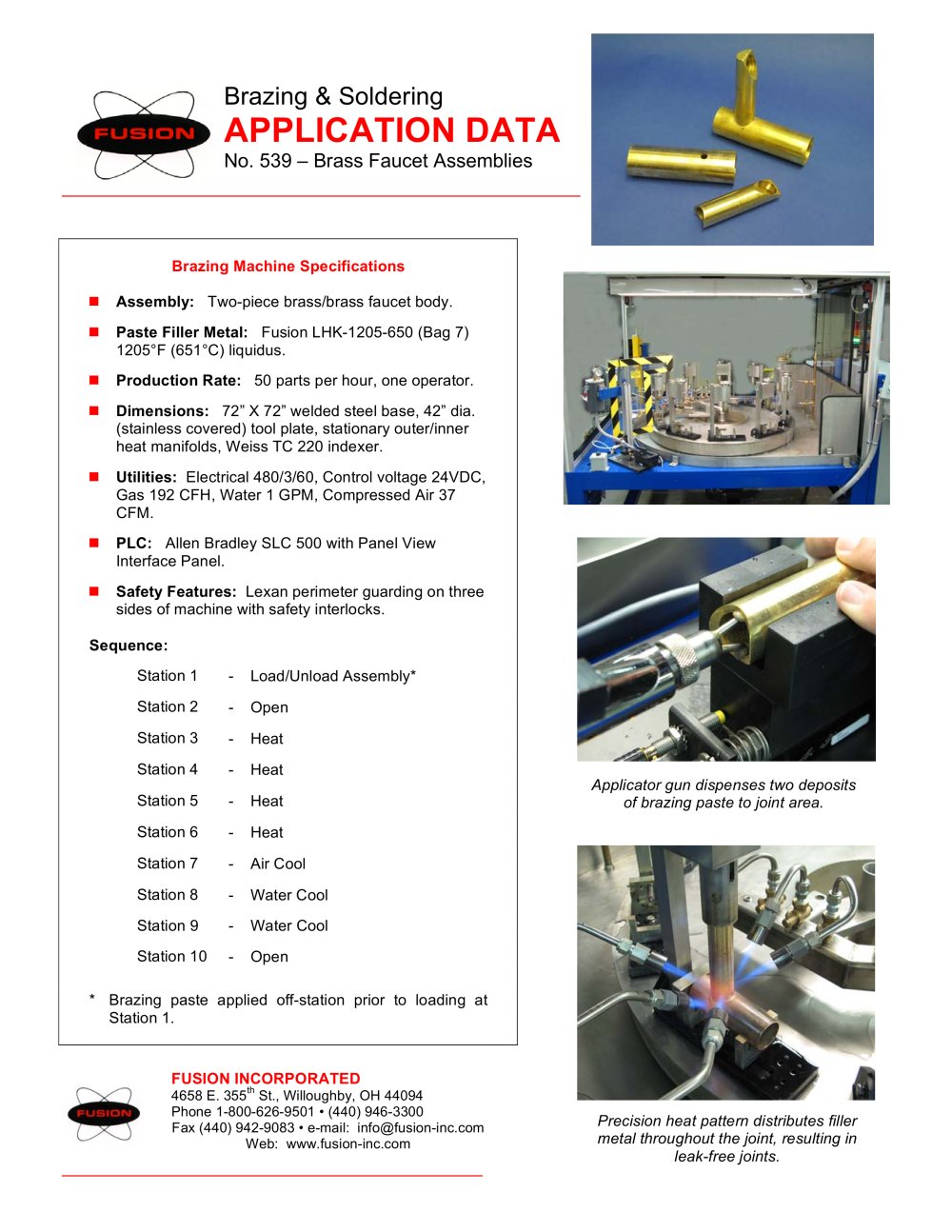

Plumbing Faucet Brazing Machine-1

Brazing & Soldering APPLICATION DATA No. 539 – Brass Faucet Assemblies FUSION INCORPORATED 4658 E. 355th St., Willoughby, OH 44094 Phone 1-800-626-9501 • (440) 946-3300 Fax (440) 942-9083 • e-mail: [email protected] Web: www.fusion-inc.com Brazing Machine Specifications .. Assembly: Two-piece brass/brass faucet body. .. Paste Filler Metal: Fusion LHK-1205-650 (Bag 7) 1205°F (651°C) liquidus. .. Production Rate: 50 parts per hour, one operator. .. Dimensions: 72” X 72” welded steel base, 42” dia. (stainless covered) tool plate, stationary outer/inner heat manifolds, Weiss TC 220 indexer. .. Utilities: Electrical 480/3/60, Control voltage 24VDC, Gas 192 CFH, Water 1 GPM, Compressed Air 37 CFM. .. PLC: Allen Bradley SLC 500 with Panel View Interface Panel. .. Safety Features: Lexan perimeter guarding on three sides of machine with safety interlocks. Sequence: Station 1 - Load/Unload Assembly* Station 2 - Open Station 3 - Heat Station 4 - Heat Station 5 - Heat Station 6 - Heat Station 7 - Air Cool Station 8 - Water Cool Station 9 - Water Cool Station 10 - Open * Brazing paste applied off-station prior to loading at Station 1. Precision heat pattern distributes filler metal throughout the joint, resulting in leak-free joints. Applicator gun dispenses two deposits of brazing paste to joint area.

 Open the catalog to page 1
