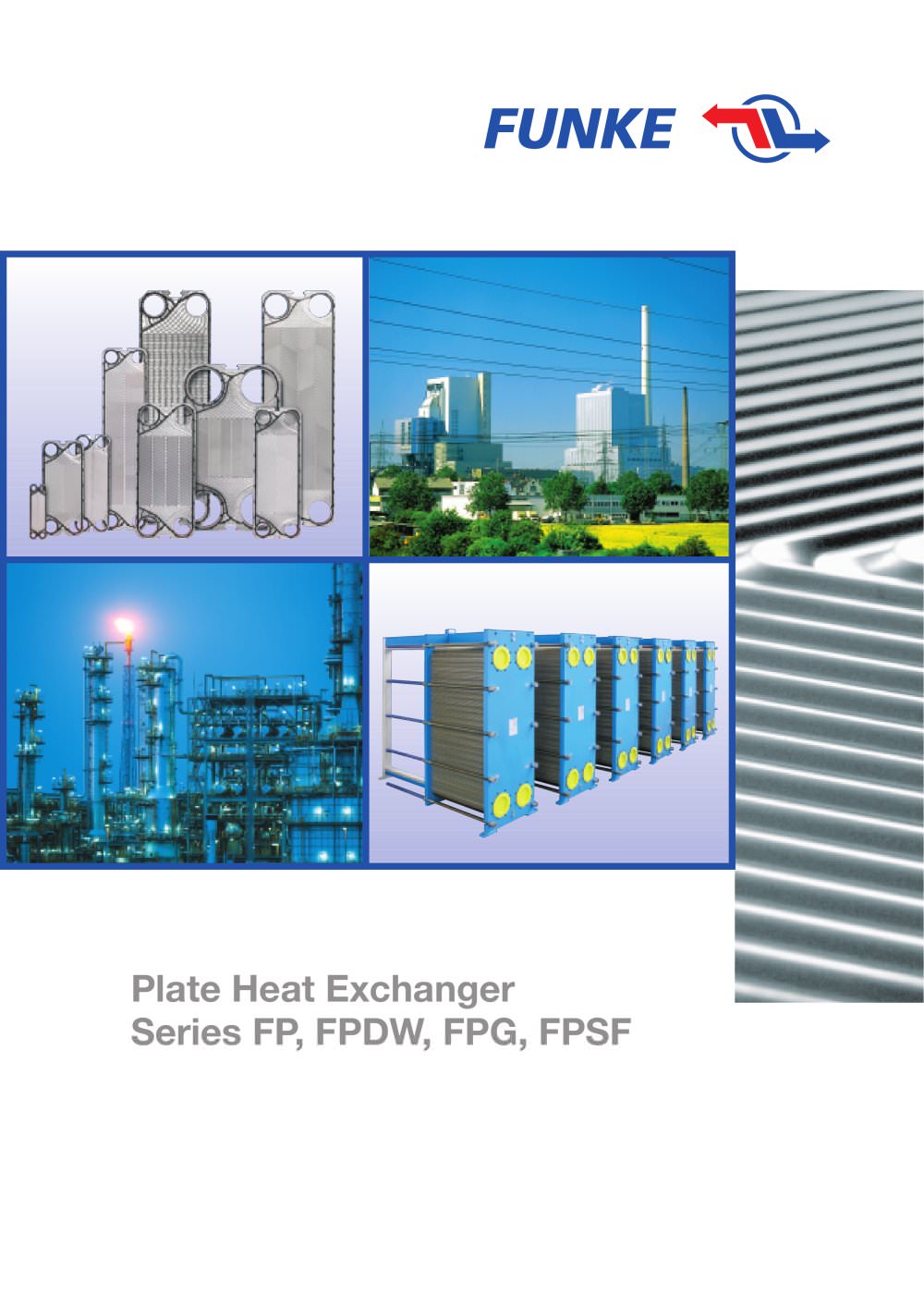

Plate Heat ExchangerSeries FP, FPDW, FPG, FPSF >

Advantages of FUNKEplate heat exchangers (PHE): low investment, operation and maintenance costsՕhighly efficient heat transfer(K-values on average 3-5 times higher than in the case of bare-tube heat exchangers)asymmetrical flow gap available forthe most cost-effective solutionsՕuse of smallest temperature differences = 1 Kup to 75% less space requiredՕself-cleaning effect due to highly turbulent flow behavioursubsequent capacity adjustment Օhigh safety with regard to media mixingeasy to open/clean Օlow operating weight/low liquid content Capacity1 KW-30 MWVolume flow 5 m > For three decades,...

Set-up and function ofFUNKE PHE Design of a Plate Heat Exchanger The PHE consists of a pack with linkedup embossed plates with passage openings. Every second plate is stag-gered by 180 , creating a flow gap ineach case. All plates are provided with gaskets, which completely seal the various flow gaps from the outside andseparate the second media involvedin heat exchange. The plate pack is mounted in a rackand is pressed between the fixed plateand pressure plate by means of clamping bolts.Warm and cold media are normally ledthrough the PHE in one-pass or multi- pass counterflows in order to guarantee...

Short overview ofplate and gasket: Very high heat transfer rates dueto thermodynamically optimised designՕcorrugation fields with Off-SetӔ embossing allow for symmetrical and asymmetrical flow gaps (1) specially embossed entry fields toallow for an optimum distribution ofmedia (2)Օgaskets fastened in a maintenance-friendly manner by means of Clip- SystemӔ gaskets with a special ribbedsurface to improve the centeringand stabilisation of the entire plate pack (3)double gasket with leak groove between two media prevents them from mixing in the area of the passageopening (4)Օspecial plate profile...

Provision of process water in the paper industry Machine oil cooler in rolling mill industry PHE cooler in high-pressure plants e.g. for oil field detection Cooling of laser welding plants in automotive production Plate Heat Exchanger for vacuumsystems 08 >

PHE for system separation in HVAC Central cooler for enginetest benchesCentral cooler ofa district cooling system Plate Heat Exchanger as double oil cooler with transflow valves andtemperature control. 09 >

Our service offersfor your PHE cleaning service:CIP (Cleaning in Place) or mechanical cleaning on site or chemical cleaning (immersion bath) at the factoryՕon request, CIP systems (incl. therequired cleaning chemicals) can be provided by FUNKEprovision of plates with new gaskets:always includes cleaning, optional hair crack testՕspare parts service:supply of original parts throughoutthe worldoverhaul of complete devicesՕsubsequent performance optimisation:extension of plate pack/modification of plate configuration 5 out of 7...Design data > The required performance of the PHEcan be achieved by...

FUNKE GmbH > Quality must be checked. Each unit isdesigned and pressure tested. Furthertests can be performed according to rules and corresponding inspection requirements if requested, such asPressure equipment directive97/23 ECՕAD 2000-Merkblatt ASME (Div.1/Div.2)ՕTEMA (International)API (USA) ՕGOST (Russia) Australian StandardՕISCR (Romania)LloydՒs Register Germany (Gronau/L.) FUNKE INDIA FUNKE RUS FUNKE CHINA > India (Pune) Russia (Moskau) China (Changzhou) as well as in accordance with customersrequirements. Obviously FUNKE is certified inaccordance with ISO 9001 and asauthorised manufacturer...
