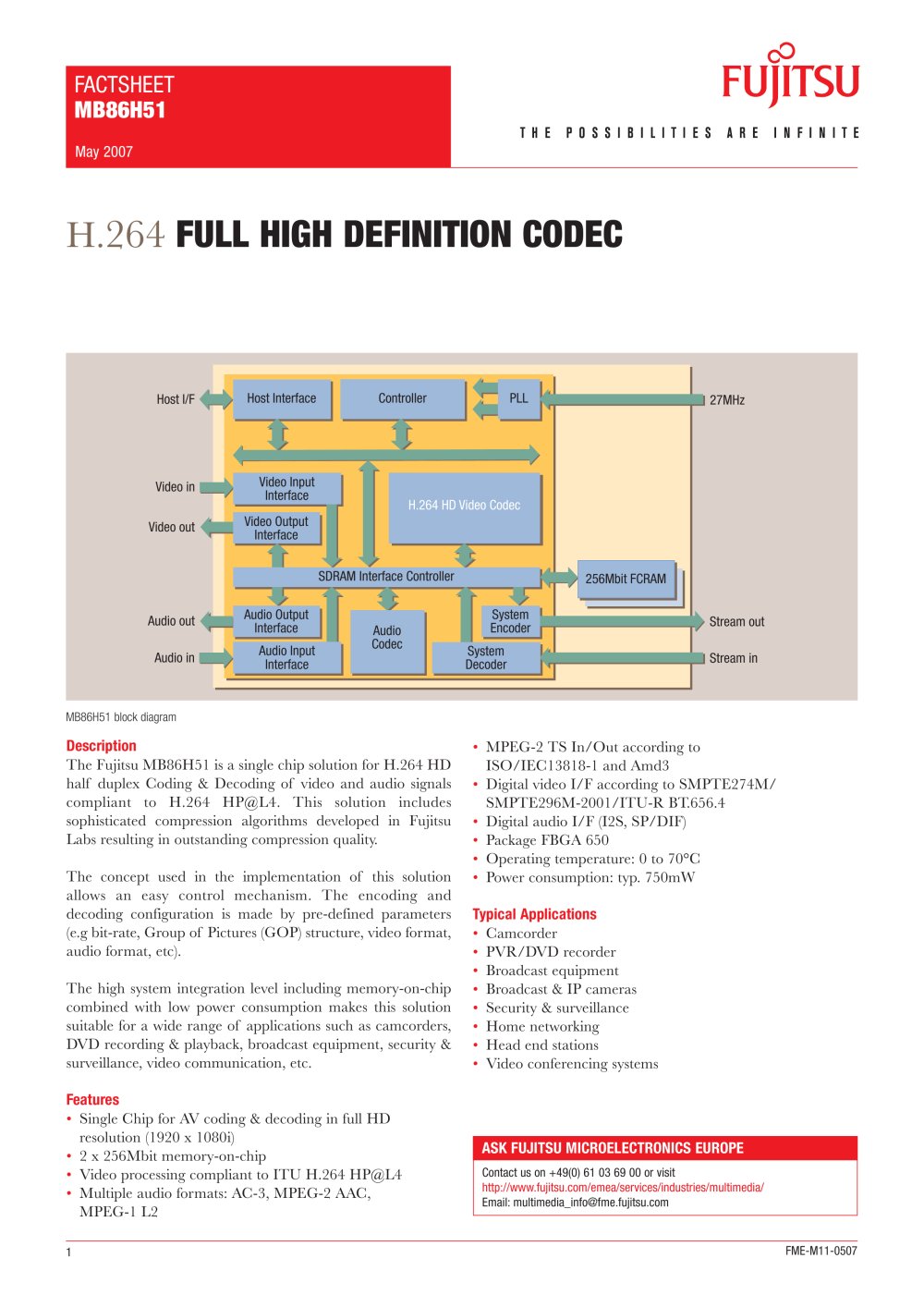

H.264 CODEC factsheet

H.264 CODEC factsheet

Product catalog summary

Description: The Fujitsu MB86H51 is a single-chip solution designed for H.264 HD half-duplex coding and decoding of video and audio signals, compliant with H.264 HP@L4 standards. It features advanced compression algorithms from Fujitsu Labs, ensuring high-quality compression. The chip allows easy control through pre-defined parameters such as bit-rate, GOP structure, and video/audio formats. Its high integration level, including on-chip memory and low power consumption, makes it ideal for various applications like camcorders, DVD recording, broadcast equipment, and more.

Features:

Single chip for AV coding and decoding in full HD resolution (1920 x 1080i).
Includes 2 x 256Mbit memory-on-chip.
Compliant with ITU H.264 HP@L4 for video processing.
Supports multiple audio formats: AC-3, MPEG-2 AAC, MPEG-1 L2.
MPEG-2 TS In/Out as per ISO/IEC13818-1 and Amd3.
Digital video interface compliant with SMPTE274M/SMPTE296M-2001/ITU-R BT.656.4.
Digital audio interface options (I2S, SP/DIF).
FBGA 650 package.
Operating temperature range: 0 to 70°C.
Typical power consumption: 750mW.

Typical Applications:

Camcorders
PVR/DVD recorders
Broadcast equipment
Broadcast and IP cameras
Security and surveillance systems
Home networking
Head end stations
Video conferencing systems

Block Diagram: The block diagram includes components such as the Host Interface Controller, PLL, H.264 HD Video Codec, Video and Audio Input/Output Interfaces, System Decoder and Encoder, Audio Codec, and SDRAM Interface Controller, operating at 27MHz.

Contact Information: For more information, contact Fujitsu Microelectronics Europe at +49(0) 61 03 69 00 or visit their website. Email inquiries can be sent to [email protected].
