Product catalog summary

Introduction to Graphics Controllers
Fujitsu's new graphics controllers are tailored for embedded graphics applications like car navigation and mobile terminals. They support 2D/3D rendering, flexible layers, and resolutions up to SXGA (1280 x 1024). Notably, the Jade family includes an embedded ARM CPU core.

Business Unit Graphics Solutions
Fujitsu Microelectronics Europe has established a Graphics Competence Center in Munich, focusing on developing devices and providing support across various markets, including automotive and multimedia. The center handles hardware/software design and offers application engineering support.

MB86290A ‘Cremson’
This 2D/3D graphics controller is optimized for car navigation and mobile terminals, featuring high-speed 3D graphics, low power consumption, and a 64-bit-wide external memory interface. It supports resolutions up to 1024 x 768 and includes features like anti-aliasing.

MB86291A ‘Scarlet’
An enhanced version of ‘Cremson’, it includes 16Mbit embedded SDRAM, video input functions, and a geometry processor, supporting picture-in-picture functions and resolutions up to 1024 x 768.

MB86292 ‘Orchid’
Similar to ‘Scarlet’, it allows for external video memory up to 32MB, retaining all functions of ‘Scarlet’ and optimized for applications needing more memory.

MB87P2020A ‘Jasmine’
Designed for low-cost systems, it supports various LCD panels and includes 8Mbit embedded SDRAM, 2D graphic acceleration, and digital video input compatibility.

MB86293 ‘Coral Q’
Offers increased frequency, a 64-bit memory bus, and supports six layers with advanced alpha-blending, enhancing texture mapping and image quality.

Overview
The document outlines Fujitsu's graphics controllers, focusing on compatibility, enhancements, and features of models like Coral and Carmine, designed for integration with host CPU buses.

Specifications
Built using CMOS 0.18µm technology, these controllers support resolutions up to 1280 x 768, with features like alpha blending and support for external memory up to 64MB. The MB86297A 'Carmine' supports resolutions up to 1280 x 1024 and is OpenGL ES 1.1 compatible.

Procedures and Enhancements
Enhancements include improved 2D-drawing functions, video input up-scaling, and new video input capabilities in Coral B and Coral P/PA models.

Key Features
Features include digital video input, video scaler, I2C interface, geometry processor, and configurable CPU-interface. The MB86296 'Coral PA' offers direct RGB666 video input and dual display support.

Product Roadmap
Fujitsu plans to develop enhanced controllers for digital audio/video applications, focusing on multimedia integration and single-chip solutions for navigation.

Evaluation Boards
Available for application development, these boards support various controllers and include Windows drivers and examples for easy programming.

Comparison Tables
Includes tables detailing specifications and features of different models, such as resolution and rendering capabilities.

Catalog excerpts

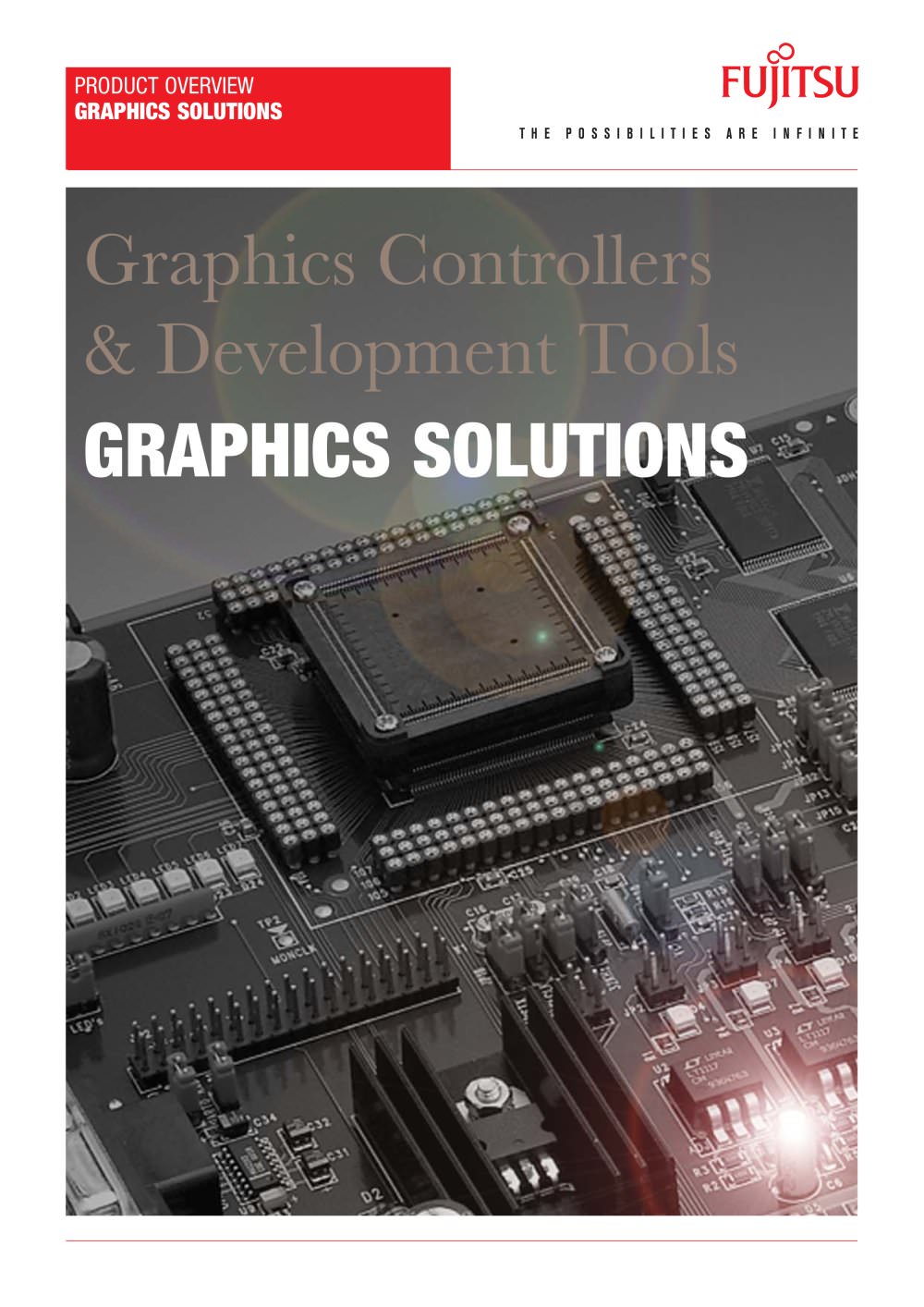

Graphics Controllers & Development Tools-1

PRODUCT OVERVIEW GRAPHICS SOLUTIONS Graphics Controllers & Development Tools GRAPHICS SOLUTIONS >

Open the catalog to page 1

Graphics Controllers & Development Tools-2

PRODUCT OVERVIEW GRAPHICS SOLUTIONS > Copyright 2007 Fujitsu Limited Tokyo,Japan and Fujitsu Microelectronics EuropeGmbH.All Rights Reserved.The information contained in this document has been carefully checked and isbelieved to be entirely reliable.However Fujitsu and its subsidiaries assume no responsibility for inaccuracies.The information contained in this document does not convey any licence under thecopyrights,patent rights or trademarks claimed and owned by Fujitsu.Fujitsu Limited and its subsidiaries reserve the right to change products orspecifications without notice. No part of this...

Open the catalog to page 2

Graphics Controllers & Development Tools-5

Introduction to GRAPHICS CONTROLLERS > In-car navigation is a key target application for Fujitsus graphics controllers. FujitsuҒs new family ofgraphics controllers will optimisesolutions for embedded graphics applications such as car navigation and mobile information terminals.The products in this family have numerous functions that are state-of-the-art to graphics controllers today,but have been specially optimised for the area ofembedded systems.This means that, in addition to many 2D and 3D rendering functions,there is a flexible layer concept,support for screen resolution ofup to SXGA (1280...

Open the catalog to page 5

Graphics Controllers & Development Tools-8

D[31:0]A[24:2] MB86291A adds 16Mbit embedded SDRAM,video input functions and a geometryprocessor. MB86291A offers some of the most advanced functionality yet developed for usein automotive navigation and multimedia information terminals. MB86291A Scarletђis an enhanced version ofMB86290ACremsonђ,which adds 16Mbit embedded SDRAM,video input functions and a geometry processor.The concept of display layers,2D/3D rendering functions and the displays controller features are taken from CremsonђMB86290A.Scarlet is optimised for applications in car navigation systems,which require video-input features,consumer...

Open the catalog to page 8

Graphics Controllers & Development Tools-11

The Coralђdevice family offers an increased internaloperating frequency of166MHz,a 64-bit memory bus, support for six independent layers,advanced alpha-blending features and enhanced video input facilities.The higher internal frequency of166MHz (400MHz for display dot clocks) enables the rendering engine ofthe devices to achieve a factor 10 improvement in texture mapping and drawing image quality compared to the previous graphics controller devices.The enhanced bandwidth allows a much greater rate ofaccessfor graphics elements,and delivers improved scanning functions at higher display resolutions.The...

Open the catalog to page 11

Graphics Controllers & Development Tools-12

Key features CMOS 0.18յm technology Display resolutions up to 1280 x 768 Օ6 layers ofoverlay display (Windows) Alpha PlaneՕDigital Video input Video Scaler (up/down scaling)ՕI > MB86294 Coral Bђadds video input to the features ofCoral Qђand is available in a BGA package.The video input is capable ofaccepting TV tuner,DVD player or camera signals in PAL or NTSC video formats (ITU656 format). Video pictures ofdiverse resolution and frame frequency rate, in either progressive or interlaced modes,can be grabbed, scaled and displayed picture-in-picture.The latest automotive and consumer appliance...

Open the catalog to page 12

Graphics Controllers & Development Tools-18

DeviceNameChipMax Resolution2D3DTextureNumberLayer AlphaDrawing AlphaDual DisplayRGB Digital Frequency(typ.@60Hz)RenderingRenderingMappingof LayersBlendingBlendingOutputOutput MB87P2020AJasmine64MHz800 x 600x--4---xMB86290ACremson100MHz1024 x 768xxup to44-bit flag4-bit alpha--512 x 512blending fordrawingtop layerMB86291AScarlet100MHz1024 x 768xxup to44-bit flag 4-bit alpha-x512 x 512blending fordrawingtop layerMB86292Orchid100MHz1024 x 768xxup to44-bit flag 4-bit alpha- x512 x 512blending fordrawingtop layerMB86293Coral Q166MHz1024 x 768xxup to68-bit alpha-plane8-bit alpha-x4096 X 4096for 1 layer...

Open the catalog to page 18

Graphics Controllers & Development Tools-20

PRODUCT OVERVIEW GRAPHICS SOLUTIONS > Notes 18 size="-2">

Open the catalog to page 20
