Overview
Fujitsu offers an embedded fingerprint solution, the MDFP200-EDK, which is a stand-alone fingerprint authentication system with a built-in Fujitsu MCU. It integrates fingerprint capturing, processing, verification, and storage into one system. The development kit includes fingerprint algorithm libraries and a sample hardware design, aimed at reducing development costs and accelerating time-to-market.

Features & Advantages

All-in-one solution that saves development cost and time.
Capacitive fingerprint sensor ensures stable operation regardless of lighting and temperature.
Efficient fingerprint matching algorithm with low processing power and small storage space requirements.
Fast authentication with a short matching time.

System Specifications

Authentication time: 1 second for 1:1 matching.
Template size: Approximately 200 Bytes per finger.
Storage capacity: 100 templates on module, extendable with an external database.
Fingerprint sensor: MBF200 with 500dpi resolution.
Power supply: 5V-12V, with typical power consumption of 1000mW.
Hardware interface: RS-232.
Operating temperature: 0-70°C.

EDK Contents

MDFP200 EDK module stack.
Adjustable power supply (3-12V).
Two 9-pole SUB-D interface cables.
User manual with schematics and bill of material.
Software CD with complete documentation.

Technical Details

Fingerprint sensor: Fujitsu’s CMOS solid-state single-touch sensor MBF200 with 500dpi resolution and 256x300 pixel array.
Processor: Fujitsu FR series 32bit RISC Processor MB91302 with various features including a hardware multiplier, barrel shifter, and power-saving modes.
Onboard memories: 8 MB SDRAM and 2 MB Flash.

Application Software

Fingerprint sensor driver library for image capturing and control.
IKENDI’s minutia-based software library for fingerprint matching, with a proprietary template format.
Flash utilities for downloading new applications and boot monitor.
Low memory consumption, using 10% of onboard memory.

Software Design Tool

Fujitsu Softune Workbench for platform development, including a complete toolchain after online registration.

Interface

2 RS-232 9-pin serial ports for downloading, debugging, and user applications.
Relay, buzzer, LEDs, and switch buttons for various functionalities.

Applications

Point Of Sales, Access Control, Public Safety Identification Systems, Computer and Network, Time Attendance Management.

Contact Information
Fujitsu Microelectronics Europe has offices in France, Germany, Italy, and the United Kingdom, with contact details provided for each location.

Catalog excerpts

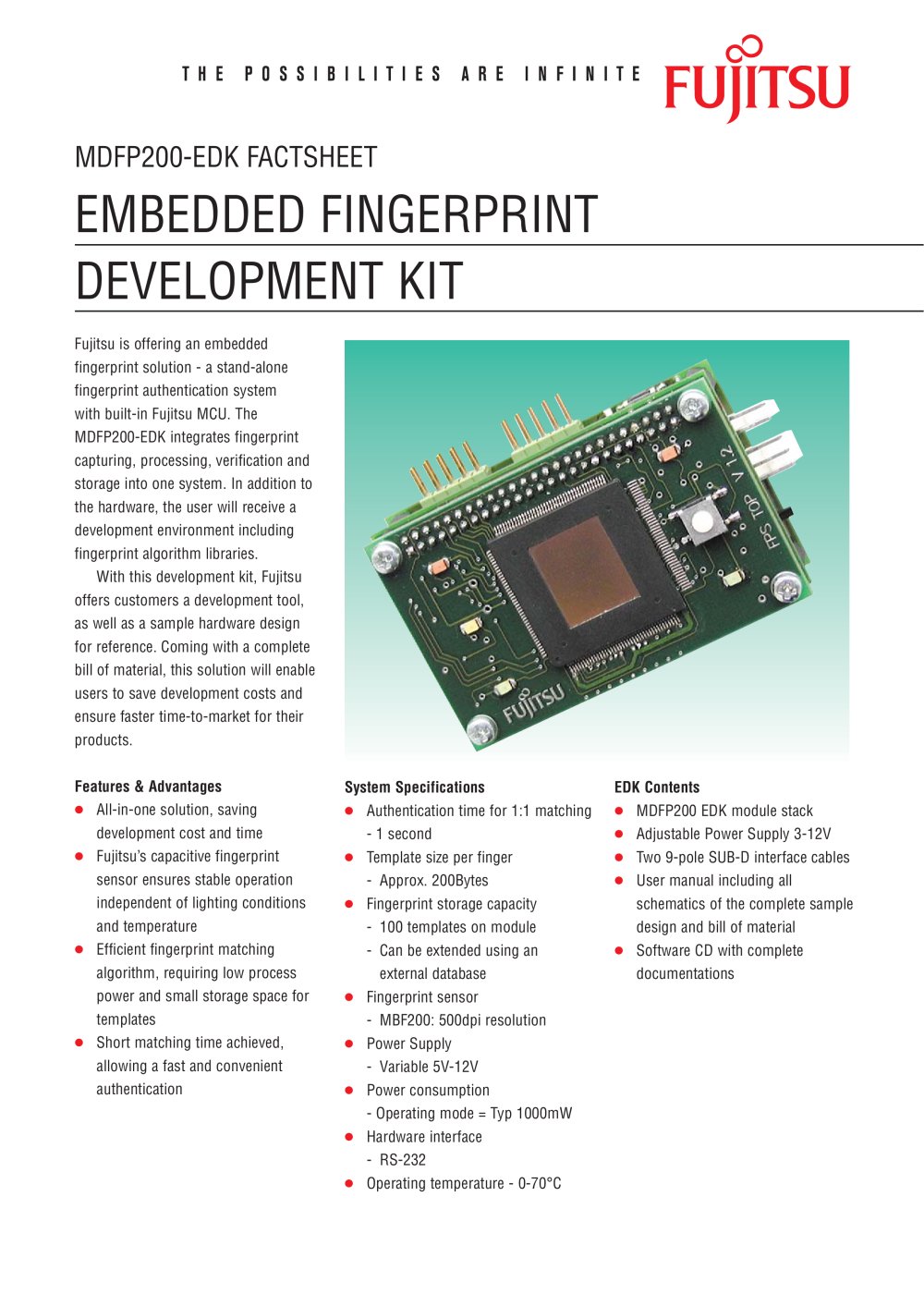

Fujitsu is offering an embeddedfingerprint solution - a stand-alone fingerprint authentication system with built-in Fujitsu MCU. The MDFP200-EDK integrates fingerprint capturing, processing, verification and storage into one system. In addition to the hardware, the user will receive a development environment including fingerprint algorithm libraries. With this development kit, Fujitsuoffers customers a development tool, as well as a sample hardware design for reference. Coming with a complete bill of material, this solution will enable users to save development costs and ensure faster time-to-market for their products. System Specifications EDK Contents All-in-one solution, saving development cost and time Authentication time for 1:1 matching- 1 second MDFP200 EDK module stack Adjustable Power Supply 3-12V Fujitsus capacitive fingerprint sensor ensures stable operation independent of lighting conditions and temperature Template size per finger - Approx. 200Bytes Two 9-pole SUB-D interface cables User manual including all schematics of the complete sample design and bill of material Fingerprint storage capacity - 100 templates on module - Can be extended using an external database Efficient fingerprint matching algorithm, requiring low process power and small storage space for templates Software CD with complete documentations Fingerprint sensor - MBF200: 500dpi resolution Short matching time achieved, allowing a fast and convenient authentication Power Supply - Variable 5V-12V Power consumption - Operating mode = Typ 1000mW Hardware interface -RS-232 Operating temperature - 0-70ҰC >
