FROMM
Pneumatic tools A380

Pneumatic tools A380

Product catalog summary

Overview
The A380 is a pneumatic sealless combination steel strapping tool designed by FROMM Holding AG. It is engineered for high performance and reliability, suitable for demanding applications. The tool is available in both automatic and semi-automatic versions.

Specifications

Strapping Qualities: Supports Uniflex and Ultraflex with a maximum tensile strength of 1100 N/mm² (160,000 psi).
Strapping Dimensions: Widths range from 12.7 to 25.0 mm (1/2 to 1 inch) and thicknesses from 0.50 to 1.00 mm (.020 to .040 inches).
Weight: Ranges from 16.9 to 18.4 kg (37.3 to 40.6 lbs) depending on the configuration.
Seal Strength: Approximately 80%.
Strap Tension: Available in different stages, with maximum tension up to 9500 N (2130 lbs).

Tool Versions

One Button Version: Automatic operation.
Two Button Version: Semi-automatic operation.

Advantages

Rugged design for high performance.
High reliability and easy maintenance.
Simultaneous loading of straps and pneumatic operation for increased productivity.
Sealless joint reduces strapping costs by approximately 10%.

Model Variants
The datasheet provides detailed specifications for various models of the A380, categorized by strap width, thickness, maximum tension, and tension speed. Models are available for both semi-automatic and automatic operations.

Weights
Tools are categorized by thickness:

0.50 to 0.63 mm: 17.4 kg (38.4 lbs)
0.70 to 0.80 mm: 18.4 kg (40.6 lbs)
0.90 to 1.00 mm: 18.4 kg (40.6 lbs)

Accessories
Optional suspension brackets are available for different applications, including standard, vertical, horizontal, and universal configurations. The universal bracket allows for quick changes and includes integrated air supply.

Catalog excerpts

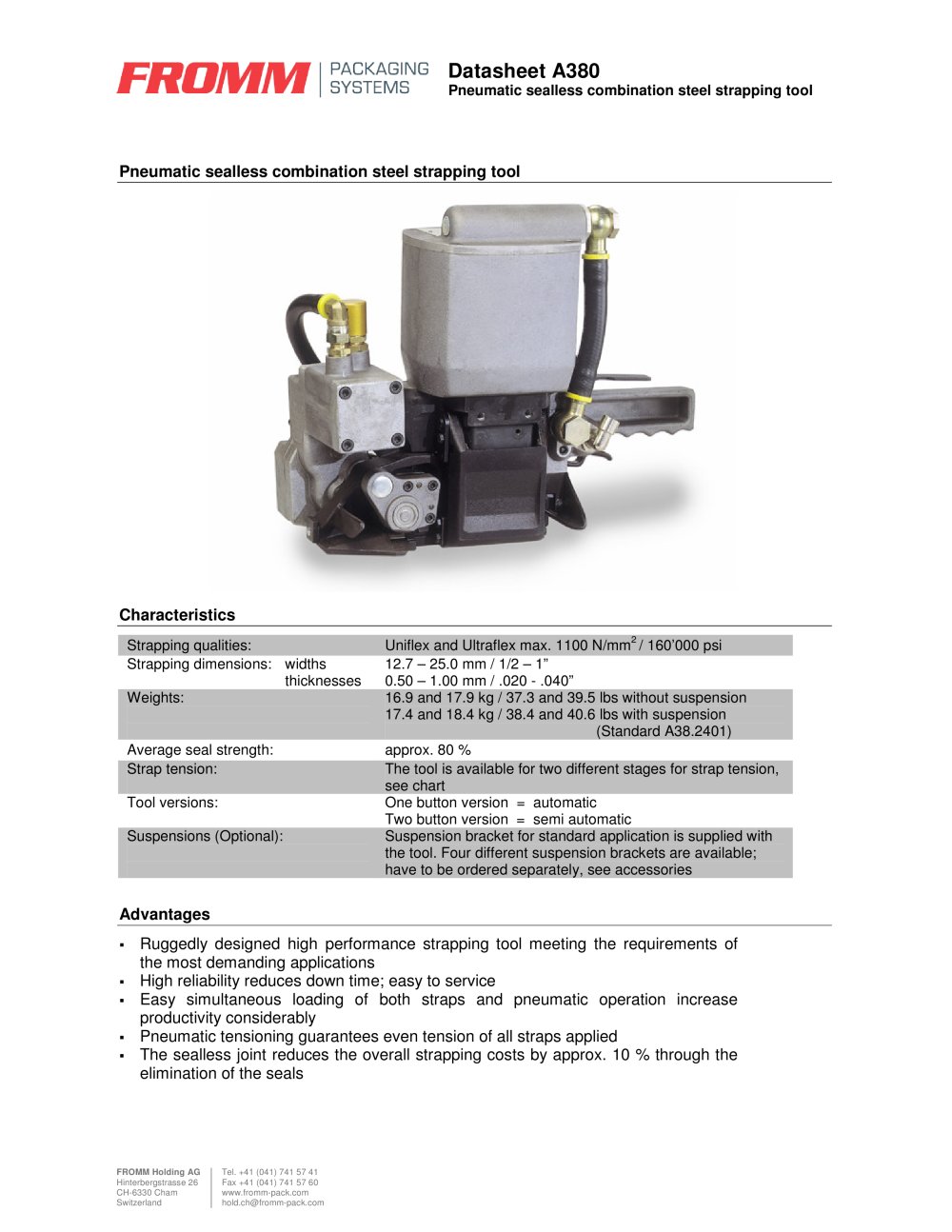

Pneumatic sealless combination steel strapping tool > Strapping qualities: Uniflex and Ultraflex max. 1100 N/mm > 2 / 160000 psi Strapping dimensions: widths thicknesses 12.7 Җ 25.0 mm / 1/2 1֔ 0.50 1.00 mm / .020 - .040֔ Weights: 16.9 and 17.9 kg / 37.3 and 39.5 lbs without suspension 17.4 and 18.4 kg / 38.4 and 40.6 lbs with suspension (Standard A38.2401) Average seal strength: approx. 80 % Strap tension: The tool is available for two different stages for strap tension, see chart Tool versions: One button version = automatic Two button version = semi automatic Suspensions (Optional): Suspension bracket for standard application is supplied with the tool. Four different suspension brackets are available; have to be ordered separately, see accessories >

Open the catalog to page 1

Weights are including standard suspension FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland [email protected] size="-2">

Open the catalog to page 2

Weights are including standard suspension A38.1431 Suspension bracket standard inclusive A38.1428 Suspension bracket vertical optional A38.1408 Suspension bracket horizontal optional A38.1434 Suspension bracket universal (standard, vertical, horizontal) optional A38.1411 Suspension bracket universal (standard, vertical, horizontal very fast changes possible, perfect for frequent changes, with integrated air supply) optional > FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland [email protected] size="-2">

Open the catalog to page 3
