Manual tools P403

Manual tools P403
2Pages

Catalog excerpts

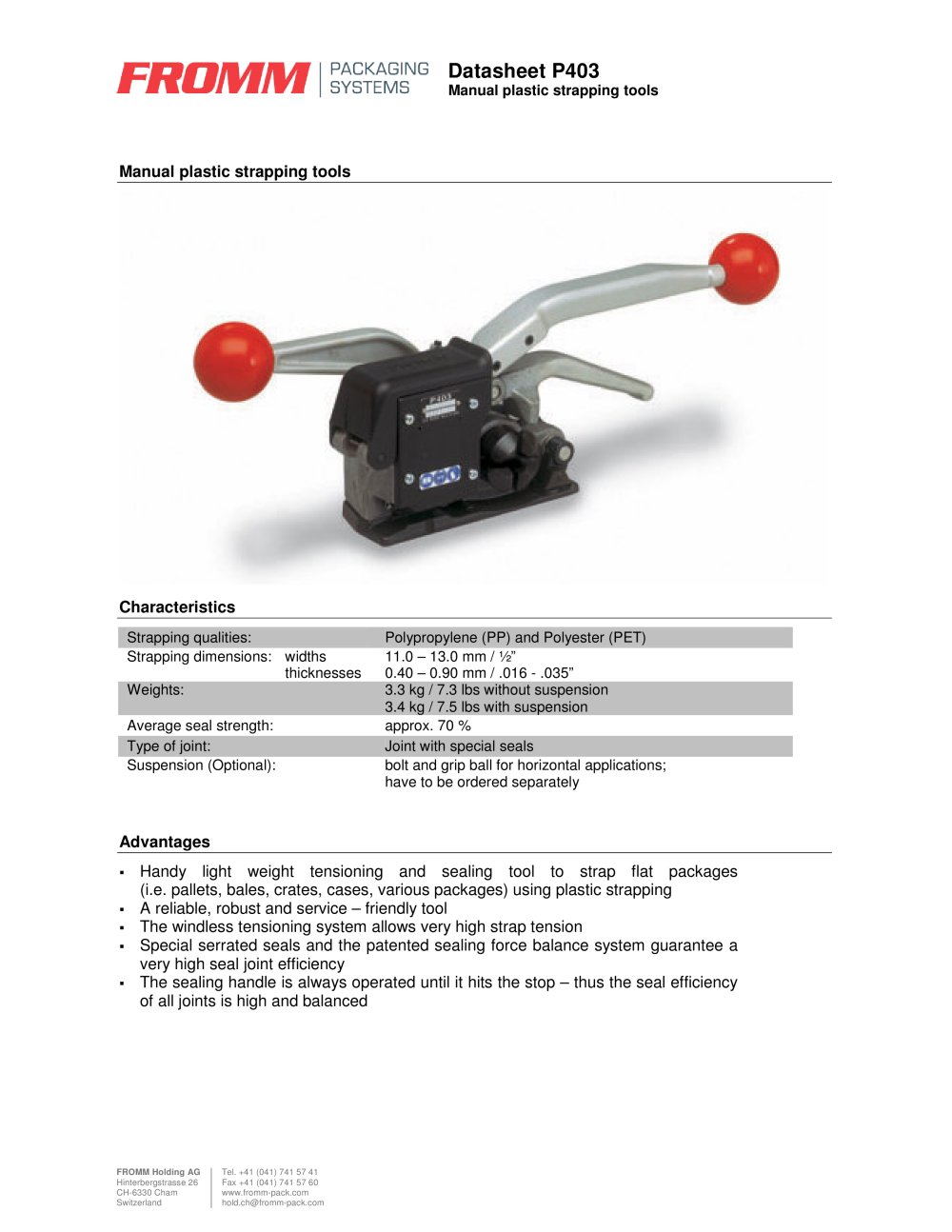

Manual plastic strapping tools Manual plastic strapping tools Characteristics > Strapping qualities: Polypropylene (PP) and Polyester (PET) Strapping dimensions: widths thicknesses 11.0 13.0 mm / ֽ 0.40 Ԗ 0.90 mm / .016 - .035 Weights: 3.3 kg / 7.3 lbs without suspension 3.4 kg / 7.5 lbs with suspension Average seal strength: approx. 70 % Type of joint: Joint with special seals Suspension (Optional): bolt and grip ball for horizontal applications; have to be ordered separately Advantages Handy light weight tensioning and sealing tool to strap flat packages (i.e. pallets, bales, crates, cases, various packages) using plastic strapping A reliable, robust and service Ԗ friendly tool The windless tensioning system allows very high strap tension Special serrated seals and the patented sealing force balance system guarantee a very high seal joint efficiency The sealing handle is always operated until it hits the stop thus the seal efficiency of all joints is high and balanced > FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland hold.ch@fromm-pack.com size="-2">

Open the catalog to page 1

Item No. Model Width Thicknesses mm inch mm inch 43.0403 P403/11-13/0.40-0.90 11-13 ݓ 0.40-0.90 .016-.035 > Item No. Model Width Weight mm inch Contents of carton in pcs. kg lbs 41.5081 P403/13 11-13 ݓ 1000 6.5 14.3 > P40.2046 Handle for horizontal applications (Grip ball and bolt) > FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland hold.ch@fromm-pack.com size="-1">

Open the catalog to page 2
