FROMM
Battery tools P319

Battery tools P319

Product catalog summary

Overview
The P319 is a battery-powered manual plastic strapping tool designed by FROMM Holding AG for narrow strapping applications. It is suitable for use with polypropylene (PP) and polyester (PET) strapping materials.

Specifications

Strapping Dimensions: Widths of 8.0 – 13.0 mm (1/3 – 1/2 inch) and thicknesses of 0.35 – 0.80 mm (.015 - .031 inch).
Weight: 3.75 kg (8.3 lbs).
Dimensions: L355 x W122 x H128 mm.
Seal Strength: Up to 75% depending on strap quality.
Strap Tension: Adjustable between 150 – 800 N (35 – 180 lbs).
Tensioning Speed: 150 – 300 mm/s (5.9 – 11.8 inch/s).
Power Supply: 12VDC batteries available in 2.4 Ah NiCD and 3.0 Ah NiMH.

Advantages

Ergonomic design with a small handle for ease of use.
Lightweight and well-balanced for all strapping positions.
Simple one-handed operation with adjustable tension force and sealing time.
Easy strap threading with simultaneous insertion of both straps.
Welding lever locks in position for efficient preparation of subsequent strapping.
Capability to weld without tension for strap repair.
Quick battery exchange feature.

Model Variants
The P319 is available in various models, each supporting different strap widths and thicknesses, but all offering a maximum tension of 800 N and a tension speed of 150-300 mm/sec.

Battery Chargers

Standard and turbo chargers available for NiCd and NiMH batteries, compatible with various international voltage standards (110V, 120V, 220-240V).

Accessories

Standard and alternating position suspension brackets.
Wearing sheets and plates for rough surfaces.
Turning button kit for enhanced usability.

Catalog excerpts

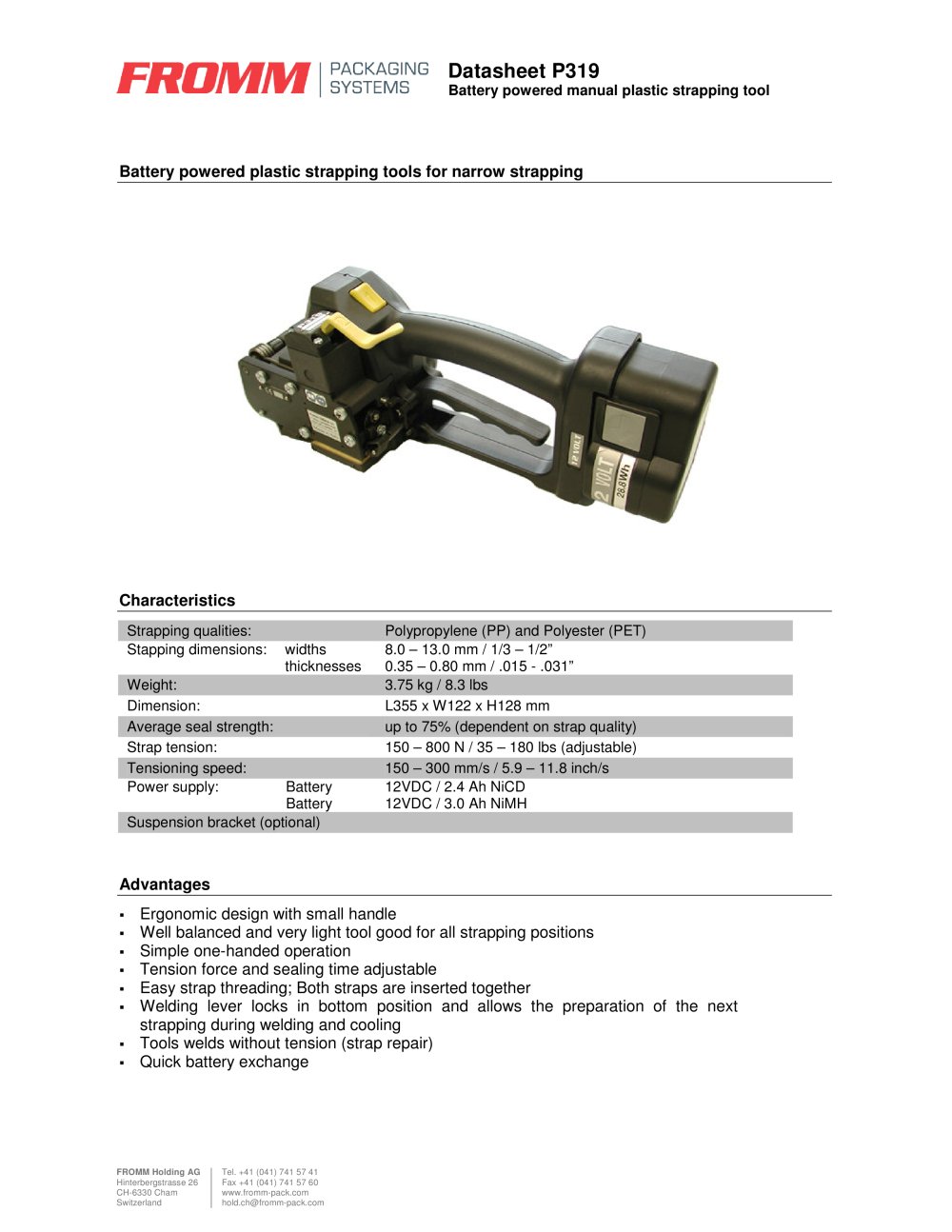

Battery powered manual plastic strapping tool Battery powered plastic strapping tools for narrow strapping Characteristics > Strapping qualities: Polypropylene (PP) and Polyester (PET) Stapping dimensions: widths thicknesses 8.0 13.0 mm / 1/3 ֖ 1/2 0.35 Ԗ 0.80 mm / .015 - .031 Weight: 3.75 kg / 8.3 lbs Dimension: L355 x W122 x H128 mm Average seal strength: up to 75% (dependent on strap quality) Strap tension: 150 Ԗ 800 N / 35 180 lbs (adjustable) Tensioning speed: 150 ֖ 300 mm/s / 5.9 11.8 inch/s Power supply: Battery Battery 12VDC / 2.4 Ah NiCD 12VDC / 3.0 Ah NiMH Suspension bracket (optional) Advantages Ergonomic design with small handle Well balanced and very light tool good for all strapping positions Simple one-handed operation Tension force and sealing time adjustable Easy strap threading; Both straps are inserted together Welding lever locks in bottom position and allows the preparation of the next strapping during welding and cooling Tools welds without tension (strap repair) Quick battery exchange > FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland [email protected] size="-2">

Open the catalog to page 1

Item No. Model Charging type Tension Countries N5.4414 Battery standard charger NiCd & NiMH 220-240 V / 50-60 Hz > A, B, BG, BIH, BOL, BR, CH, CL, CZ, D, DK, DZ, E, EAS, EST, ET, EY, F, FIN, GE, GR, H, HK, HR, I, IL, IND, IR, IRQ, IS, JOR, KSA, KWT, L, LAR, LT, LV, MA, MC, MK, MOC, N, NL, P, PK, PE, PL, PRC, PY, RA, RCH, RI, RL, RO, ROK, ROU, RP, RUS, S, SK, SLO, SYR, THA, TN, TR, UA, UAE, YU, YV, Z, ZA, ZW N5.4422 Battery turbo charger NiCd & NiMH 220-240 V / 50-60 Hz > (same as N5.4414) N5.4416 Battery standard charger NiCd & NiMH > BRN, BRU, CY, EAK, EAT, GB, IRL, M, 220-240 V / 50-60 Hz >...
