Automatic plastic strapping machines EFP
Automatic plastic strapping machines EFP
The document is a datasheet for the EFP semi-automatic strap feeding system by FROMM Holding AG, designed for plastic strapping using polypropylene (PP) and polyester (PET). It outlines the system's characteristics, advantages, model variations, and available accessories.
Specifications
- Strapping Qualities: Polypropylene (PP) and Polyester (PET).
- Strapping Dimensions: Widths from 13.0 to 32.0 mm (1/2 to 1 1/4 inches) and thicknesses from 0.38 to 1.27 mm (.015 to .050 inches).
- Recommended Tools: P324, P325, P350, P355, P356.
- Feeding Units: E101 (pneumatic) and E201 (electric with automatic re-feeding).
- Dispensers: KB2 (standard) and KB3 (with magneto-electric brake and strap accumulator).
- Longitudinal Displacements: Options include stationary and moveable configurations, with or without a sword, on rail or portal frame.
Advantages
- Reduces total strapping time compared to manual methods.
- Potential labor savings.
- Designed for continuous and shift operations with high reliability.
- Easy handling and operation.
- Variety of feeding systems available to meet customer requirements.
- Customer-friendly control system with multilingual display.
- Includes suspension device with running wagon and balancer for the strapping tool.
Model Variations
The datasheet includes a chart detailing various models (EFP100 to EFP509) with different configurations of feeding units, longitudinal displacements, and special designs such as coils.
Accessories
- Fixed bottom strap guide.
- Lower wooden runner.
- Manual horizontal strap displacement.
- Foot pedal for feeding and retracting operations.
- High platform for maintenance and operation.
- Orange flash light indicating strap feeder movement.
- Transformer for electric supply other than 400 V / 50 Hz.
Catalog excerpts

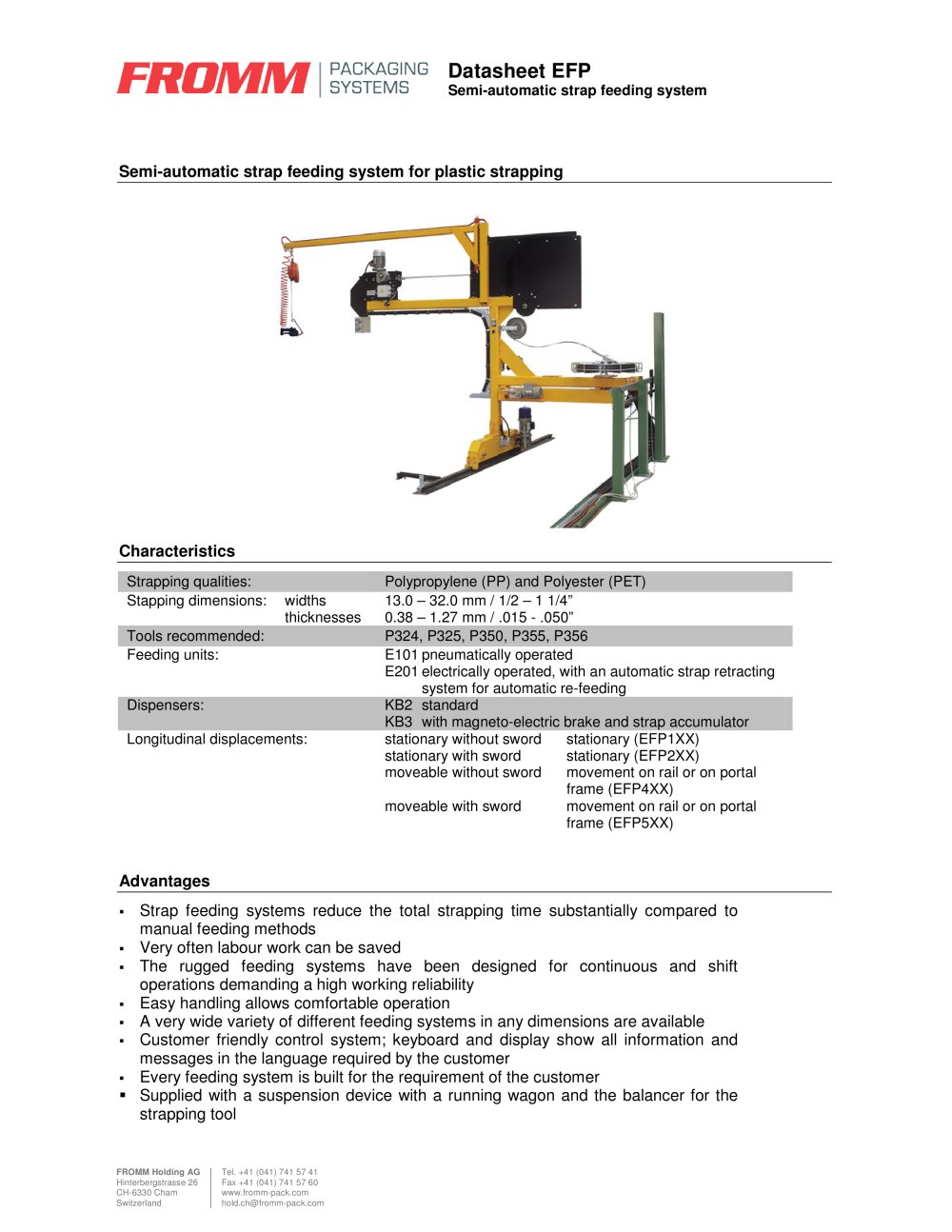

Semi-automatic strap feeding system Semi-automatic strap feeding system for plastic strapping Characteristics > Strapping qualities: Polypropylene (PP) and Polyester (PET) Stapping dimensions: widths thicknesses 13.0 32.0 mm / 1/2 ֖ 1 1/4 0.38 Ԗ 1.27 mm / .015 - .050 Tools recommended: P324, P325, P350, P355, P356 Feeding units: E101 pneumatically operated E201 electrically operated, with an automatic strap retracting system for automatic re-feeding Dispensers: KB2 standard KB3 with magneto-electric brake and strap accumulator Longitudinal displacements: stationary without sword stationary (EFP1XX) stationary with sword stationary (EFP2XX) moveable without sword movement on rail or on portal frame (EFP4XX) moveable with sword movement on rail or on portal frame (EFP5XX) Advantages Strap feeding systems reduce the total strapping time substantially compared to manual feeding methods Very often labour work can be saved The rugged feeding systems have been designed for continuous and shift operations demanding a high working reliability Easy handling allows comfortable operation A very wide variety of different feeding systems in any dimensions are available Customer friendly control system; keyboard and display show all information and messages in the language required by the customer Every feeding system is built for the requirement of the customer Supplied with a suspension device with a running wagon and the balancer for the strapping tool > FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland [email protected] size="-2">
Open the catalog to page 1
Model Feeding unit Longitudinal displacement Sword Special E101 E201 stationary on rail on portal frame without with design powered manual powered manual EFP100 X X X EFP101 X X X EFP104 X X X Coils EFP200 X X X EFP201 X X X EFP204 X X X Coils EFP400 X X X EFP401 X X X EFP402 X X X EFP403 X X X EFP404 X X X Coils EFP405 X X X EFP406 X X X EFP407 X X X EFP408 X X X EFP409 X X X Coils EFP500 X X X EFP501 X X X EFP502 X X X EFP503 X X X EFP504 X X X Coils EFP505 X X X EFP506 X X X EFP507 X X X EFP508 X X X EFP509 X X X Coils >
