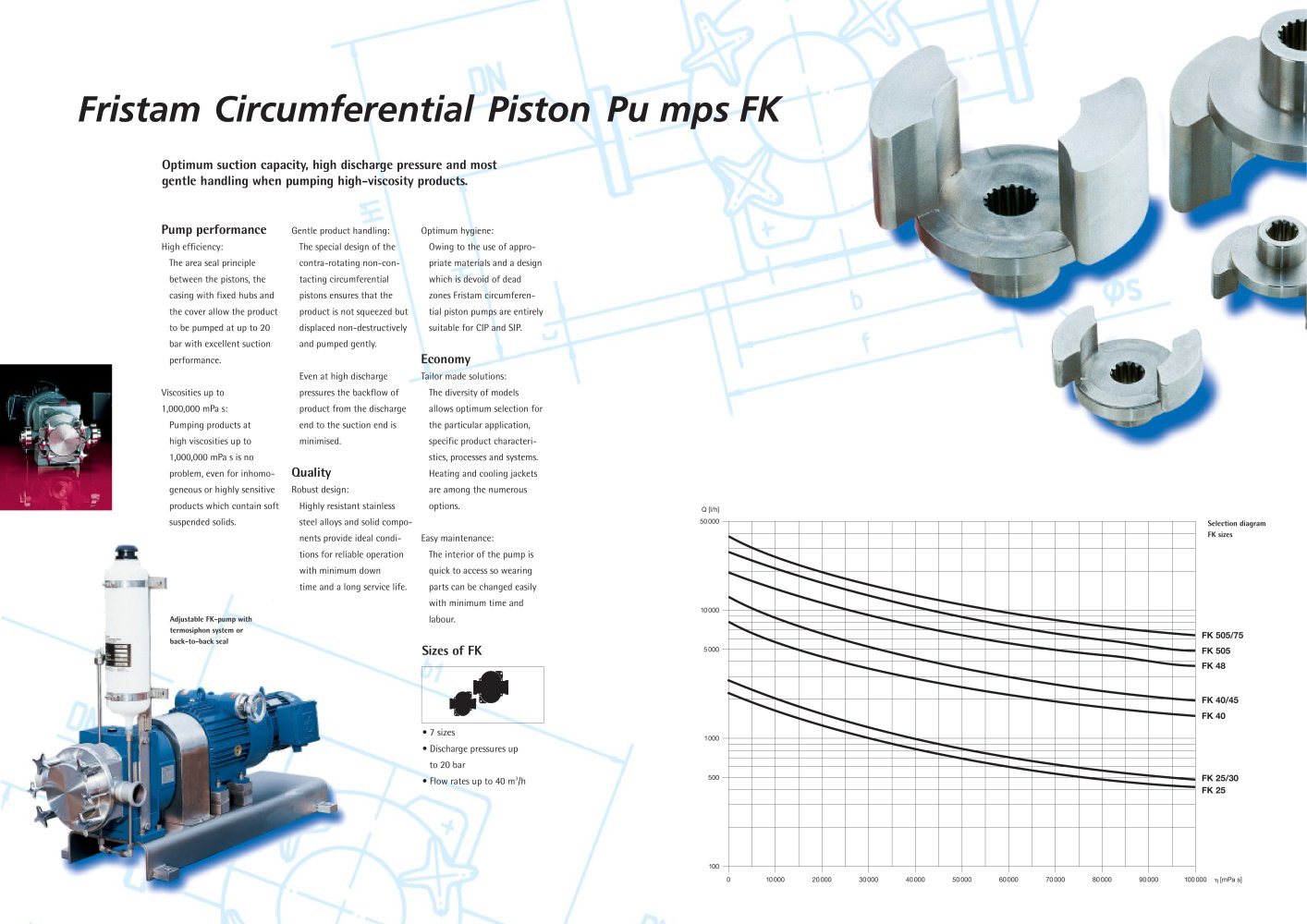

Fristam Circumferential Piston Pu mps FK

Product catalog summary

Overview: The document provides detailed information about Fristam Circumferential Piston Pumps (FK, FL, FKL), highlighting their specifications, applications, and benefits. These pumps are designed for high-viscosity products, offering optimum suction capacity, high discharge pressure, and gentle handling.

Specifications: The pumps can handle viscosities up to 1,000,000 mPa s and discharge pressures up to 20 bar. They are available in seven sizes with flow rates up to 40 m3/h. The design includes robust stainless steel construction, ensuring reliability and longevity.

Design and Materials: The pumps feature a design that allows easy maintenance and servicing. Materials used include stainless steel alloys with options for various surface finishes and internal seal faces made from materials like carbon, tungsten carbide, and silicon carbide.

Drive and Rotor Options: The pumps can be equipped with geared motors, variators, and hydraulic motors. Rotor types include twinlobe and singlelobe, with options for high-temperature designs and special grooves.

Connections and Special Options: Various connection types are available, including threads, flanges, and clamps. Special options include heating/cooling jackets, pressure relief valves, and electronic speed indicators.

Applications: Fristam pumps are suitable for a wide range of industries, including dairy, food, sugar/confectionery, brewing, chemicals, pharmaceuticals, and biotechnology. They are used in processes like crystallization, metering, emulsifying, and bottling.

Global Presence: Fristam has a worldwide presence with branches in countries such as Australia, Austria, Belgium, France, Great Britain, India, Italy, Japan, Netherlands, New Zealand, Poland, Russia, Scandinavia, South East Asia, Switzerland, Ukraine, USA/Canada, Mexico, and South America.

Catalog excerpts

Fristam Circumferential Piston Pu mps FK-2

The design of the FK pumps permits optimum maintenance and easy servicing because parts subject to wear and tear can be replaced without any major work. >

Open the catalog to page 2

Fristam Circumferential Piston Pu mps FK-4

Standard:-single and double-acting -bi-directional Options: -DIN 24960 -with external sealing/flushing liquid-pressureless (quench)-pressurised (back to back)- auxiliary systems, e.g. pipes, fittings and pressure gauge, funnels, thermosiphon tank for sterile operation etc. are possible Secondary seal materials: - Perbunan (NBR)-up to +100C -resistant to water, steam, mineral and vegetable fats and oils, alcohol, saline solutions-EPDM-up to +150аC -good thermal properties-suitable for use with alcoholic solutions, dilute acids and concentrated acids-PTFE / Kalrez-up to +200C-optimum chemical and...

Open the catalog to page 4

Fristam Circumferential Piston Pu mps FK-5

Fristam FK, FL and FKL stainless steel pumps are used in leading foodand drinks industry companies throughout the world as well as in many companies in the pharmaceutical and chemical industries, Fristam pumps are also the best solution for pumping your products: ApplicationsDairy products Brewing > Cream, yoghurt, curds, blanc-mange, butter, milk, skimmed milk and whey concentrates, desserts, cheese curd, melted cheese Malt extract, yeast Alcoholic beverages > Egg liqueur, sparkling wine Non-alcoholbeverages Foods > Animal and vegetable oils and fats, sauces, soups, egg products, ready-to-serve...

Open the catalog to page 5

Fristam Circumferential Piston Pu mps FK-7

Fristam Pumpen F. StampKG (GmbH & Co)Postfach 80088021008 HamburgTel.: (0)40/72556-0Fax: (0)40/7 25 56-166eMail:[email protected] The address of our branches are listed under: > http://www.fristam.com Fristam Australia Pty. Ltd.Bayswater, VIC > Fristam Pumps Ltd. Cambridge > Fristam Pumpen GmbH Vienna > Fristam Polska Sp. z o.o. Warsaw > Fristam Pumpen R.A. Moscow Fristam N.V.Aartselaar (B) > Fristam Pumper A/S Saeby Pompes Fristam S.A. Noisy-le-Sec > Fristam Pumpen A.R. Singapore Fristam Pumps (UK) Ltd. Hailsham > Fristam Pumpen AG Gossau Fristam Pumps (I) Pvt. Ltd. Pune > Fristam Kiev Ltd. Kiev...

Open the catalog to page 7

Fristam Circumferential Piston Pu mps FK

Fristam Circumferential Piston Pu mps FK
