Fristam centrifugal pumps FP
8Pages

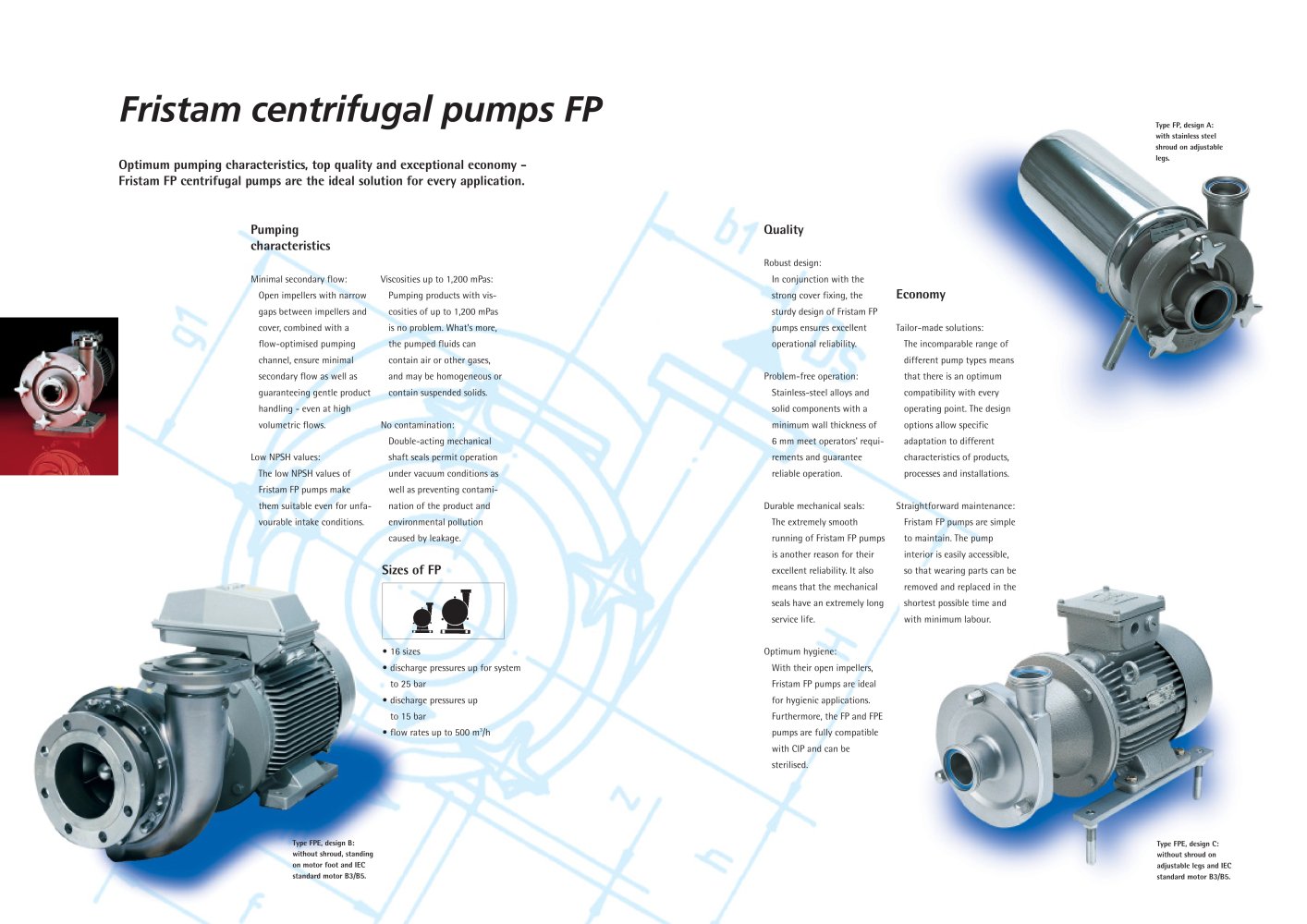

Type FP, design A:with stainless steel shroud on adjustablelegs. Type FPE, design C:without shroud on adjustable legs and IECstandard motor B3/B5.Type FPE, design B:without shroud, standingon motor foot and IEC standard motor B3/B5. Robust design:In conjunction with the strong cover fixing, the sturdy design of Fristam FP pumps ensures excellent operational reliability.Problem-free operation:Stainless-steel alloys and solid components with a minimum wall thickness of 6 mm meet operators' requi- rements and guarantee reliable operation. Durable mechanical seals:The extremely smooth running of Fristam FP pumpsis another reason for their excellent reliability. It also means that the mechanical seals have an extremely long service life.Optimum hygiene:With their open impellers, Fristam FP pumps are ideal for hygienic applications. Furthermore, the FP and FPE pumps are fully compatible with CIP and can be sterilised. Minimal secondary flow:Open impellers with narrow gaps between impellers and cover, combined with a flow-optimised pumping channel, ensure minimal secondary flow as well asguaranteeing gentle product handling - even at high volumetric flows.Low NPSH values:The low NPSH values of Fristam FP pumps make them suitable even for unfa- vourable intake conditions. Viscosities up to 1,200 mPas:Pumping products with vis-cosities of up to 1,200 mPas is no problem. What's more, the pumped fluids can contain air or other gases, and may be homogeneous orcontain suspended solids.No contamination:Double-acting mechanical shaft seals permit operation under vacuum conditions as well as preventing contami- nation of the product and environmental pollution caused by leakage. > Tailor-made solutions:The incomparable range of different pump types means that there is an optimum compatibility with every operating point. The design options allow specific adaptation to different characteristics of products,processes and installations.Straightforward maintenance:Fristam FP pumps are simple to maintain. The pump interior is easily accessible, so that wearing parts can beremoved and replaced in the shortest possible time and with minimum labour. > 16 sizesՕdischarge pressures up for system to 25 bardischarge pressures up to 15 barՕflow rates up to 500 m > 3 /h >

The design of the Fristam FP allows rapid access to all rotating parts of the pump. Consequently the pump is easy to service and wear parts are easy to change. >

Raw milk, whey, cream, skimmed milk, milk concen- trate, whey concentrate, set milk Syrup, concentrates, fruit juice,mineral water, mixed drinks containing CO > 2 , concentrateswith fruit pulp > Animal and vegetable oils and fats, vinegar, sauces, flavourings, brine, meat broth, tomato juice, vegetable juice, mayonaise, whole egg > Photographic emulsions, acids, alkaline solutions, waste water containing crystals, slightly contaminated liquids, chemi-cally polluted industrial wastewater, cleaning agents, adhesives > Liquid sugar, molasses, starch solutions > Pure water, infusion solutions,...
