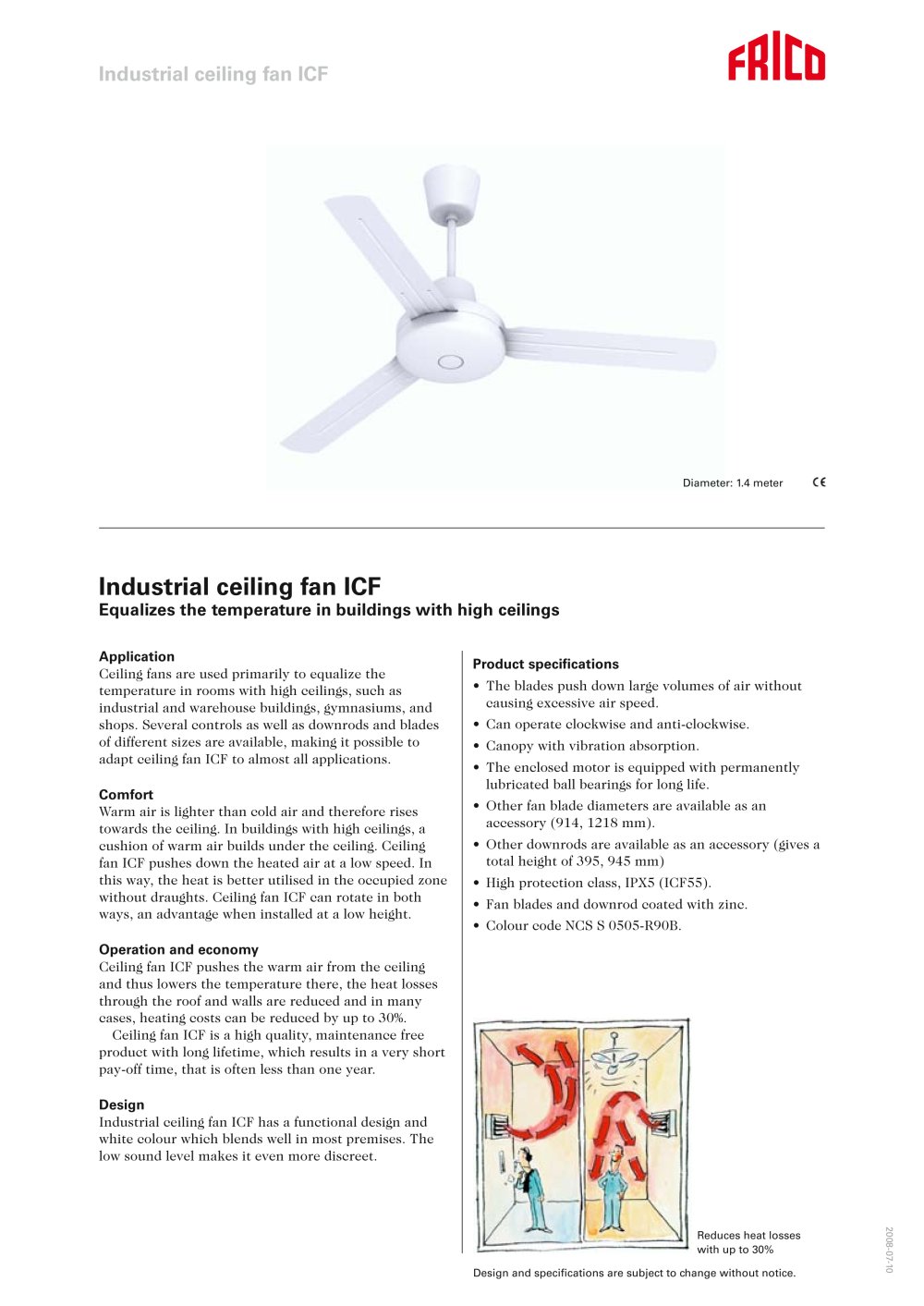

Overview
The Industrial Ceiling Fan (ICF) is designed to equalize temperature in buildings with high ceilings, such as warehouses, gymnasiums, and shops. It offers various controls, downrods, and blade sizes to adapt to different applications.

Comfort and Efficiency
The fan helps in utilizing warm air that rises to the ceiling by pushing it down at low speed, enhancing comfort without causing drafts. It can rotate in both directions, which is beneficial when installed at lower heights. The fan reduces heat loss through the roof and walls, potentially lowering heating costs by up to 30%.

Design and Specifications
The ICF features a functional design with a white color that blends into most environments. It operates quietly and is maintenance-free, ensuring a long lifespan. The fan has a diameter of 1.4 meters and is available with different blade and downrod sizes. It is splash-proof (IPX5) and approved by IMQ and CE.

Technical Specifications

• Output: 70 W
• Airflow: 13,500 m³/h
• Voltage: 230V~
• Amperage: 0.33 A
• Dimensions: 545x1422 mm
• Weight: 6.2 kg

Control Options
The fan speed can be controlled to optimize heat distribution and prevent drafts. Control options include:

• CAR15: Automatic fan speed control for up to 15 fans, reversible.
• CFR1R: 5-step control for 1 fan, reversible.
• RE5: 5-step control for up to 12 fans.
• PE1/PE2.5: Variable fan speed control for 2 or 6 fans, respectively.

Accessories

• CFAP200: Short downrod, total height 395 mm.
• CFAP750: Long downrod, total height 945 mm.
• CFB900: Fan blades, diameter 914 mm.
• CFB1200: Fan blades, diameter 1218 mm.

Installation and Positioning
Fans should be positioned systematically to ensure optimal temperature distribution. The recommended distance between fans varies with ceiling height, ranging from 5 to 10 meters.

Conclusion
The Industrial Ceiling Fan ICF is a versatile and efficient solution for temperature management in large spaces, offering significant energy savings and comfort improvements.
