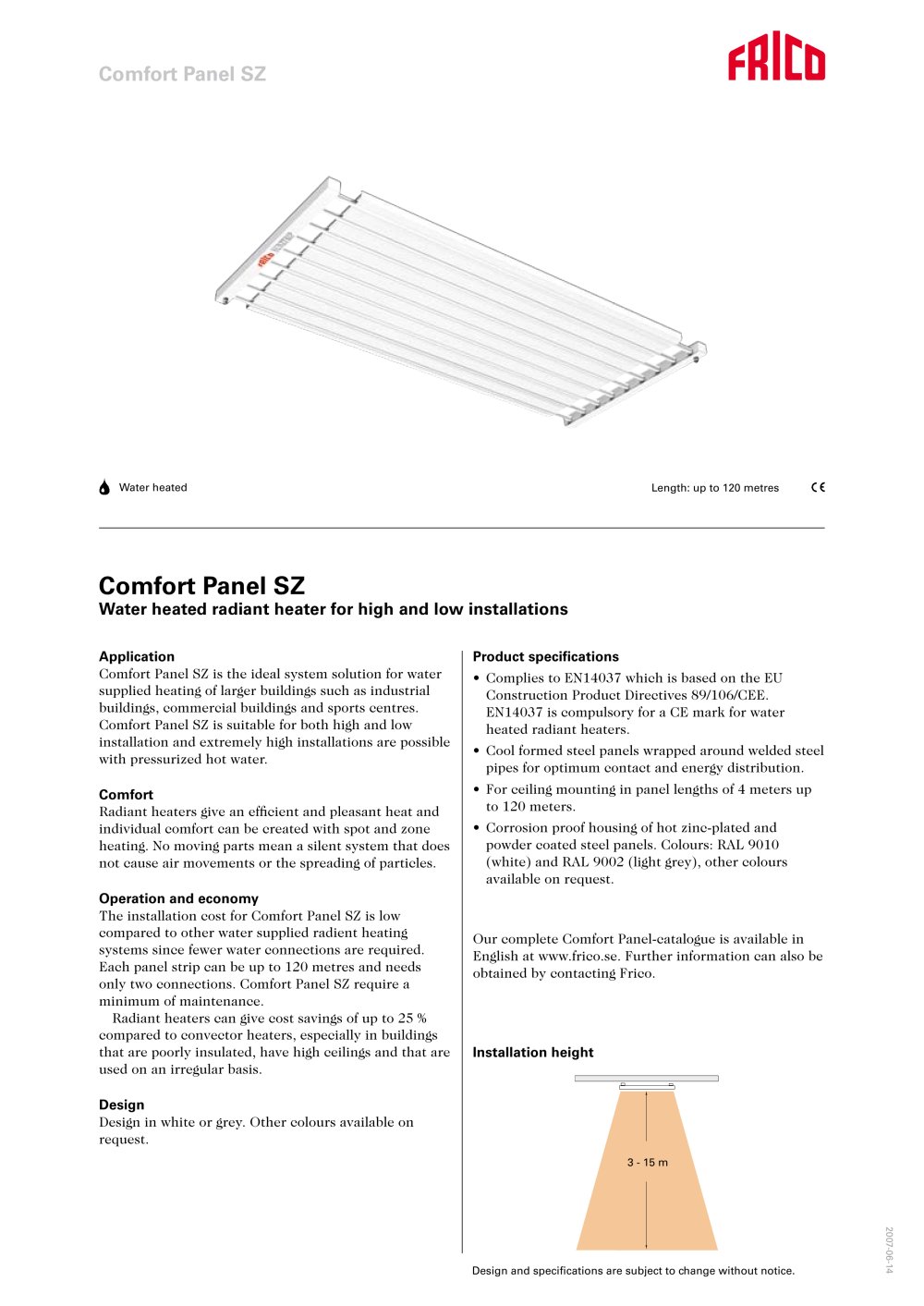

Overview
Comfort Panel SZ is a water-heated radiant heater designed for large buildings such as industrial and commercial spaces, as well as sports centers. It is suitable for both high and low installations, with the capability for extremely high installations using pressurized hot water.

Comfort and Efficiency
The system provides efficient and pleasant heat through spot and zone heating, without moving parts, ensuring silent operation and no air movement or particle spread. It offers cost savings of up to 25% compared to convector heaters, especially in poorly insulated buildings with high ceilings.

Design and Specifications
The panels are available in white or grey, with other colors on request. They can be up to 120 meters long and are made from cool-formed steel panels wrapped around welded steel pipes for optimal energy distribution. The system complies with EN14037, necessary for CE marking.

Technical Specifications
The Comfort Panel SZ comes in standard and special versions, with varying heat outputs, weights, and maximum working pressures. The standard version operates at a maximum water temperature of 100°C, while the special version can handle up to 200°C.

Construction
The panels are highly efficient, with an 80% contact surface between pipe and panel. They use multiple smaller diameter pipes to enhance efficiency without increasing flow resistance. The panels are made from 0.6 mm steel, with pipes welded from 1.5 mm steel for standard versions and 2.35 mm for special versions.

Installation
Water connections are made via headers welded to the panel ends, with various diameter options available. The sections can be fitted using press fitting or welding.

Additional Information
A detailed Comfort Panel catalogue is available at www.frico.se, and further information can be obtained by contacting Frico.
