Bench heater SH
1 / 2 PagesView full catalog

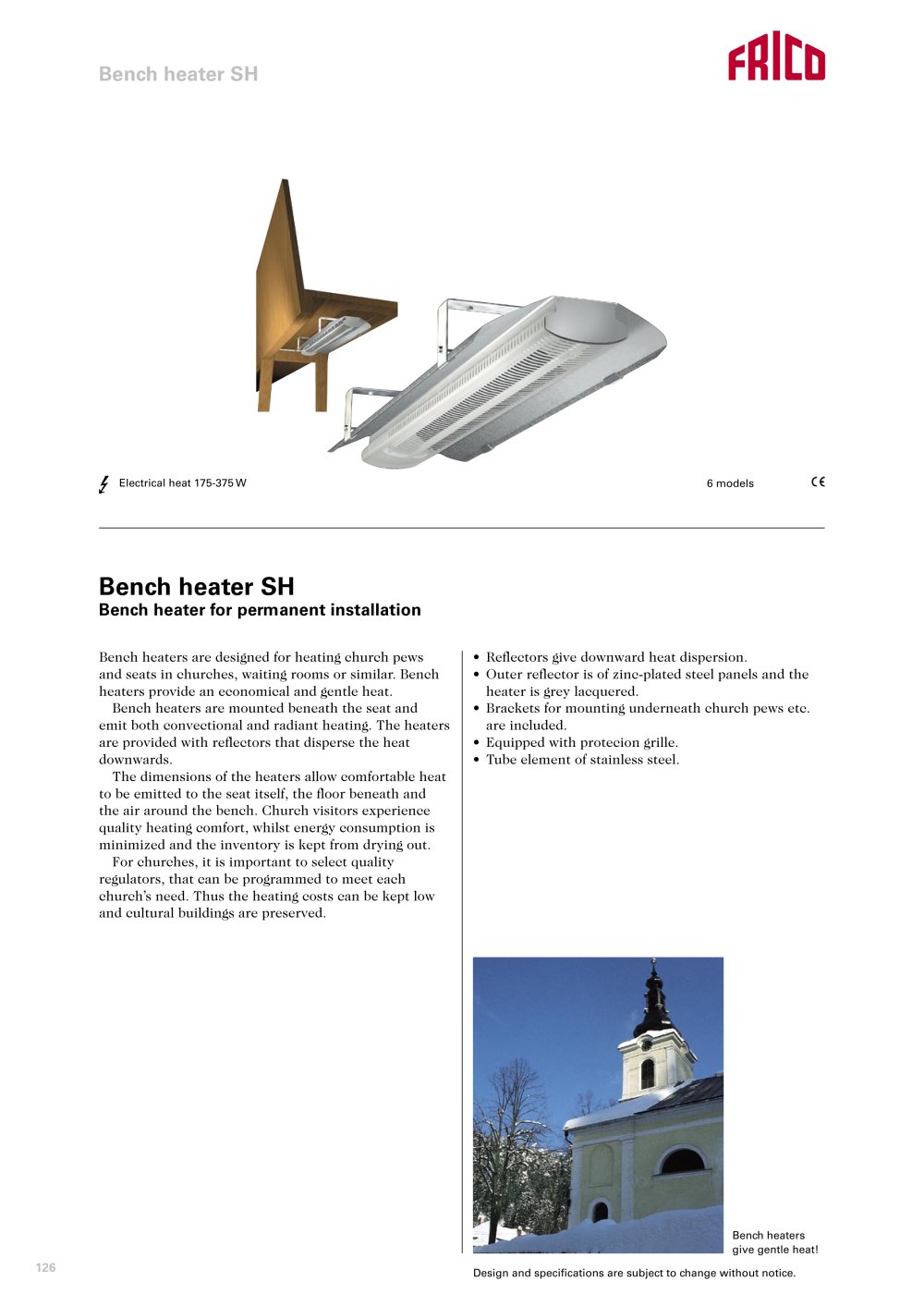

Bench heater SH
Product catalog summary
Overview: The Bench Heater SH is designed for permanent installation under church pews and similar seating arrangements, providing economical and gentle heating through convection and radiant heat. It is suitable for churches, waiting rooms, and similar environments.
Specifications:
- Models: Six models available with power outputs ranging from 175W to 375W.
- Voltage: Options for 230V and 400V.
- Dimensions: Lengths vary from 700mm to 1500mm, with a consistent height and width of 102mm and 90mm respectively.
- Weight: Ranges from 1.4kg to 2.9kg depending on the model.
- Protection: IP21 drip-proof design, SEMKO approved, and CE compliant.
Design Features:
- Reflectors disperse heat downwards, enhancing comfort and minimizing energy consumption.
- Constructed with zinc-plated steel panels and a grey lacquer finish.
- Includes mounting brackets and a protection grille.
- Equipped with a stainless steel tube element.
Installation and Mounting:
- Intended for permanent installation beneath benches using provided brackets.
- Requires a maximum cable of 4x1.5 mm² plus earth for connection.
- Programmable electric heating regulators are recommended for optimal energy management, allowing for temperature zoning.
Regulation and Control: It is advised to use quality regulators to program heating according to specific needs, preserving cultural buildings and reducing costs.
