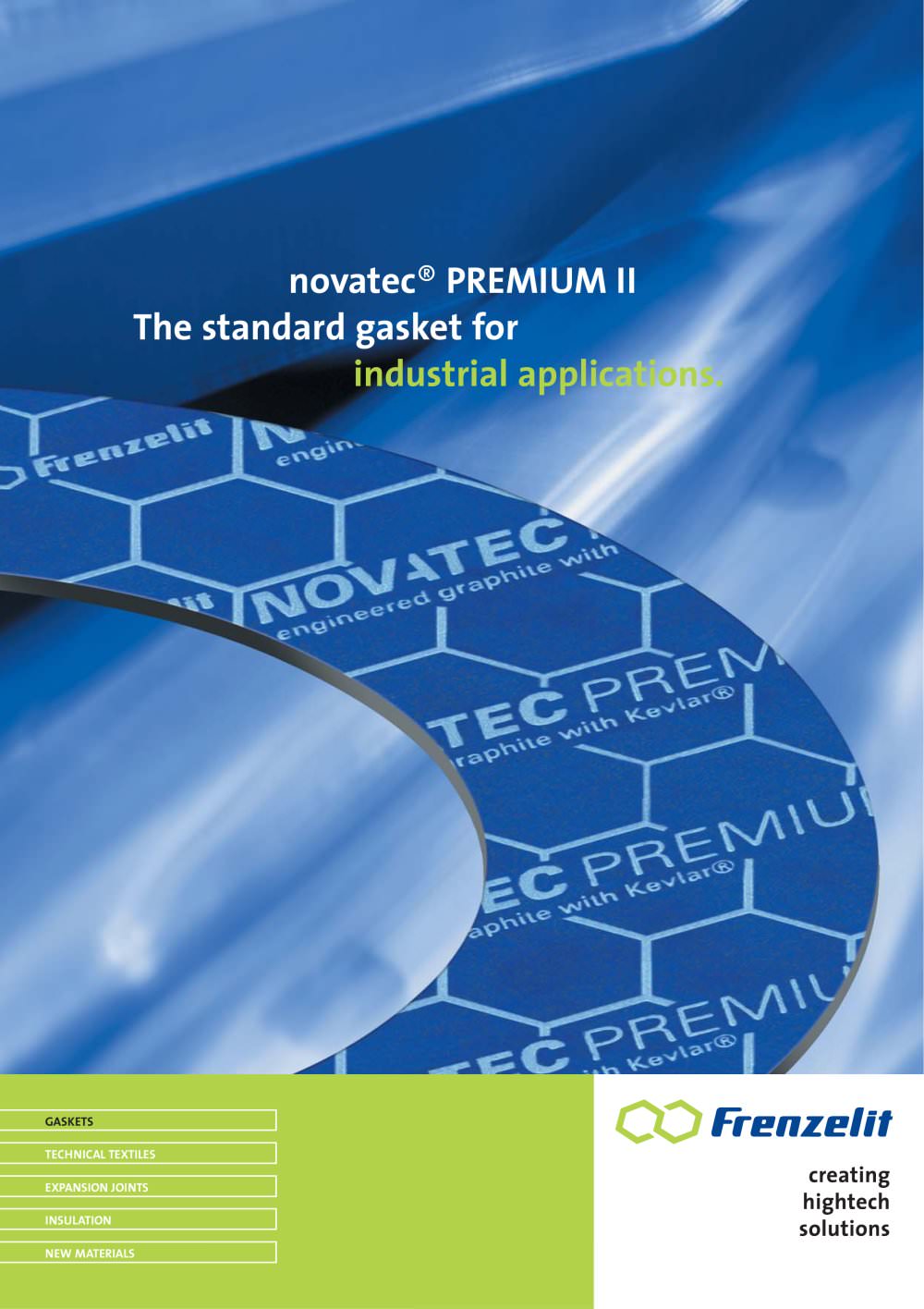

GASKETS TECHNICAL TEXTILES EXPANSION JOINTS INSULATION NEW MATERIALS novatec® PREMIUM II The standard gasket for industrial applications.

Your wish … • Higher safety standards • Higher temperature resistance • Higher media resistance • All-purpose products • Maximum design reliability • Optimised adaptability • Better handling properties • novatec® PREMIUM II is the standard gasket. • novatec® PREMIUM II covers 80% of all industrial applications. … is our command. Typical applications for novatec® PREMIUM II • Compliance with the German pollution regulations e.g. TA Luft in these areas: - Petrochemicals - Gerneral industry - Chemical industry - Plant engineering • All-purpose use in many areas of industry in general and the chemical...

Media-resistant at high temperatures novatec® PREMIUM II is the second generation of the proven novatec® PREMIUM range. The graphite – Kevlar® material combination guarantees an efficiency level that exceeds all standard fibre gaskets on the market. The large proportion of graphite combined with the small proportion of bonding agent provides resistance to about 80% of all the media used commonly for general industrial applications as well as in the chemical industry particularly. Excellent pressure resistance novatec® PREMIUM II has long-term resistance properties and guarantees constant reliability...

Technical information about novatec® PREMIUM II Specific leakage rate novatec® PREMIUM II remains well below the leakage limits specified by DIN 3535. Leakage category: L = 0.1 mg/(s·m) · test gas: nitrogen · thickness: 2.0 mm Long-term creep relaxation Leakage rate under the influence of temperature Deformation under temperature 2.0 mm 100 90 80 70 60 50 40 30 20 10 0 0 10 20 30 40 50 60 70 80 90 100 L0,1 10 1 0.1 0.01 0.001 10 15 20 25 30 35 40 45 RT 100°C 200°C 50 48 46 44 42 40 38 36 32 30 0,1 1 10 16 100 1000 10000 40° 60° 80° 100° 120° 140° 160° 180° 200° 220° 240° 260° 280° 300° 50 40...

Material profile • Very compact gasket material, pressureresistant, temperature-resistant and with good forming properties • The main components are graphite and aramide fibres, bonded with NBR. • State-of-the-art composite material that combines the advantages of graphite and aramide. Do you have any questions about your application? The gasket information service will help you: [email protected] Material data General data Binders NBR Approvals DVGW, KTW, WRAS, W 270, VP 401, BAM (max. 110 °C/130 bar), TA Luft, SVGW Colour royal blue Anti-stick coating both sides A 310 standard Tolerances...

FL/4/12.08/03/FL All previous versions of this prospectus cease to apply. Subject to technical amendment. Frenzelit-Werke GmbH & Co. KG P.O.Box 11 40 · 95456 Bad Berneck · Germany Phone: +49 9273 72-0 · Fax: +49 9273 72-221 [email protected] · www.frenzelit.com GASKETS TECHNICAL TEXTILES EXPANSION JOINTS INSULATION NEW MATERIALS German fugitive emission regulations with clear instructions The air pollution regulations that have applied in Germany since October 2002 define and specify the commitments for operators of industrial equipment that requires approval. Clear rules are made there for flange...
