novapress ® UNIVERSAL

novapress ® UNIVERSAL
2Pages

Catalog excerpts

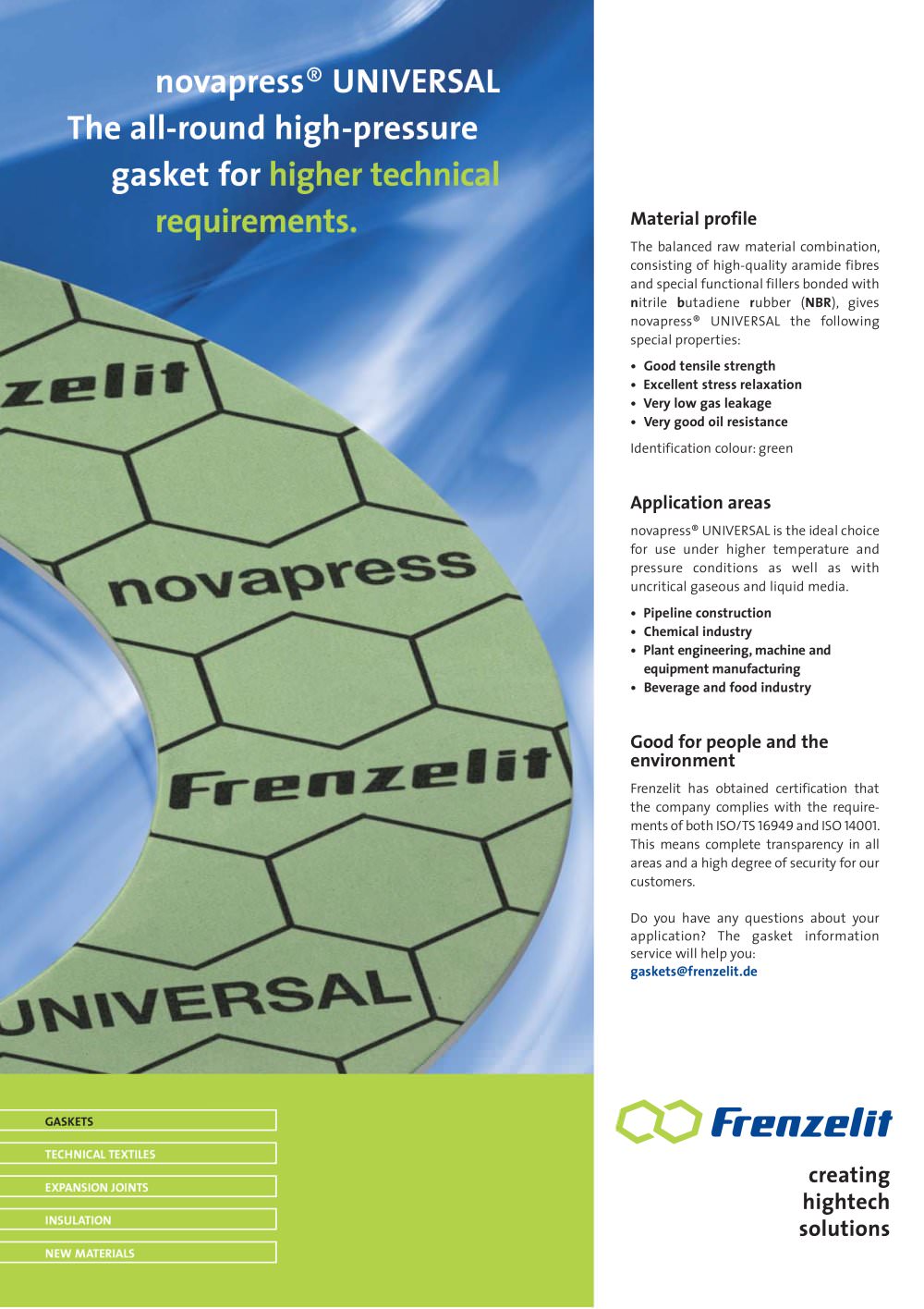

Material profile The balanced raw material combination, consisting of high-quality aramide fibres and special functional fillers bonded with nitrile butadiene rubber (NBR), gives novapress® UNIVERSAL the following special properties: • Good tensile strength • Excellent stress relaxation • Very low gas leakage • Very good oil resistance Identification colour: green Application areas novapress® UNIVERSAL is the ideal choice for use under higher temperature and pressure conditions as well as with un critical gaseous and liquid media. • Pipeline construction • Chemical industry • Plant engineering, machine and equipment manufacturing • Beverage and food industry Good for people and the environment Frenzelit has obtained certification that the company complies with the requirements of both ISO/TS 16949 and ISO 14001. This means complete transparency in all areas and a high degree of security for our customers. Do you have any questions about your application? The gasket information service will help you: gaskets@frenzelit.de novapress® UNIVERSAL The all-round high-pressure gasket for higher technical requirements. GASKETS TECHNICAL TEXTILES EXPANSION JOINTS INSULATION NEW MATERIALS

Open the catalog to page 1

Product data • Dimensions in mm: 1000 x 1500 1500 x 1500 3000 x 1500 • Thicknesses in mm: 0.3/0.5/0.75/1.0/1.5/2.0/3.0/4.0 • Further dimensions and thicknesses are available on request Recommendations for use Material data according to the pressure and temperature General data Binders NBR Approvals DVGW, SVGW, HTB, KTW, WRAS, BAM (up to max. 60°C/130 bar), TA Luft Colour both sides light-green Anti-stick coating both sides PTFE Sheet size and thickness tolerance according DIN 28 091-1 Physical properties Standard Unity Value* Gasket thickness 2.0 mm Density DIN 28 090-2 [g/cm3] 1.80 Tensile...

Open the catalog to page 2
