novapress ® MULTI II

novapress ® MULTI II
2Pages

Catalog excerpts

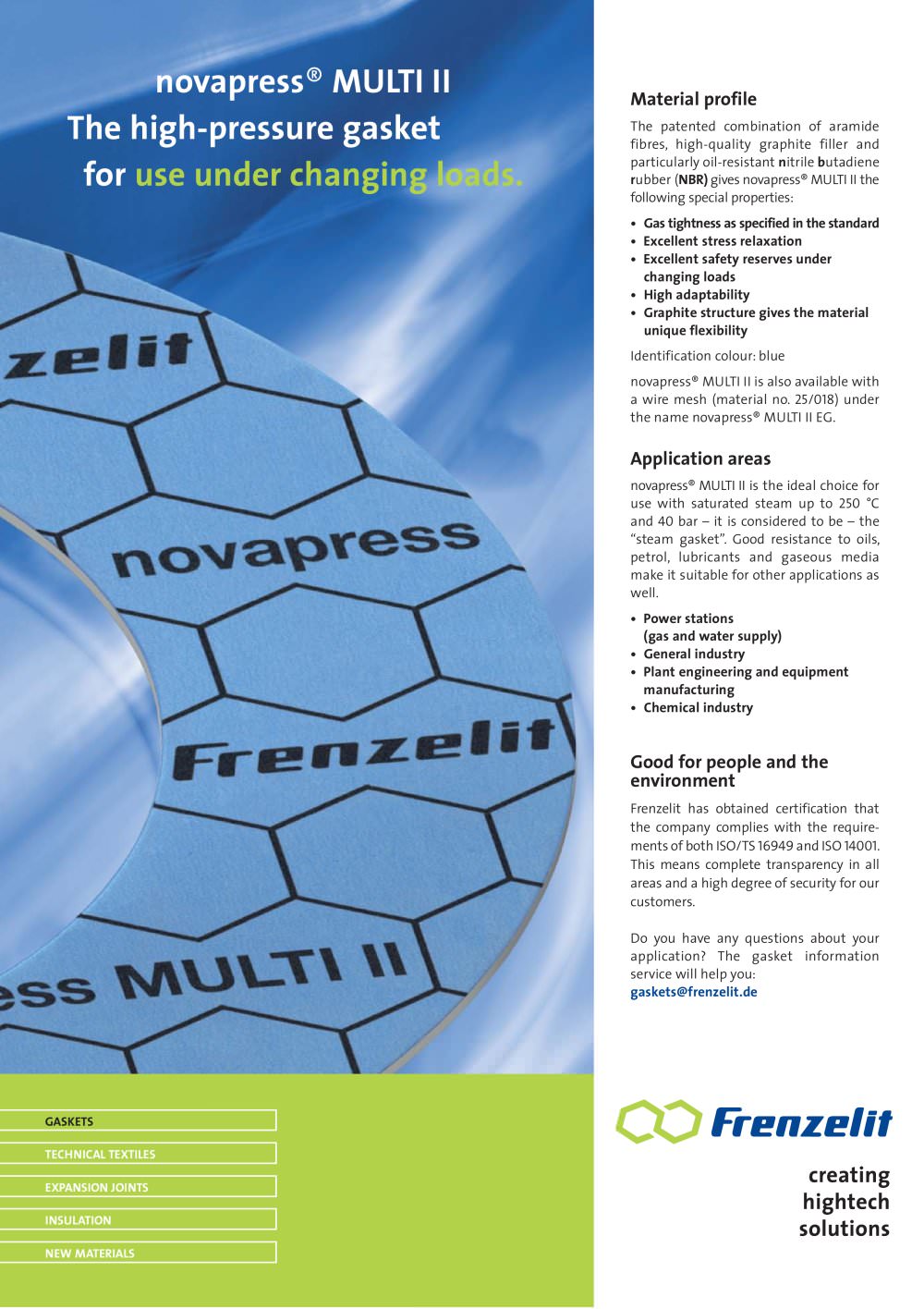

Material profile The patented combination of aramide fibres, high-quality graphite filler and particularly oil-resistant nitrile butadiene rubber (NBR) gives novapress® MULTI II the following special properties: • Gas tightness as specified in the standard • Excellent stress relaxation • Excellent safety reserves under changing loads • High adaptability • Graphite structure gives the material unique flexibility Identification colour: blue novapress® MULTI II is also available with a wire mesh (material no. 25/018) under the name novapress® MULTI II EG. Application areas novapress® MULTI II is the ideal choice for use with saturated steam up to 250 °C and 40 bar – it is considered to be – the “steam gasket”. Good resistance to oils, petrol, lubricants and gaseous media make it suitable for other applications as well. • Power stations (gas and water supply) • General industry • Plant engineering and equipment manufacturing • Chemical industry Good for people and the environment Frenzelit has obtained certification that the company complies with the requirements of both ISO/TS 16949 and ISO 14001. This means complete transparency in all areas and a high degree of security for our customers. Do you have any questions about your application? The gasket information service will help you: gaskets@frenzelit.de novapress® MULTI II The high-pressure gasket for use under changing loads. GASKETS TECHNICAL TEXTILES EXPANSION JOINTS INSULATION NEW MATERIALS

Open the catalog to page 1

Material data General data Binders NBR Approvals DVGW, BAM (up to max. 60°C/130 bar) Colour both sides blue Anti-stick coating both sides A 310 Sheet size and thickness tolerance according 28 091-1 Physical properties Standard Unity Value* Gasket thickness 2.0 mm Density DIN 28 090-2 [g/cm3] 1.50 Tensile strength DIN 52 910 longitudinal [N/mm2] 28 transverse [N/mm2] 12 Residual stress ódE/16 DIN 52 913 175 °C [N/mm2] 32 300°C [N/mm2] 22 Compressibility ASTM F 36 J [%] 7 Recovery ASTM F 36 J [%] 60 Cold compressibility åKSW DIN 28 090-2 [%] 6 Cold recovery åKRW DIN 28 090-2 [%] 3 Hot creep...

Open the catalog to page 2
