novapress ® BASIC

novapress ® BASIC
2Pages

Catalog excerpts

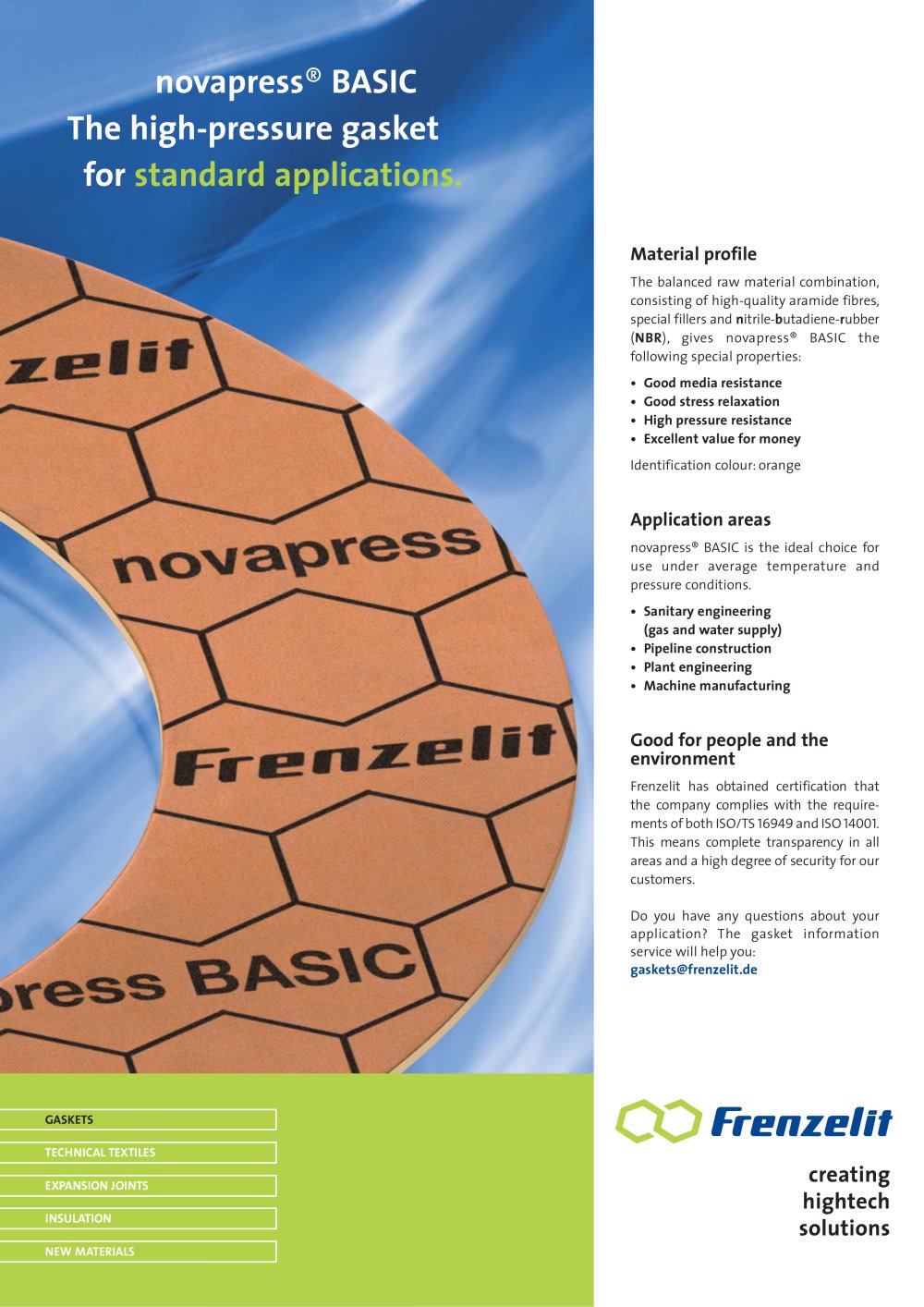

Material profile The balanced raw material combination, consisting of high-quality aramide fibres, special fillers and nitrile-butadiene-rubber (NBR), gives novapress® BASIC the following special properties: • Good media resistance • Good stress relaxation • High pressure resistance • Excellent value for money Identification colour: orange Application areas novapress® BASIC is the ideal choice for use under average temperature and pressure conditions. • Sanitary engineering (gas and water supply) • Pipeline construction • Plant engineering • Machine manufacturing Good for people and the environment Frenzelit has obtained certification that the company complies with the requirements of both ISO/TS 16949 and ISO 14001. This means complete transparency in all areas and a high degree of security for our customers. Do you have any questions about your application? The gasket information service will help you: gaskets@frenzelit.de novapress® BASIC The high-pressure gasket for standard applications. GASKETS TECHNICAL TEXTILES EXPANSION JOINTS INSULATION NEW MATERIALS

Open the catalog to page 1

Product data • Dimensions in mm: 1000 x 1500 1500 x 1500 3000 x 1500 • Thicknesses in mm: 0.3/0.5/0.75/1.0/1.5/2.0/3.0/4.0 • Further dimensions and thicknesses are available on request Material data Deformation under temperature 2.0 mm Recommendations for use according to the pressure and temperature General data Binders NBR Approvals DVGW, SVGW, HTB, KTW, VP-401,WRC Colour both sides orange Anti-stick coating serially one side anti-stick coating Sheet size and thickness tolerance according DIN 28 091-1 Physical properties Standard Unity Value* Gasket thickness 2.0 mm Density DIN 28 090-2...

Open the catalog to page 2
