TrueTilt™, Dual Axis, Wide Angle, Electrolytic Tilt Sensor

TrueTilt™, Dual Axis, Wide Angle, Electrolytic Tilt Sensor

Product catalog summary

Overview: The 0717-4319-99 TrueTILT™ sensor is a dual-axis, wide-angle electrolytic tilt sensor designed for cost-effective applications requiring high accuracy and production volumes. It features robust metal construction for durability and precise performance.

Applications: This sensor is suitable for various applications including wheel alignment, navigation and GPS compensation, automotive rollover detection, RV leveling, and medical instruments.

Specifications:

Angle Range: ±50°
Resolution: < 0.2 arc minutes (0.003°)
Repeatability: ±0.1°
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +95°C
Null Voltage: < 0.03 Volts
Null Current (max): 0.2 mA
Null Impedance (nom): 50 K Ohms at 25°C
Symmetry: 5%
Null Offset (max): 6.0°
Mechanical Crosstalk: 0.025°
Temperature Coefficient: Null - 20 arc sec/°C, Scale - 0.1%/°C
Stability at 24 Hours: ±0.1°

Physical Dimensions:

Height: 13.5 mm
Diameter - Cap: 8.25 mm
Diameter - Flange: 9.14 mm
Lead Length: 5.0 mm
Lead Diameter: 0.5 mm
Lead Spacing: 2.5 mm

Testing and Circuitry: Tests involve exciting the outer electrodes with an AC signal at 400 Hz to achieve maximum current at null. Output readings are taken between the center electrode and the center of balanced resistors. Ensure circuits are free of direct current to prevent damage or instability.

Figures: The document includes figures illustrating impedance vs. temperature and output sensitivity vs. tilt angle, highlighting the sensor's performance characteristics.

Catalog excerpts

TrueTilt™, Dual Axis, Wide Angle, Electrolytic Tilt Sensor-1

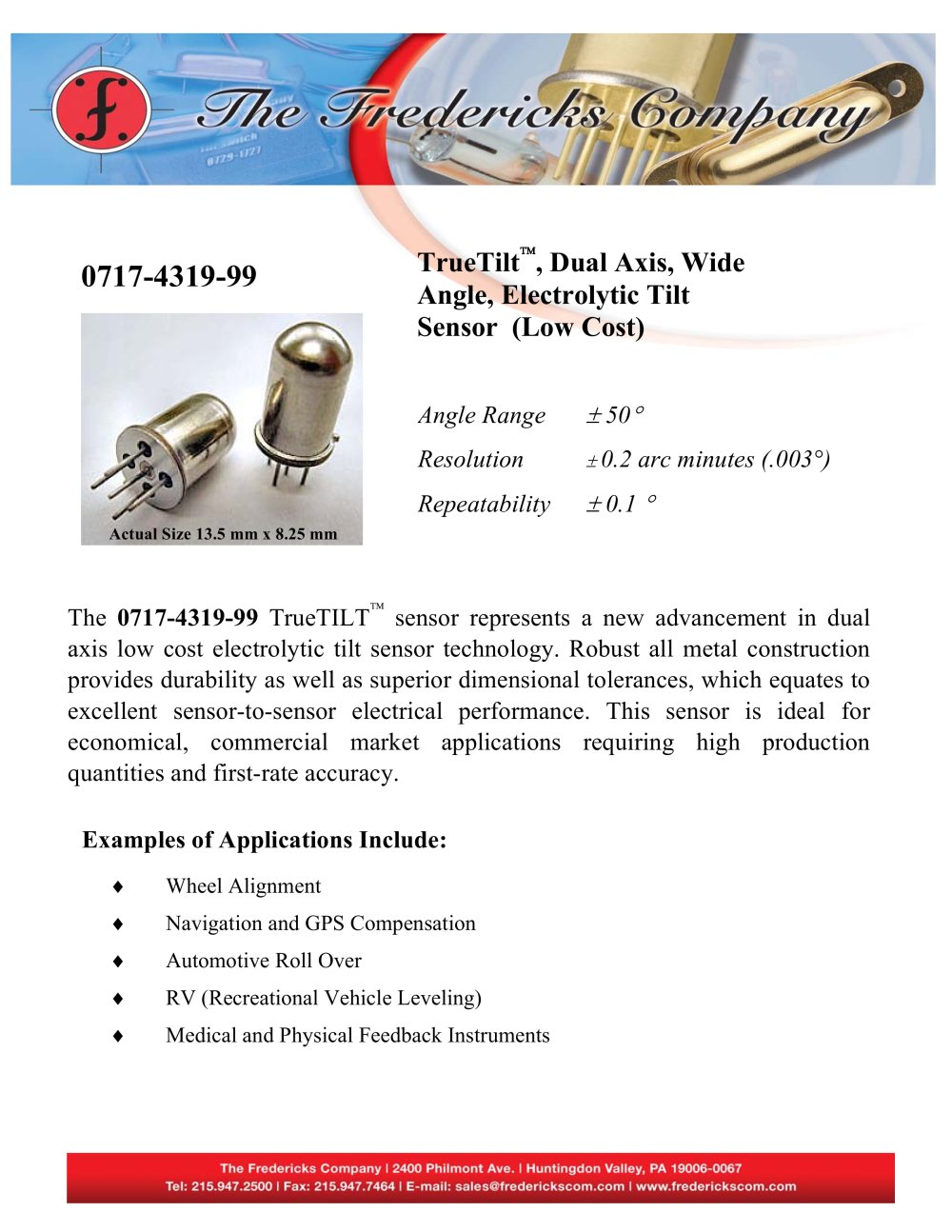

TrueTilt™, Dual Axis, Wide Angle, Electrolytic Tilt Sensor (Low Cost) Angle Range ± 50° Resolution ± 0.2 arc minutes (.003°) Repeatability ± 0.1 ° 0717-4319-99 Actual Size 13.5 mm x 8.25 mm The 0717-4319-99 TrueTILT™ sensor represents a new advancement in dualaxis low cost electrolytic tilt sensor technology. Robust all metal constructionprovides durability as well as superior dimensional tolerances, which equates toexcellent sensor-to-sensor electrical performance.This sensor is ideal foreconomical, commercial market applications requiring high productionquantities and first-rate accuracy. Examples of Applications Include: Wheel Alignment Navigation and GPS Compensation Automotive Roll Over RV (Recreational Vehicle Leveling) Medical and Physical Feedback Instruments
