0737-0604-99 Single Axis, Linear Output, Electrolytic Tilt Sensor

0737-0604-99 Single Axis, Linear Output, Electrolytic Tilt Sensor
2Pages

Catalog excerpts

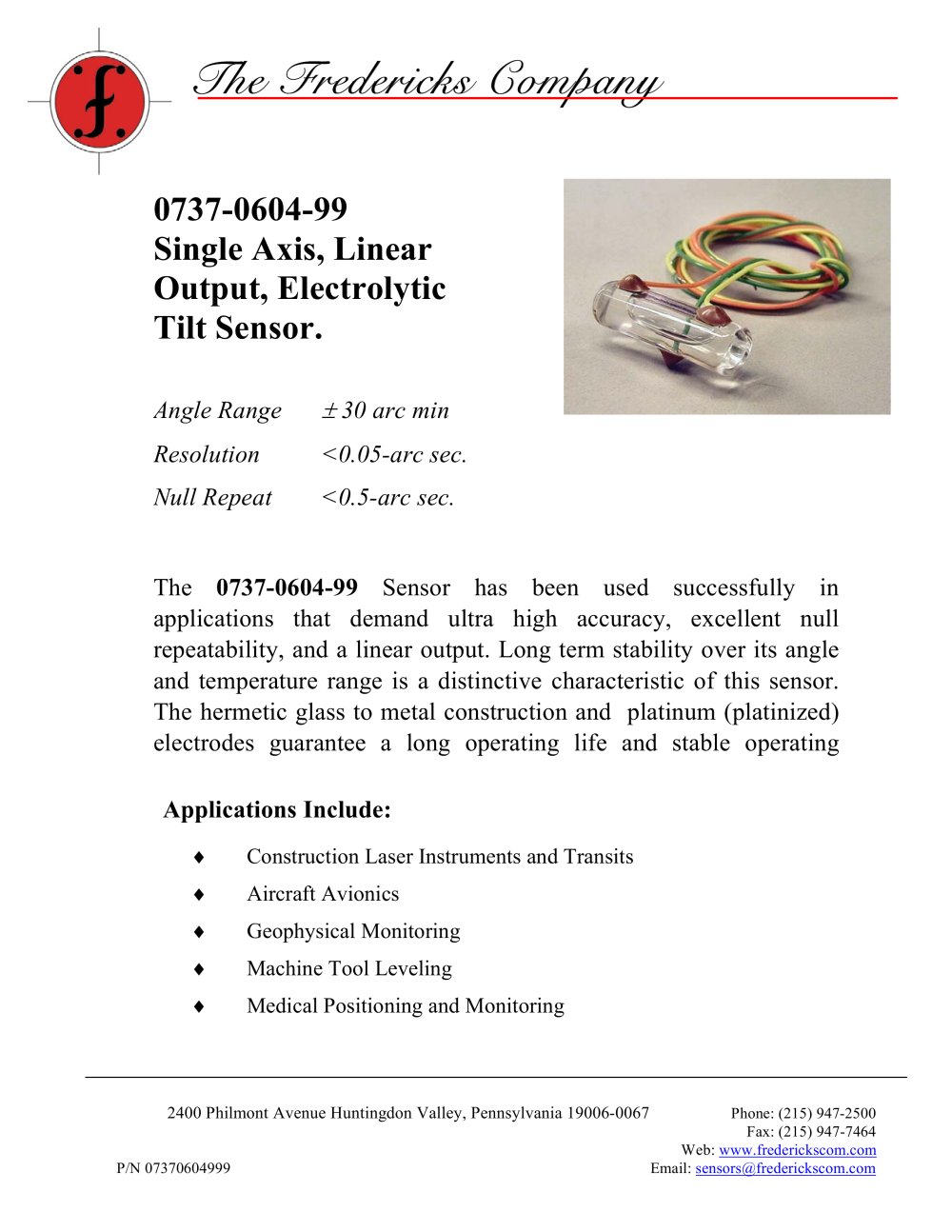

0737-0604-99 Single Axis, Linear Output, Electrolytic Tilt Sensor - 1

The Fredericks Company 0737-0604-99 Single Axis, Linear Output, Electrolytic Tilt Sensor. Angle Range ± 30 arc min Resolution <0.05-arc sec. Null Repeat <0.5-arc sec. The 0737-0604-99 Sensor has been used successfully inapplications that demand ultra high accuracy, excellent nullrepeatability, and a linear output. Long termstability over its angle and temperature range is a distinctive characteristic of this sensor.The hermetic glass to metal construction and platinum (platinized)electrodes guarantee a long operating life and stable operating Applications Include: Construction Laser Instruments and Transits Aircraft Avionics Geophysical Monitoring Machine Tool Leveling Medical Positioning and Monitoring 2400 Philmont Avenue Huntingdon Valley, Pennsylvania 19006-0067 Phone: (215) 947-2500 Fax: (215) 947-7464 Web: www.frederickscom.com P/N 07370604999 Email: sensors@frederickscom.com
