0729-1723-99 Microprocessor Based, Dual Axis, Signal Conditioner Assembly

Product catalog summary

Overview: The document describes the Signal Conditioner Assembly by The Fredericks Company, which integrates a microprocessor-based dual-axis tilt sensor. It is designed for applications requiring high accuracy, low power consumption, and durability in various environments.

Specifications:

Power Supply: Operates on a single power supply ranging from +7 to +16 VDC.
Angle Range: ±45 degrees with a linear range of ±25 degrees.
Output: Provides a 0 to 5 VDC analog output and optional digital pulse-width output.
Operating Temperature: -40°C to +85°C, with storage temperature ranging from -55°C to +100°C.
Resolution and Repeatability: Resolution is less than 0.2 arc minutes, and repeatability is 0.1°.

Applications: The assembly is suitable for automotive wheel alignment, camera and vehicle stabilization, geophysical monitoring, machine tool leveling, and medical positioning and monitoring.

Mechanical and Environmental Specifications:

Case Dimensions: Length 2.500”, Width 2.500”, Height 0.900”.
Material: Magnetic.
Environmental: Operating temperature range is -40°C to +85°C, and storage temperature range is -55°C to +100°C.

Circuit Board Specifications:

Part Number: 1-6200-002.
Power Supply Current: Typical 11.0 mA at 9VDC.
Analog Output: Maximum voltage is power supply voltage minus 2 volts, with a resolution of 1.5 mV.
Digital Output: Typical voltage is 0 to 5 volts, with a resolution of 0.1% and frequency of 488 Hz.

Connector Details: The connector includes pins for power supply, common ground, X and Y axis analog outputs, and optional pulse width outputs for both axes.

Catalog excerpts

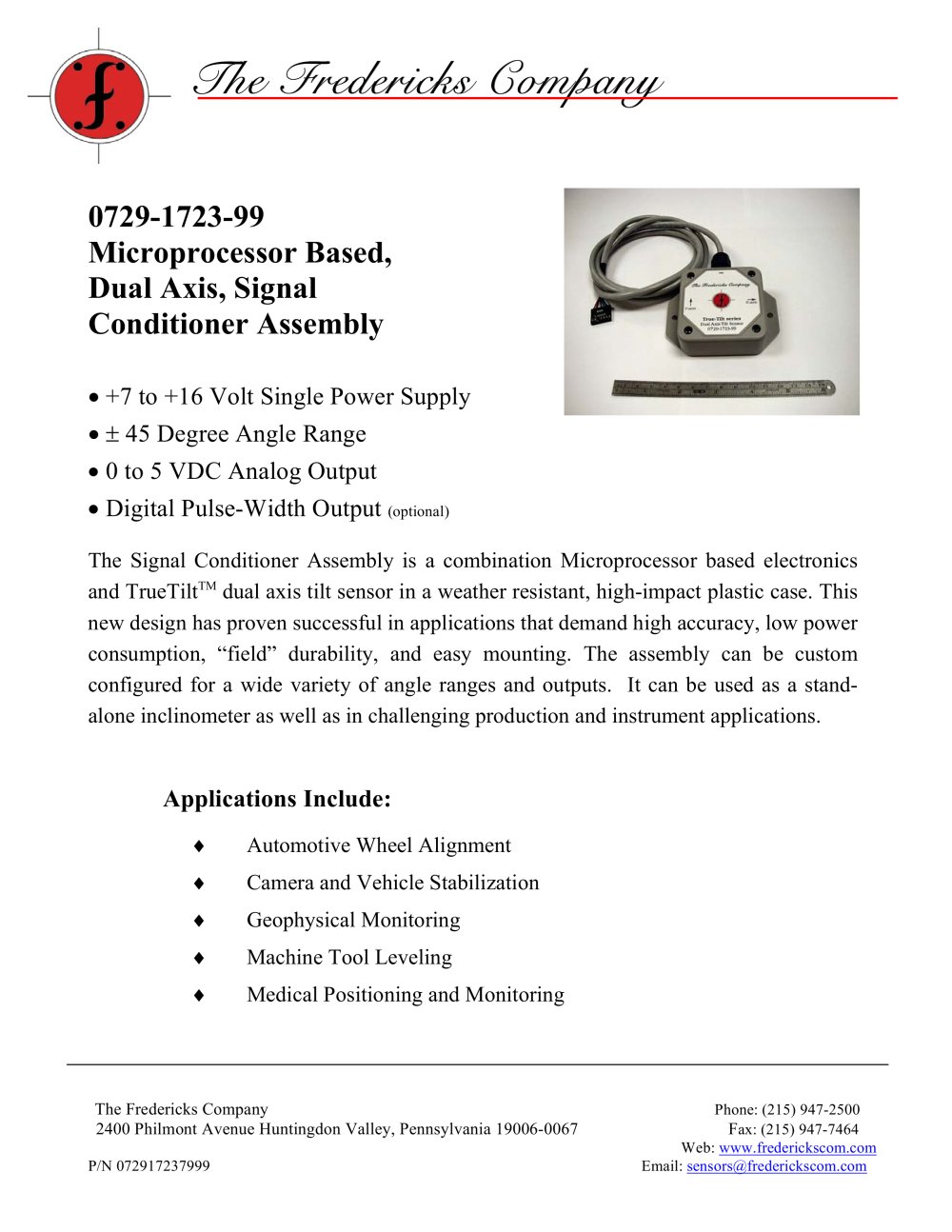

0729-1723-99 Microprocessor Based, Dual Axis, Signal Conditioner Assembly-1

The Fredericks Company • +7 to +16 Volt Single Power Supply • ± 45 Degree Angle Range • 0 to 5 VDC Analog Output • Digital Pulse-Width Output (optional) The Signal Conditioner Assembly is a combination Microprocessor based electronicsand TrueTiltTM dual axis tilt sensor in a weather resistant, high-impact plastic case. This new design has proven successful in applications that demand high accuracy, low powerconsumption, “field” durability, and easy mounting. The assembly can be customconfigured for a wide variety of angle ranges and outputs. It can be used as a stand-alone inclinometer as well as in challenging production and instrument applications. 0729-1723-99 Microprocessor Based, Dual Axis, Signal Conditioner Assembly Applications Include: Automotive Wheel Alignment Camera and Vehicle Stabilization Geophysical Monitoring Machine Tool Leveling Medical Positioning and Monitoring The Fredericks Company Phone: (215) 947-2500 2400 Philmont Avenue Huntingdon Valley, Pennsylvania 19006-0067 Fax: (215) 947-7464 Web: www.frederickscom.com P/N 072917237999 Email: [email protected]
