0715-4101-99 Single Axis, Mid-Range Angle, Electrolytic Tilt Sensor

0715-4101-99 Single Axis, Mid-Range Angle, Electrolytic Tilt Sensor

Product catalog summary

Overview: The Fredericks Company presents the 0715-4101-99 Single Axis, Mid-Range Angle, Electrolytic Tilt Sensor, designed for applications requiring high accuracy over wider-angle ranges. It offers excellent stability, repeatability, and a long operating life due to its hermetic glass to metal construction and solid platinum electrodes.

Applications: This sensor is suitable for automobile wheel alignment, aircraft avionics, geophysical monitoring, machine tool leveling, and medical positioning and monitoring.

Operating Specifications:

Operating Range: ±9°
Linear Range: ±3 degrees
Null Voltage: < 0.010 Volts
Null Current (max): 2.5 mA (continuous)
Null Impedance (nom): 6000 Ohms at 25°C
Null Repeatability: < 12 arc seconds
Resolution: < 1 arc minute
Symmetry: < 20%
Operating Temperature: -20°C to +50°C
Storage Temperature: -50°C to +100°C
Time Constant: < 500 msec
Temperature Coefficient: +0.5 arc minutes/°C at null

Physical Dimensions:

Vial Length: 1.23” (31.2mm)
Vial Diameter: 0.36” (9.1mm)
Lead Length: 6.0” (152.4mm)

Sensor Test Circuitry: Tests involve exciting the electrodes with a 400 Hz AC signal to produce maximum current at null. Output readings are taken between the center electrode and the center of balanced resistors R1 and R2. Tests are conducted at +25°C.

Important Note: Ensure all test and operating circuits are free of direct current to prevent damage and instability.

Figures:

Figure 1: Output Sensitivity - Shows the percentage output relative to tilt angle in arc minutes.
Figure 2: Impedance/Temperature - Displays impedance in K-Ohms across a temperature range from -20°C to +50°C.

Catalog excerpts

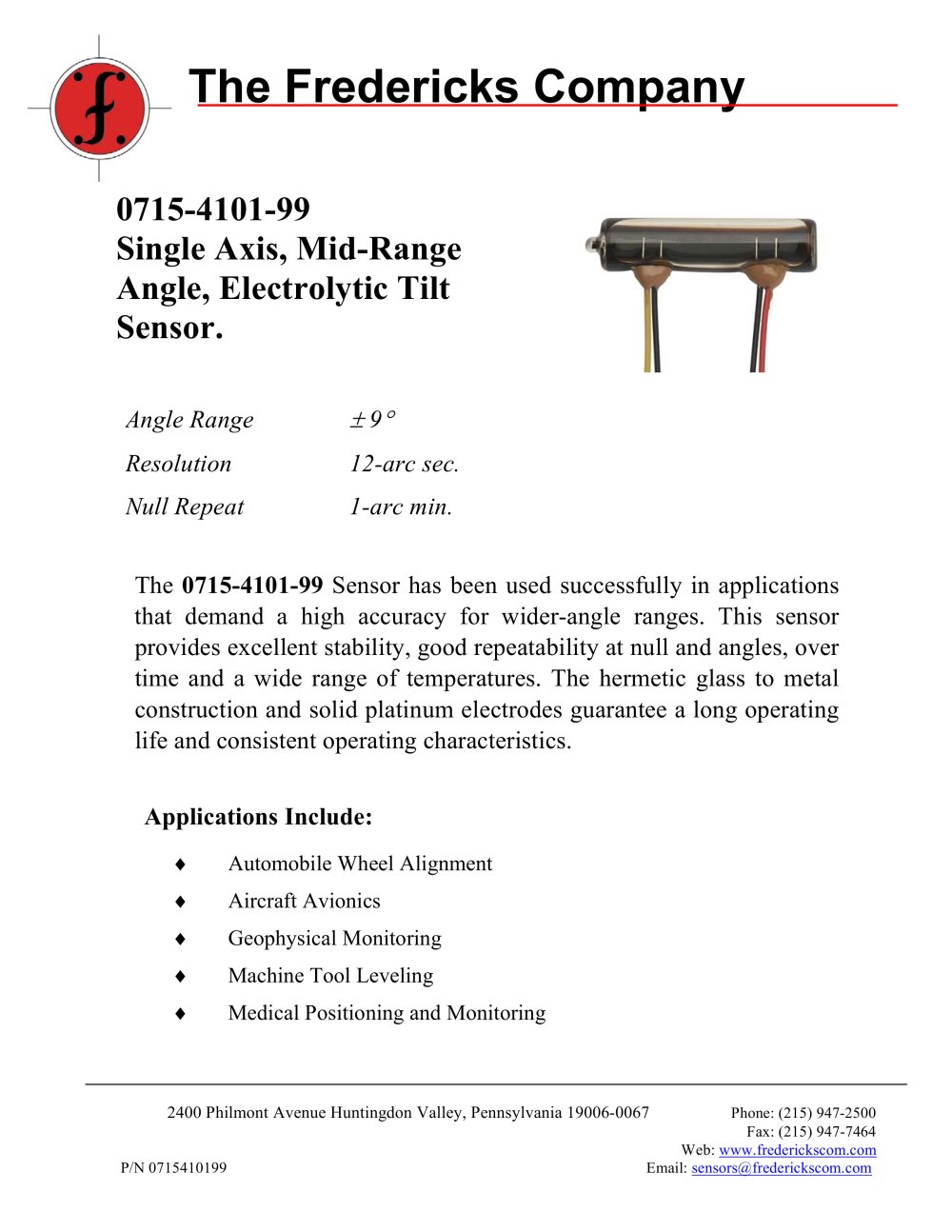

0715-4101-99 Single Axis, Mid-Range Angle, Electrolytic Tilt Sensor-1

The Fredericks Company 0715-4101-99 Single Axis, Mid-Range Angle, Electrolytic Tilt Sensor. Angle Range ± 9° Resolution 12-arc sec. Null Repeat 1-arc min. The 0715-4101-99 Sensor has been used successfully in applicationsthat demand a high accuracy for wider-angle ranges. This sensor provides excellent stability, good repeatability at null and angles, overtime and a wide range of temperatures. The hermetic glass to metalconstruction and solid platinum electrodes guarantee a long operatinglife and consistent operating characteristics. Applications Include: Automobile Wheel Alignment Aircraft Avionics Geophysical Monitoring Machine Tool Leveling Medical Positioning and Monitoring 2400 Philmont Avenue Huntingdon Valley, Pennsylvania 19006-0067 Phone: (215) 947-2500 Fax: (215) 947-7464 Web: www.frederickscom.com P/N 0715410199 Email: [email protected]

Open the catalog to page 1
