The Fredericks Company
0711-0763-99 Single Axis, Narrow Angle, Low Current, Electrolytic Tilt Sensor.

0711-0763-99 Single Axis, Narrow Angle, Low Current, Electrolytic Tilt Sensor.

Product catalog summary

Overview: The Fredericks Company's 0711-0763-99 is a single-axis, narrow-angle, low-current electrolytic tilt sensor. It is designed for applications requiring high accuracy in small angle ranges and excellent null repeatability. The sensor is known for its stability over time and across a wide temperature range, thanks to its hermetic glass-to-metal construction and solid platinum electrodes.

Applications: This sensor is suitable for use in construction laser instruments, aircraft avionics, geophysical monitoring, machine tool leveling, and medical positioning and monitoring.

Specifications:

Angle Range: ±1°
Resolution: 1 arc second
Null Repeatability: ≤ 3 arc seconds
Operating Range: +1°
Linear Range: +5 arc minutes
Null Voltage: < 0.005 Volts
Null Current (max): 0.5 mA (continuous)
Null Impedance (nom): 21 KOhms at 25°C
Operating Temperature: -20°C to +50°C
Storage Temperature: -50°C to +100°C
Time Constant: < 500 msec
Materials: Non-magnetic
Temperature Coefficient: +0.5 arc seconds/°C at null

Physical Dimensions:

Vial Length: 1.25” (31.7mm)
Vial Diameter: 0.281” (7.1mm)
Lead Length: 0.125” (3.1mm)

Testing and Circuitry: Tests involve exciting the electrodes with a 400 Hz AC signal to produce maximum current at null. Output readings are taken between the center electrode and the center of balanced resistors. It is crucial to ensure that all test and operating circuits are free of direct current to prevent damage or instability.

Figures: The document includes figures illustrating impedance versus temperature and output sensitivity versus tilt angle, providing visual data on sensor performance.

Catalog excerpts

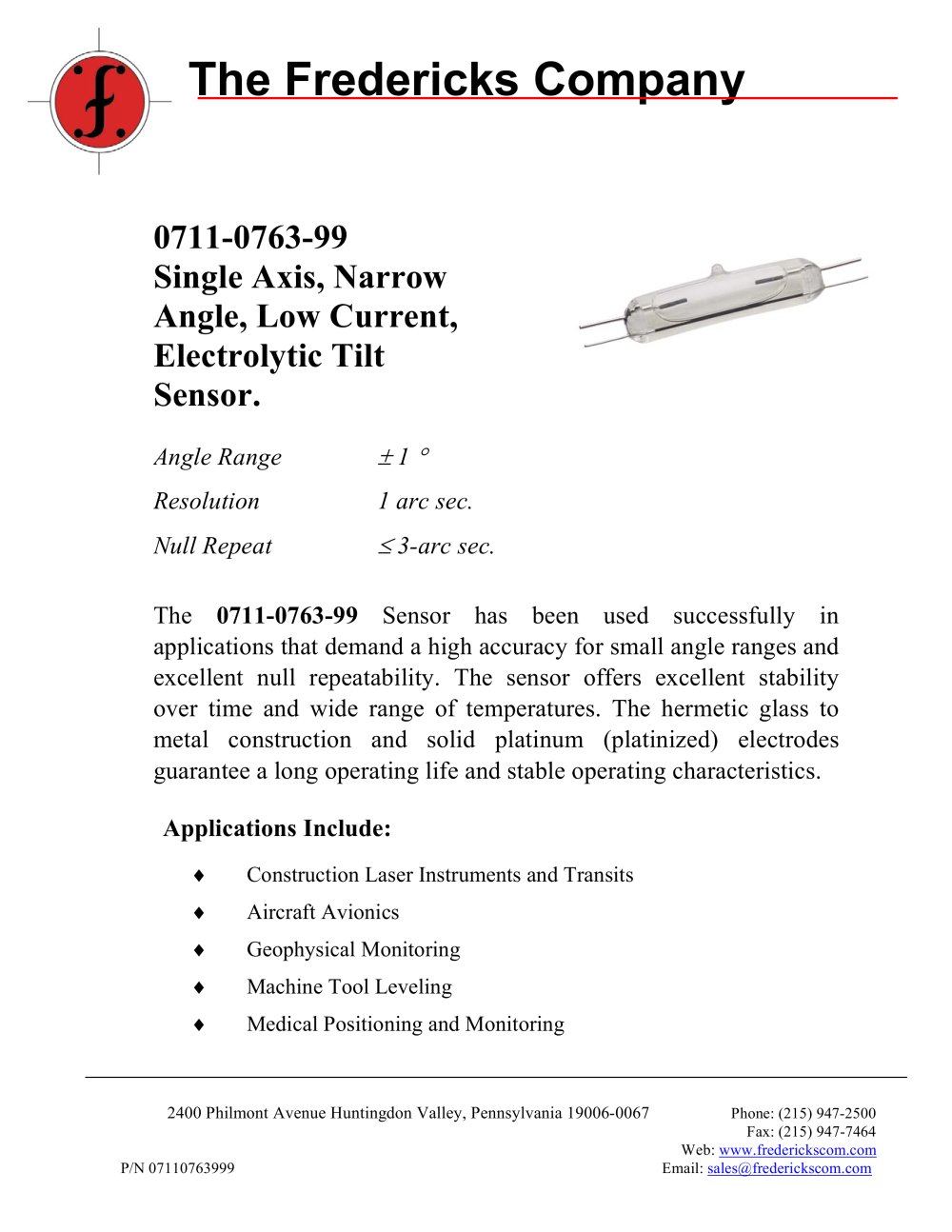

0711-0763-99 Single Axis, Narrow Angle, Low Current, Electrolytic Tilt Sensor.-1

The Fredericks Company 0711-0763-99 Single Axis, Narrow Angle, Low Current, Electrolytic Tilt Sensor. The 0711-0763-99 Sensor has been used successfully inapplications that demand a high accuracy for small angle ranges andexcellent null repeatability. The sensor offers excellent stability over time and wide range of temperatures. The hermetic glass tometal construction and solid platinum (platinized) electrodesguarantee a long operating life and stable operating characteristics. Applications Include: Construction Laser Instruments and Transits Aircraft Avionics Geophysical Monitoring Machine Tool Leveling Medical Positioning and Monitoring 2400 Philmont Avenue Huntingdon Valley, Pennsylvania 19006-0067 Phone: (215) 947-2500 Fax: (215) 947-7464Web: www.frederickscom.comP/N 07110763999 Email: [email protected] Angle Range ± 1 ° Resolution 1 arc sec. Null Repeat 3-arc sec.

Open the catalog to page 1
