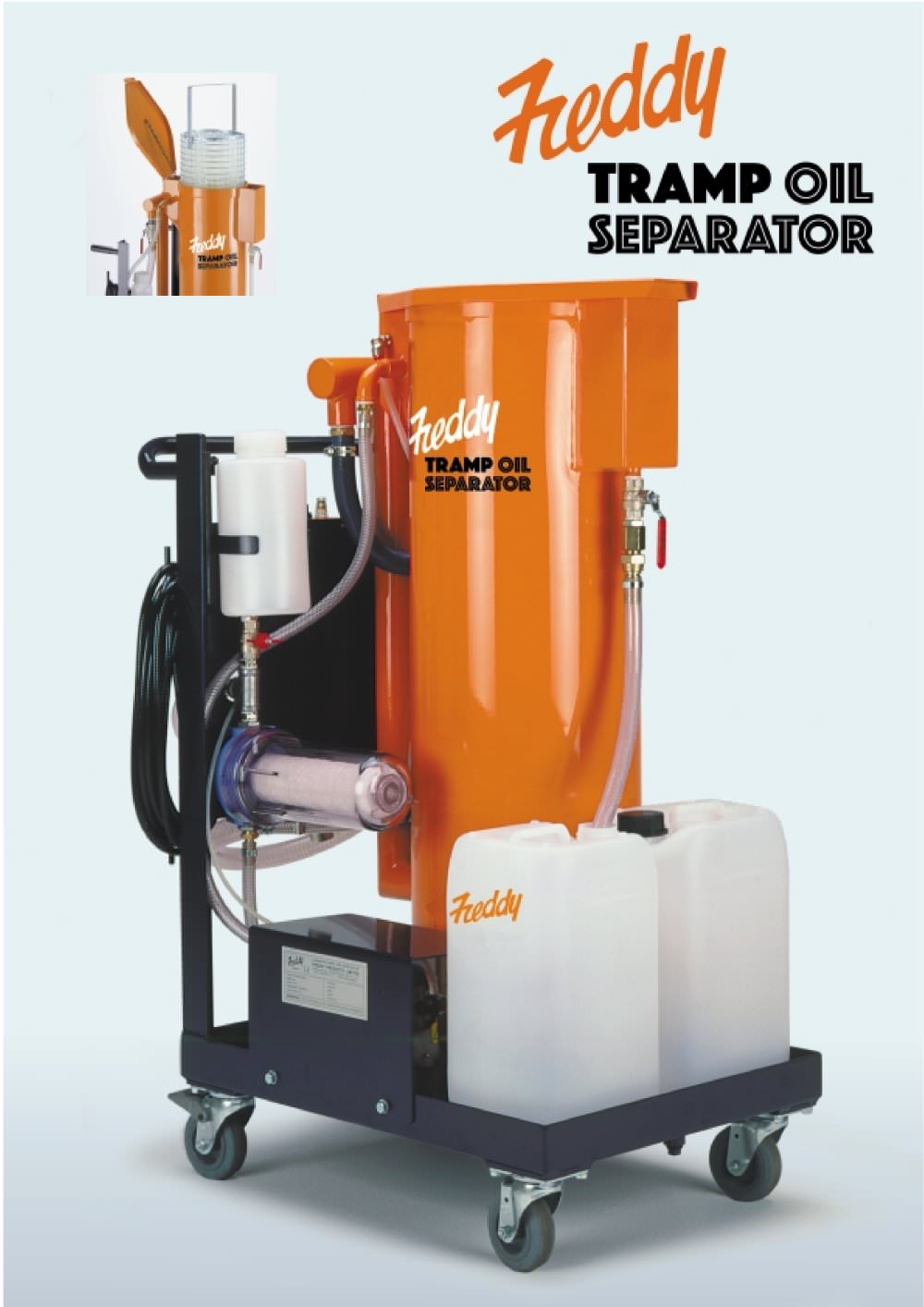

Freddy Tramp Oil Separator
4Pages

Fluid is pumped to the top of the tank and passes down through the filter media. > Filter media removes tramp oil which is siphoned off into a separate collection vessel. > Cleaned coolant enters the UV chamber where Ultra Violet rays control the bacterial level. > Clean coolant is returned to the machine tool sump. Inlet pipe attaches to float(see back page for options). > Contaminated coolant enters the pre-filter to remove large particles of debris. The Freddy Tramp Oil Separator is designedto remove tramp oil from coolants in a varietyof applications, including machine toolsumps,...

Power Unit110v, 240v,Compressed Air Max water lift2000 mm3000 mm Water Flowltr/min2.5 - 5 2.5 - 5 WorkingTank capacity50 ltrs50 ltrs Lengthmm675675 Heightmm12101210 Widthmm510510 Weightkg50 kg empty 120 kg full50 kg empty 120 kg full > All performance figures are taken from machines selected at random from stock, using standard length hoses and tested at ground level. size="-1">

STATIC FLOAT For use on machine toolswhere the fluid levelremains constant in thesump. APPLICATIONS: ROPE PRE-FILTERSAvailable in 50 & 100 micron.Washable.Standard pre-filter. STANDARD MACHINETOOL SUMP TANKS TWIN BALL FLOAT For use on machine toolswhere the workingheight of the fluid isconstantly changing inthe sump. APPLICATIONS: UNDER FLOOR ANDROLLING MILL PITS STEEL MESH PRE-FILTERSAvailable in 450 & 850 micron.Washable.For removing large particulatesfrom heavily contaminatedtramp oils. NYLON PRE-FILTERS Available from 80 to 350 micron.Washable. MAGNETIC FLOAT For use on sumps...
