Freddy Superminor Coolant Vac
1 / 2 PagesView full catalog

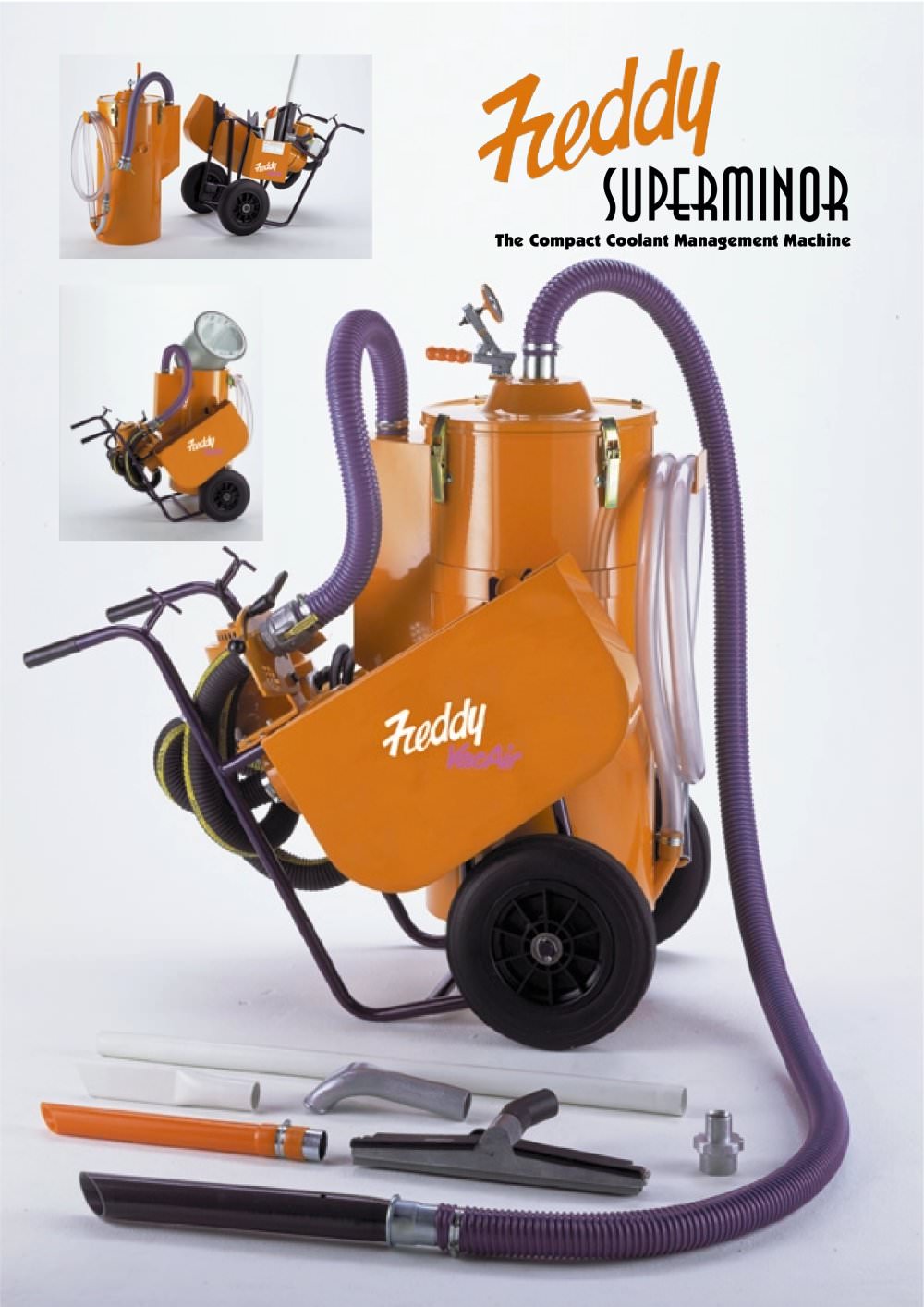

Freddy Superminor Coolant Vac
Product catalog summary
Overview: The Freddy Superminor is a compact coolant management machine designed to efficiently remove coolant, swarf, and oil from machine tool sumps. It separates particulates and returns filtered coolant for reuse or disposal. The unit is suitable for narrow aisles and confined spaces, incorporating benefits from larger models.
Specifications:
- Power Unit: Available in 110v 2kw, 240v/415v 3kw options.
- Dimensions: Height - 1310 mm, Width - 680 mm, Length - 1240 mm.
- Weight: 90-95 kg.
- Performance: Suction rate over five litres per second, return rate approximately two litres per second.
- Air Flow: 2400-3000 ltr/min.
- Water Flow: IN - 190-330 ltr/min, OUT - 60-130 ltr/min.
Key Features:
- Interchangeable Drums: Allows handling of different fluids without cross-contamination.
- Overfill Prevention System: Automatic float assembly stops suction when the tank is full.
- Motor Assembly: Bypass motors create vacuum for suction and pressure for return.
- Two-Way Valve: Facilitates easy switching between suction and blowing.
- Solid 14-Inch Wheels: Ensures maneuverability over rough factory floors.
- Paintwork and Hoses: Compliant with British Standard oil and acid-resistant specifications.
Performance Tolerance: All performance figures have a tolerance of ±10% and are based on tests conducted at ground level with standard length hoses.
Contact Information: For demonstrations, contact Freddy Products Limited at 01386 561113 or visit their website at www.freddy-products.co.uk.
See more
Catalog excerpts
The Compact Coolant Management Machine Superminor >
Open the catalog to page 1
SUCTION AND RETURNSuction rate of the Superminor is overfive litres per second*. The return rateis approximately two litres per second. INTERCHANGEABLE DRUMSThis feature enables one machine toefficiently deal with different types offluid without cross contamination.OVERFILL PREVENTION SYSTEMThe float assembly automatically stopssuction when the tank is full, protectingthe motors.MOTOR ASSEMBLYThe bypass motors create vacuum forsuction and pressure for return.Available in 240 volt 3kw, 415 volt 3kwand110 volt 2kw options.TWO WAY VALVEEnables change from suck to blow bysimply moving the two-way...
