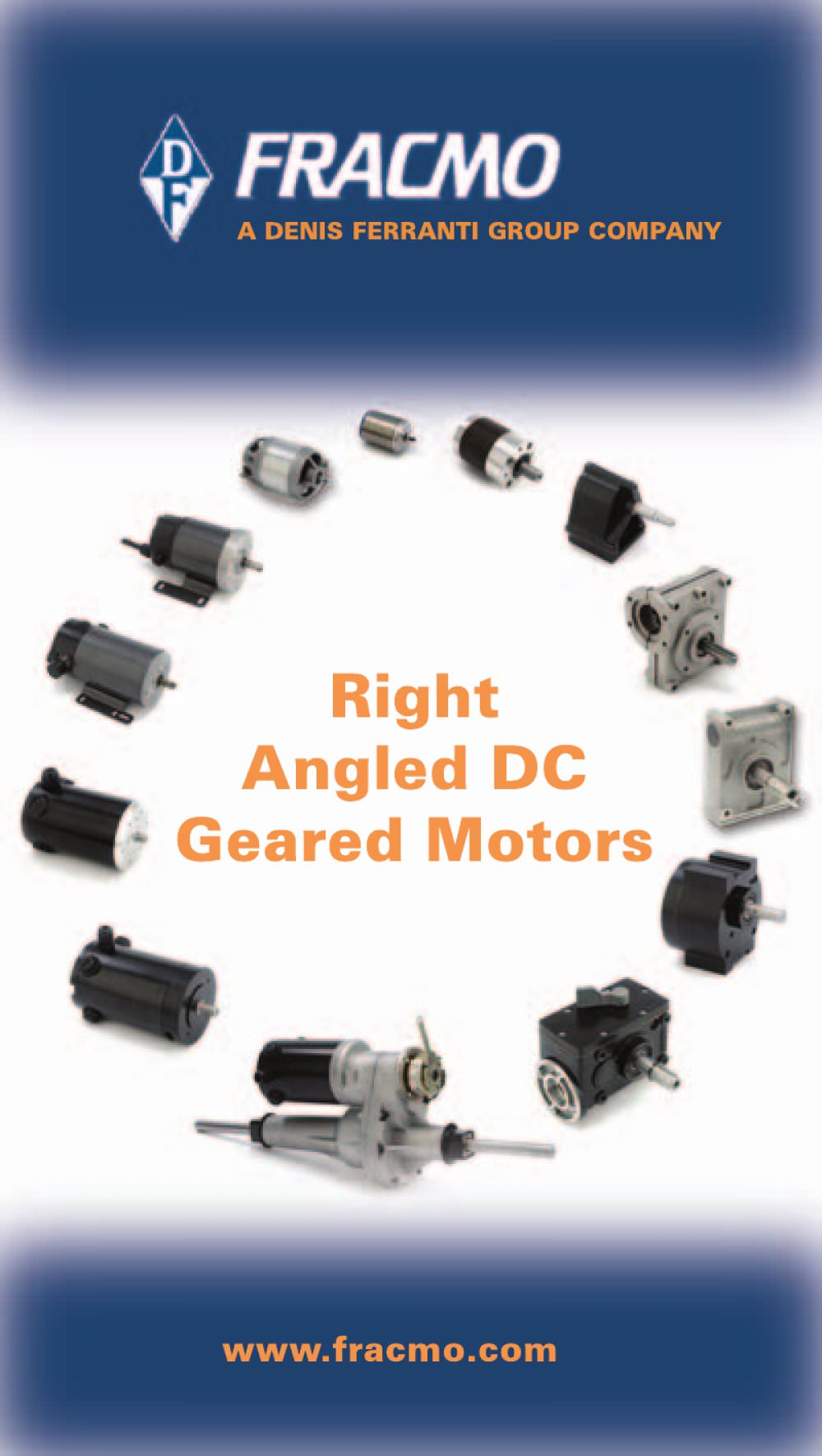

Fracmo Right Angled DC Geared Motor

Product catalog summary

Overview: The document provides technical specifications and performance data for the G30 and G34 series right-angled DC geared motor units produced by Fracmo, a Denis Ferranti Group company. These motors are designed for versatility and reliability, particularly in mobility applications.

G30/PM45 Geared Motor Unit:

Voltage Range: 12 to 180 VDC
Rotation: Reversible
Connections: Flying leads or customer-preferred plugs
Static Parking Brake: 12/24 Volts, with or without hand release
Output Power: 37 to 250 watts
Speed Range: 55 to 450 RPM
Insulation: Class F
Design: Two-stage gear configuration with a hardened steel worm and bronze worm wheel
Features: Long-life, low-noise brushes, cartridge brush gear for easy maintenance, totally enclosed to IP44
Options: 4 motor stack lengths, 6 gear ratios

G34/PM62 Geared Motor Unit:

Voltage Range: 12 to 180 VDC
Rotation: Reversible
Connections: Flying leads or customer-preferred plugs
Static Parking Brake: 12/24 Volts, with or without hand release
Output Power: 100 to 500 watts
Speed Range: 57 to 250 RPM
Insulation: Class F
Design: Two-stage gearbox with a steel worm and alloy worm wheel, spur gears supported by ball bearings
Features: Disengage mechanism for freewheeling, adaptable to PM62, PM55, and PM45 frame motors
Options: 13 motor stack lengths, 3 motor frame sizes

Performance Data:

G30/PM45: Torque range from 1.28 to 11 Nm, speed range from 55 to 450 RPM, power range from 37 to 250 watts
G34/PM62: Torque range from 5.8 to 42 Nm, speed range from 57 to 250 RPM, power range from 100 to 500 watts
Gear Ratios: Various options available for both G30 and G34 units, allowing customization based on application needs

Applications: These geared motor units are primarily used in the mobility market, offering reliable and customizable drive solutions.

Catalog excerpts

● Voltage Range: 12 to 180 VDC. > Geared Motor Unit ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Output power range 37 to 250 watts. ● Speed Range 55 to 450 RPM. ● Class F insulation. ● Long-life, low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. ● Option of 4 motor stack lengths. > Performance Features

Open the catalog to page 2

Geared Motor Unit MINMAXMINMAXMINMAXMINMAX TORQUE Nm 1.285.12.56113.4114.3111 SPEED RPM 55450554505545055450 POWER WATTS 378075160100225120250 > Performance Data Fracmo. Denis Ferranti Group Օ Caernarfon Road Bangor Օ Gwynedd LL57 4SP Օ United Kingdom > Denis Ferranti Meters Ltd. Registered in England & Wales. Registered Number: 219880 . Registered Office: Gorddinog, Llanfairfechan, Gwynedd LL33 0HS size="-1">

Open the catalog to page 3

Geared Motor Unit ● Voltage Range: 12 to 180 VDC. ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Output power range 100 to 500 watts. ● Speed Range 57 to 250 RPM. ● Class F insulation. ● Long-life low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. ● Option of 13 motor stack lengths. ● Option of 3 motor Frame sizes. > Performance Features

Open the catalog to page 5

G34PM62 Engineering Drawing Geared Motor Unit MINMAXMINMAXMINMAXMINMAXMINMAX TORQUE Nm 5.813.47.317.49.221.513.232.316.542.0 SPEED RPM 5725057250572505725057250 POWER WATTS 100190130240160320240430320500 > Performance Data Fracmo. Denis Ferranti Group Օ Caernarfon Road Bangor Օ Gwynedd LL57 4SP Օ United Kingdom > Denis Ferranti Meters Ltd. Registered in England & Wales. Registered Number: 219880 . Registered Office: Gorddinog, Llanfairfechan, Gwynedd LL33 0HS size="-1">

Open the catalog to page 6

Geared Motor Unit ● Voltage Range: 12 to 180 VDC. ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Output power range 45 to 250 watts. ● Speed Range 57 to 250 RPM. ● Class F insulation. ● Long-life low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. ● Option of 13 motor stack lengths. ● Option of 3 motor Frame sizes. > Performance Features

Open the catalog to page 8

G34PM45 Engineering Drawing Geared Motor Unit MINMAXMINMAXMINMAXMINMAX TORQUE Nm 2.6648.65.211.47.617.4 SPEED RPM 57250572505725057250 POWER WATTS 45856513085170130250 > Performance Data Fracmo. Denis Ferranti Group Օ Caernarfon Road Bangor Օ Gwynedd LL57 4SP Օ United Kingdom > Denis Ferranti Meters Ltd. Registered in England & Wales. Registered Number: 219880 . Registered Office: Gorddinog, Llanfairfechan, Gwynedd LL33 0HS size="-1">

Open the catalog to page 9

Geared Motor Unit ● Voltage Range: 12 to 180 VDC. ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Output power range 96 to 300 watts. ● Speed Range 57 to 250 RPM. ● Class F insulation. ● Long-life low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. ● Option of 13 motor stack lengths. ● Option of 3 motor Frame sizes. > Performance Features

Open the catalog to page 11

G34PM55 Engineering Drawing Geared Motor Unit MINMAXMINMAX TORQUE Nm 7.1168.619.5 SPEED RPM 4225542255 POWER WATTS 96250115300 > Performance Data Fracmo. Denis Ferranti Group Օ Caernarfon Road Bangor Օ Gwynedd LL57 4SP Օ United Kingdom > Denis Ferranti Meters Ltd. Registered in England & Wales. Registered Number: 219880 . Registered Office: Gorddinog, Llanfairfechan, Gwynedd LL33 0HS size="-1">
