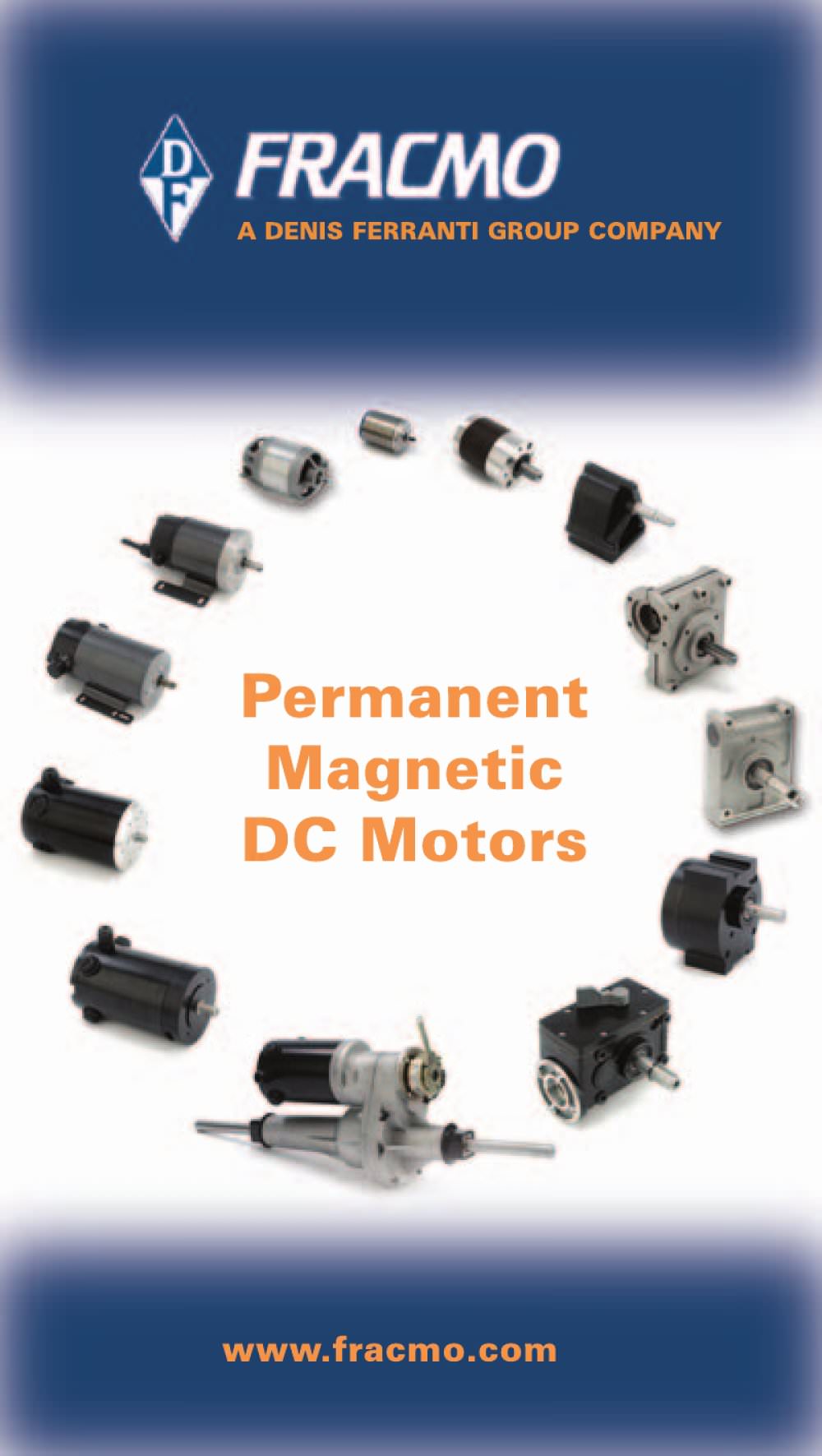

Fracmo Permanent Magnetic DC Motors
1 / 9 PagesView full catalog
Fracmo Permanent Magnetic DC Motors
Product catalog summary
Overview: The document provides technical specifications and performance features of the Permanent Magnetic DC Motors produced by Fracmo, a Denis Ferranti Group Company. These motors are designed for fractional power requirements and can be customized to meet specific customer needs.
Specifications:
- Voltage Range: 12 to 180 VDC
- Output Torque Range: 0.1 to 2 Nm
- Continuous Output Power Range: 50 to 500 Watts
- Rotation: Reversible
- Connections: Flying leads or customer-preferred plugs
- Static Parking Brake: 12/24 Volts with or without hand release
- Speed Range: 1000 to 4500 RPM
- Insulation: Class F
- Brushes: Long-life low-noise brushes with cartridge brush gear for easy maintenance
- Enclosure: Totally enclosed to IP44
Motor Range: The range includes two 4-pole motors (PM62 and PM55 frames) and two 2-pole motors (PM45 and PM36 frames). These motors can be tailored with specific brush gear arrangements, output shaft details, and additional electromagnetic brakes. Encoders can be incorporated for greater control, and the motors can be fitted to Fracmo gearboxes for added flexibility.
Performance Features: The document includes detailed tables showing motor speed versus motor output power for different frames (PM36, PM45, PM55, PM62) under various conditions (5 min, 15 min, 30 min, continuous) assuming a 24 V DC supply. Customers are advised to contact the sales team for other voltage ranges.
Customization Options: Customers can specify shaft details, face or flange mounting, foot options, and supply lead configurations. The motors are designed to be foot and/or face mounted, with optional brakes available.
Contact Information: For further information, customers are encouraged to contact the Fracmo Sales Team.
See more
Catalog excerpts
Design Features ● Voltage Range: 12 to 180 VDC. > Motor Range ● Output Torque Range: 0.1 to 2 Nm. ● Continuous Output Power Range: 50 to 500 Watts. ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Speed Range 1000 to 4500 RPM. ● Class F insulation. ● Long-life low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. > Performance Features
